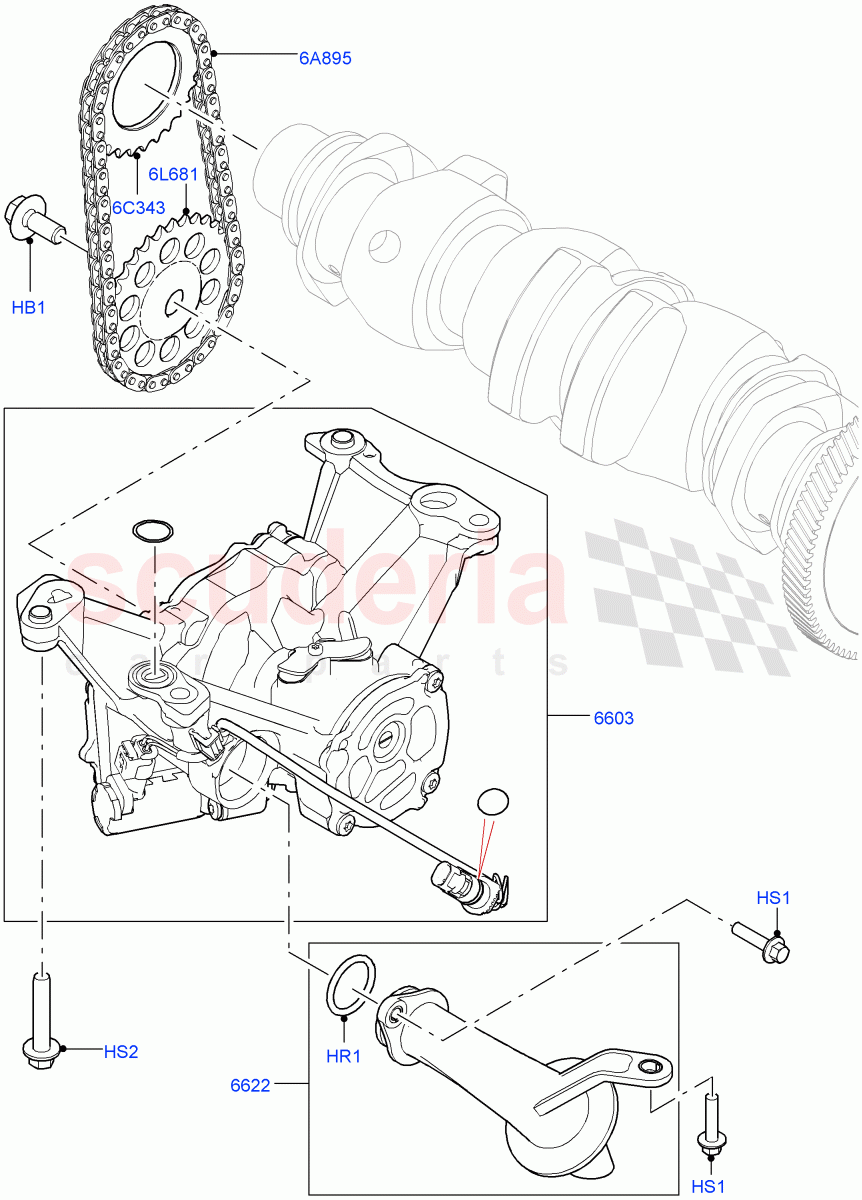

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR139801	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174276	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139790	PUMP - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139719	TUBE - OIL PUMP INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139763	CHAIN - OIL PUMP DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125579	SPROCKET - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139797	SPROCKET - OIL PUMP DRIVE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR139801	BOLT - FLANGED HEX.	LR139801 BOLT - FLANGED HEX. M10 x 18MM	-	1	Enquire
HR1	LR174276	O-Ring	LR174276 O-Ring	-	1	Enquire
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM	-	2	Enquire
HS2	LR073649	SCREW	LR073649 SCREW M8 x 40MM	-	4	Enquire
6A895	LR139763	CHAIN - OIL PUMP DRIVE	LR139763 CHAIN - OIL PUMP DRIVE	-	1	Enquire
6C343	LR125579	SPROCKET - CRANKSHAFT	LR125579 SPROCKET - CRANKSHAFT Crankshaft	-	1	Enquire
6L681	LR139797	SPROCKET - OIL PUMP DRIVE	LR139797 SPROCKET - OIL PUMP DRIVE Oil Pump	-	1	Enquire
6603	LR139790	PUMP - OIL	LR139790 PUMP - OIL	-	1	Enquire
6622	LR139719	TUBE - OIL PUMP INLET	LR139719 TUBE - OIL PUMP INLET	-	1	Enquire
