Oil Cooler And Filter (2.0L Aj21D4 Diesel Mid, Halewood (Uk)) ((V) Frommh000001)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Oil Cooler And Filter (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR170968 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073736 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073673 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073669 KIT - ELEMENT & GASKET - OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR135718 SWITCH - OIL PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR073868 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073869 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR073870 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR139756 OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR073670 COVER - OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR134525 OIL FILTER - ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
LR125375 GASKET Enquire To Order
View All

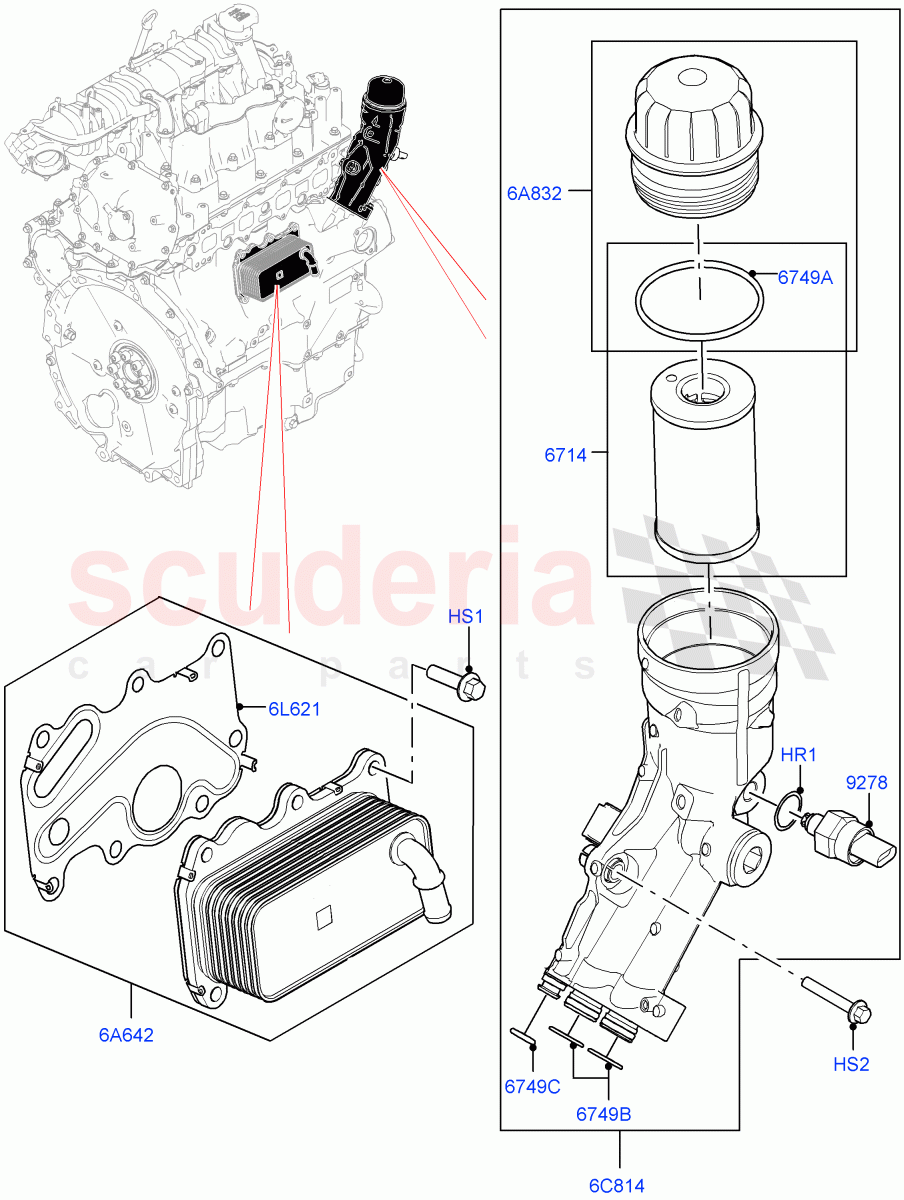

Oil Cooler And Filter (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR170968
O-RING
Sensor - Oil Pressure / From: MH000001 		- 1 Enquire
HS1 LR073736
SCREW
M8 X 30MM, Oil Cooler / From: MH000001 		- 7 Enquire
HS2 LR073673
SCREW
M6 X 40MM, Oil Filter Housing / From: MH000001 		- 3 Enquire
6A642 LR139756
OIL COOLER
From: MH000001 		- 1 Enquire
6A832 LR073670
COVER - OIL FILTER
Element And Seal / From: MH000001 		- 1 Enquire
6C814 LR134525
OIL FILTER - ASSEMBLY
From: MH000001 		- 1 Enquire
6L621 LR125375
GASKET
Oil Cooler / From: MH000001 		- 1 Enquire
6714 LR073669
KIT - ELEMENT & GASKET - OIL FILTER
Element And Seal / From: MH000001 		- 1 Enquire
6749A LR073868
O-RING
Cover / From: MH000001 		- 1 Enquire
6749B LR073869
SEAL
Oil Filter Housing / From: MH000001 		- 4 Enquire
6749C LR073870
SEAL
Drain / From: MH000001 		- 1 Enquire
9278 LR135718
SWITCH - OIL PRESSURE
Sensor / From: MH000001 		- 1 Enquire
