Name: Rear Seat Pads/Valances & Heating (Itatiaia (Brazil))
Rating: 5.0 (1 reviews)

Rear Seat Pads/Valances & Heating (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Rear Seat Pads/Valances & Heating (Itatiaia (Brazil))

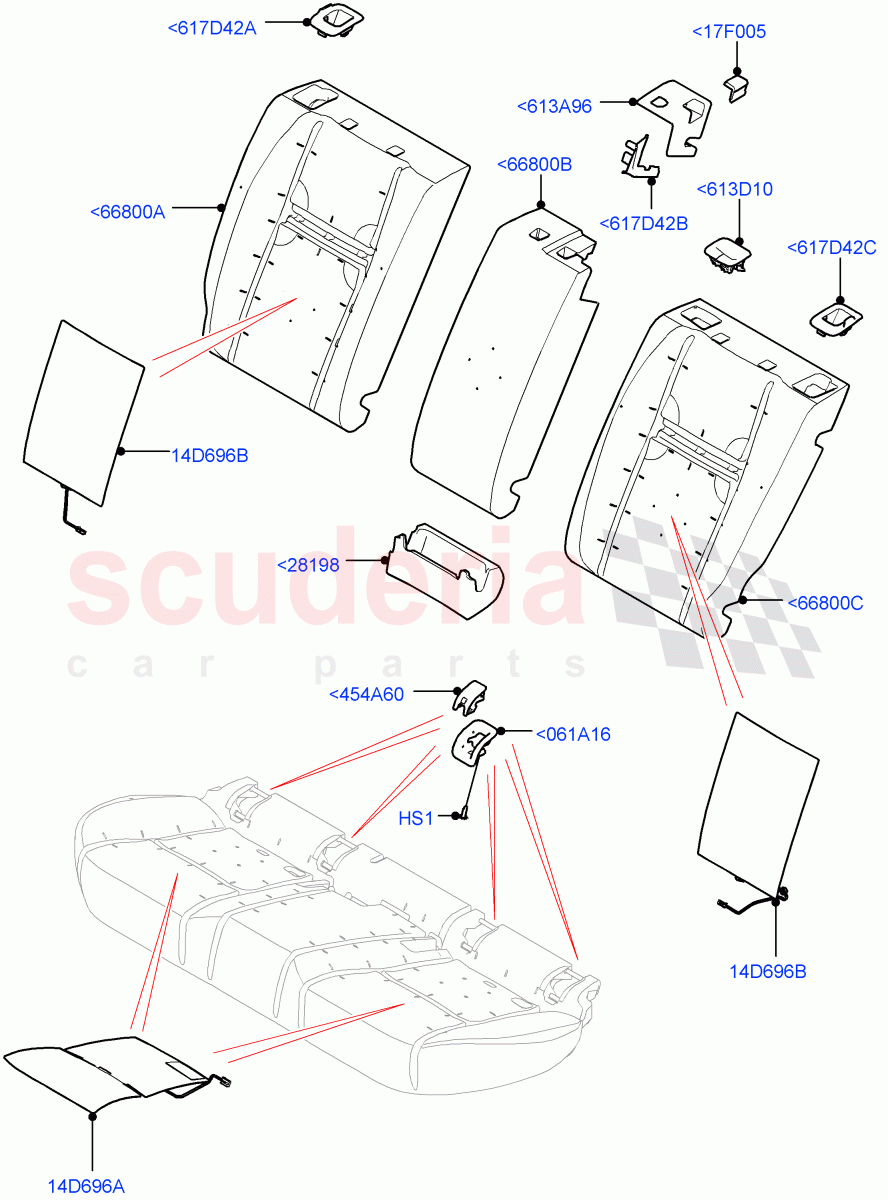

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR066535	SCREW	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134908	PAD - ARMREST	$207.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122366	BEZEL - ISOFIX	$21.42	To Order
	LR115262	BEZEL - ISOFIX	$24.56	To Order
	LR122367	BEZEL - ISOFIX	$21.42	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR134905	BUTTON - SEAT RECLINE SWITCH	$28.07	To Order
	LR134904	BUTTON - SEAT RECLINE SWITCH	$28.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122364	CAP - ISOFIX	$21.42	To Order
	LR115264	CAP - ISOFIX	$24.56	To Order
	LR122365	CAP - ISOFIX	$21.42	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR134751	BEZEL - SEAT BACK LATCH HANDLE	$34.01	To Order
	LR134752	BEZEL - SEAT BACK LATCH HANDLE	$34.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134748	GUIDE - REAR SEAT BELT	$14.07	To Order
	LR134749	GUIDE - REAR SEAT BELT	$14.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR131232	PAD - REAR SEAT BACK	$295.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115292	PAD - REAR SEAT BACK	$172.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131235	PAD - REAR SEAT BACK	$172.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136847	ELEMENT - REAR SEAT CUSHION HEATING	$157.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115270	ELEMENT - REAR SEAT BACK HEATING	$175.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136502	BEZEL - SEAT BACK LOCKING MECHANISM	$33.36	To Order
	LR136503	BEZEL - SEAT BACK LATCH HANDLE	$33.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115293	BEZEL - LATCH	$87.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136505	BEZEL - SEAT BACK LATCH HANDLE	$33.36	To Order
	LR136506	BEZEL - SEAT BACK LATCH HANDLE	$33.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<17F005	LR134905	BUTTON - SEAT RECLINE SWITCH	LR134905 BUTTON - SEAT RECLINE SWITCH Cloud	$28.07	1
<17F005	LR134904	BUTTON - SEAT RECLINE SWITCH	LR134904 BUTTON - SEAT RECLINE SWITCH Ebony/Eclipse, With 40/20/40 Split Fold Rear Seat	$28.07	1
<061A16	LR122366	BEZEL - ISOFIX	LR122366 BEZEL - ISOFIX Cloud, Less Head Impact Crash Criteria	$21.42	4
<061A16	LR115262	BEZEL - ISOFIX	LR115262 BEZEL - ISOFIX Deep Garnet, Less Head Impact Crash Criteria	$24.56	4
<061A16	LR122367	BEZEL - ISOFIX	LR122367 BEZEL - ISOFIX Cloud, With Head Impact Crash Criteria	$21.42	4
<061A16	LR118149	BEZEL - ISOFIX	LR118149 BEZEL - ISOFIX Ebony Black/Ebony Black Interior, With Head Impact Crash Criteria	$109.19	4
<454A60	LR122364	CAP - ISOFIX	LR122364 CAP - ISOFIX Cloud, Less Head Impact Crash Criteria	$21.42	4
<454A60	LR115264	CAP - ISOFIX	LR115264 CAP - ISOFIX Deep Garnet, Less Head Impact Crash Criteria	$24.56	4
<454A60	LR122365	CAP - ISOFIX	LR122365 CAP - ISOFIX Cloud, With Head Impact Crash Criteria	$21.42	4
<454A60	LR118148	CAP - ISOFIX	LR118148 CAP - ISOFIX Ebony Black/Ebony Black Interior, With Head Impact Crash Criteria	$23.42	4
<613A96	LR134751	BEZEL - SEAT BACK LATCH HANDLE	LR134751 BEZEL - SEAT BACK LATCH HANDLE Cloud	$34.01	1
<613A96	LR134752	BEZEL - SEAT BACK LATCH HANDLE	LR134752 BEZEL - SEAT BACK LATCH HANDLE Eclipse	$34.01	1
<613D10	LR134748	GUIDE - REAR SEAT BELT	LR134748 GUIDE - REAR SEAT BELT Cloud	$14.07	1
<613D10	LR134749	GUIDE - REAR SEAT BELT IN STOCK	LR134749 GUIDE - REAR SEAT BELT Dapple Grey/Ebony, With 40/20/40 Split Fold Rear Seat IN STOCK	$14.07	1
<617D42A	LR136502	BEZEL - SEAT BACK LOCKING MECHANISM	LR136502 BEZEL - SEAT BACK LOCKING MECHANISM Cloud / RH	$33.36	1
<617D42A	LR136503	BEZEL - SEAT BACK LATCH HANDLE	LR136503 BEZEL - SEAT BACK LATCH HANDLE Ebony/Eclipse / RH	$33.36	1
<617D42B	LR115293	BEZEL - LATCH	LR115293 BEZEL - LATCH With Rear Seat Centre Armrest / Centre	$87.54	1
<617D42C	LR136505	BEZEL - SEAT BACK LATCH HANDLE	LR136505 BEZEL - SEAT BACK LATCH HANDLE Cloud / LH	$33.36	1
<617D42C	LR136506	BEZEL - SEAT BACK LATCH HANDLE	LR136506 BEZEL - SEAT BACK LATCH HANDLE Eclipse / LH	$33.36	1
<28198	LR134908	PAD - ARMREST	LR134908 PAD - ARMREST With Rear Seat Centre Armrest	$207.48	1
<66800A	LR131232	PAD - REAR SEAT BACK	LR131232 PAD - REAR SEAT BACK RH	$295.01	1
<66800B	LR115292	PAD - REAR SEAT BACK	LR115292 PAD - REAR SEAT BACK Less Armrest / Centre	$172.24	1
<66800C	LR131235	PAD - REAR SEAT BACK	LR131235 PAD - REAR SEAT BACK LH	$172.06	1
HS1	LR066535	SCREW	LR066535 SCREW 4 X 12MM, Bezel	$2.53	4
14D696A	LR136847	ELEMENT - REAR SEAT CUSHION HEATING	LR136847 ELEMENT - REAR SEAT CUSHION HEATING Heated Rear Seats / For Seat Cushion	$157.19	2
14D696B	LR115270	ELEMENT - REAR SEAT BACK HEATING	LR115270 ELEMENT - REAR SEAT BACK HEATING Heated Rear Seats / For Seat Back	$175.38	2
