Front Seat Back (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Front Seat Back (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR078208 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR114979 CLIP Enquire To Order
LR133993 CLIP Enquire To Order
LR133993 CLIP Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR118864 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR122837 BEZEL - SCREEN MOULDING Enquire To Order
LR122838 BEZEL - SCREEN MOULDING Enquire To Order
Photo Part No Description Price (each) Stock
LR108503 FRAME - SEAT Enquire To Order
LR108502 FRAME - SEAT Enquire To Order
LR108501 FRAME - SEAT Enquire To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR124330 HOLDER - IPAD Enquire To Order
LR124331 HOLDER - IPAD Enquire To Order
Photo Part No Description Price (each) Stock
LR058814 SUPPORT - FRONT SEAT SQUAB Enquire To Order
Photo Part No Description Price (each) Stock
LR154977 MOTOR - SEAT ADJUSTER Enquire To Order
Photo Part No Description Price (each) Stock
LR124424 SUPPORT - SEAT BACK - LUMBAR Enquire To Order
LR133992 SUPPORT - SEAT BACK - LUMBAR Enquire To Order
Photo Part No Description Price (each) Stock
LR074206 SLEEVE - HEADREST GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
LR084717 SUPPORT - SEAT BACK - LUMBAR Enquire To Order
Photo Part No Description Price (each) Stock
LR084718 SUPPORT - SEAT BACK - LUMBAR Enquire To Order
Photo Part No Description Price (each) Stock
LR124422 SUPPORT - SEAT BACK - LUMBAR Enquire To Order
Photo Part No Description Price (each) Stock
LR124423 SUPPORT - SEAT BACK - LUMBAR Enquire To Order
View All

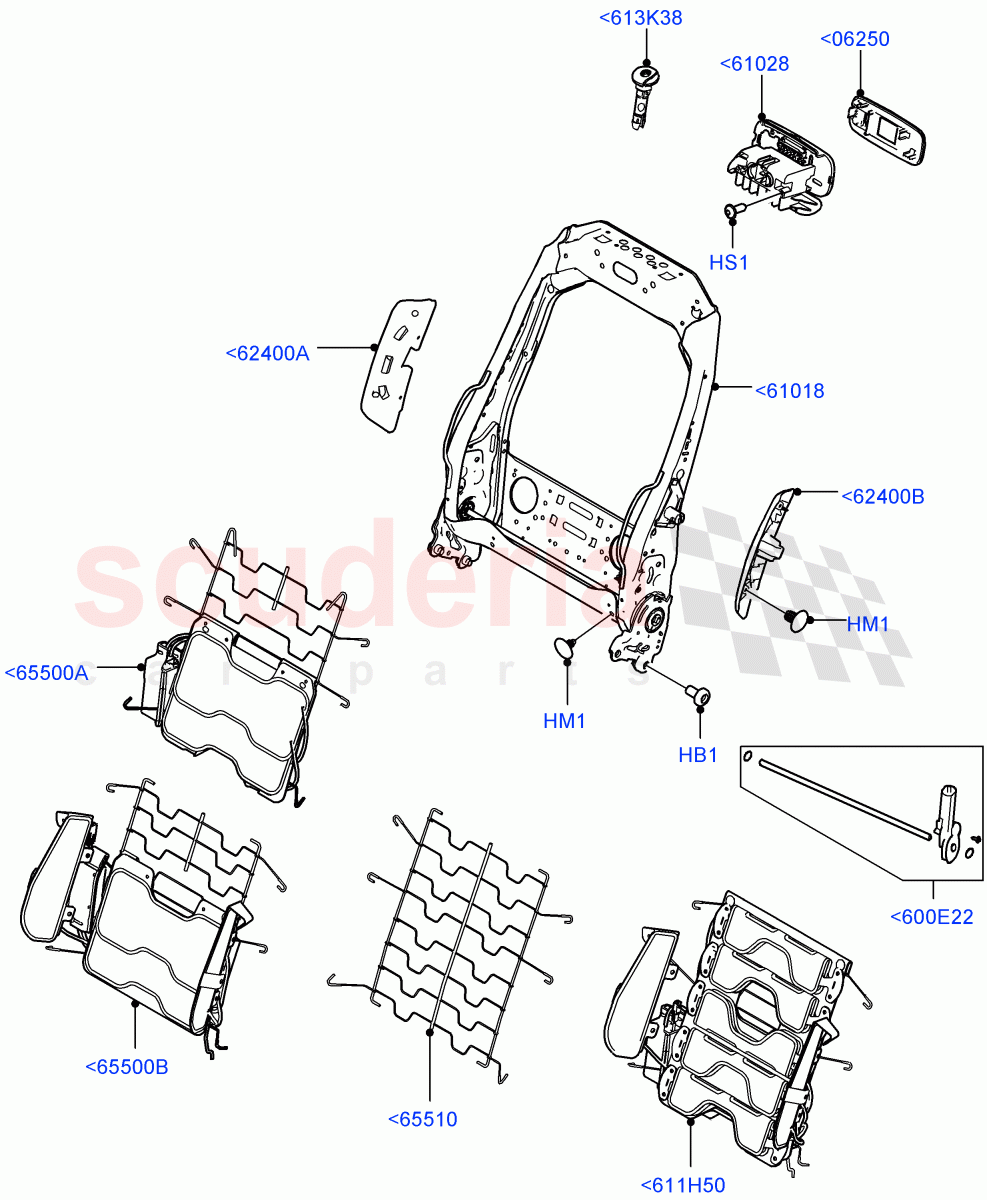

Front Seat Back (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<600E22 LR154977
MOTOR - SEAT ADJUSTER
RH/LH, Squab Recliner, Square Shaft / To: LH099054 		- 2 Enquire
<611H50 LR124424
SUPPORT - SEAT BACK - LUMBAR
Front Seat Power Bolster, Seat Lumbar - 4 Way, Seat Massage Front / RH/LH / To: LH033076 		- 2 Enquire
<611H50 LR133992
SUPPORT - SEAT BACK - LUMBAR
Front Seat Power Bolster, Seat Lumbar - 4 Way, Seat Massage Front / RH/LH / From: LH033077 		- 2 Enquire
<613K38 LR074206
SLEEVE - HEADREST GUIDE
Headrest 		- 4 Enquire
<06250 LR122837
BEZEL - SCREEN MOULDING
Cloud, RSE System - Intergrated Tablet 		- 2 Enquire
<06250 LR122838
BEZEL - SCREEN MOULDING
Eclipse, RSE System - Intergrated Tablet 		- 2 Enquire
<61018 LR108503
FRAME - SEAT
Seat Squab Manual Recline / RH, Please Consider Repair Using Repair Component LR154977 / To: LH033466 		- 1 Enquire
<61018 LR108502
FRAME - SEAT
Less Seat Adjuster, Seat Squab Power Recline / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / To: LH033466 		- 2 Enquire
<61018 LR108501
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, Seat Squab Power Recline / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / To: LH033466 		- 2 Enquire
<61018 LR108500
FRAME - SEAT
Seat Squab Manual Recline / LH, Please Consider Repair Using Repair Component LR154977 / To: LH033466 		- 1 Enquire
<61018 LR133475
FRAME - SEAT
Less Seat Adjuster, Seat Squab Power Recline / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / From: LH033467 / To: LH099054 		- 2 Enquire
<61018 LR133995
FRAME - SEAT
Seat Squab Manual Recline / LH, Please Consider Repair Using Repair Component LR154977 / From: LH033467 / To: LH098955 		- 1 Enquire
<61018 LR133994
FRAME - SEAT
Seat Squab Manual Recline / RH, Please Consider Repair Using Repair Component LR154977 / From: LH033467 / To: LH099054 		- 1 Enquire
<61018 LR133481
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, Seat Squab Power Recline / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / From: LH033467 / To: LH099054 		- 2 Enquire
<61018 LR140456
FRAME - SEAT
Seat Squab Manual Recline / LH / From: LH098956 		- 1 Enquire
<61018 LR140455
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, Seat Squab Power Recline / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / From: LH099055 / To: LH999999 		- 2 Enquire
<61018 LR140455
FRAME - SEAT
Electric Front Seat Adj Drv Memory, Less Front Seat Bolster, Seat Squab Power Recline / For Drivers Side, Includes Seat Motors, Please Consider Repair Using Repair Component LR154977 / From: MH000001 		- 1 Enquire
<61018 LR140455
FRAME - SEAT
Electric Front Seat Adj Drv Memory, Front Seat Power Bolster, Seat Squab Power Recline / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / From: MH000001 		- 2 Enquire
<61018 LR140454
FRAME - SEAT
Less Seat Adjuster, Seat Squab Power Recline / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / From: LH099055 		- 2 Enquire
<61018 LR140454
FRAME - SEAT
Electric Front Seat Adj Drv Memory, Less Front Seat Bolster, Seat Squab Power Recline / For Passengers Side, Includes Seat Motors, Please Consider Repair Using Repair Component LR154977 / From: MH000001 		- 1 Enquire
<61018 LR140453
FRAME - SEAT
Seat Squab Manual Recline / RH / From: LH099055 		- 1 Enquire
<61028 LR124330
HOLDER - IPAD
Cloud, RSE System - Intergrated Tablet 		- 2 Enquire
<61028 LR124331
HOLDER - IPAD
Deep Garnet, RSE System - Intergrated Tablet 		- 2 Enquire
<62400A LR084717
SUPPORT - SEAT BACK - LUMBAR
RH 		- 2 Enquire
<62400B LR084718
SUPPORT - SEAT BACK - LUMBAR
LH 		- 2 Enquire
<65500A LR124422
SUPPORT - SEAT BACK - LUMBAR
Less Front Seat Bolster, Less Front Seat Massage, Seat Lumbar - 4 Way / RH/LH 		- 2 Enquire
<65500B LR124423
SUPPORT - SEAT BACK - LUMBAR
Front Seat Power Bolster, Less Front Seat Massage, Seat Lumbar - 4 Way / RH/LH 		- 2 Enquire
<65510 LR058814
SUPPORT - FRONT SEAT SQUAB
Less Front Seat Bolster, Less Front Seat Massage, Less Seat Lumbar / RH/LH 		- 2 Enquire
HB1 LR078208
BOLT
Squab To Cushion 		- 8 Enquire
HM1 LR114979
CLIP
Less Front Seat Bolster, Less Front Seat Massage, Seat Lumbar - 4 Way / Bottom / To: LH016841 		- 4 Enquire
HM1 LR133993
CLIP
Less Front Seat Bolster, Less Front Seat Massage, Seat Lumbar - 4 Way / Bottom / From: LH016842 		- 4 Enquire
HM1 LR133993
CLIP
Front Seat Power Bolster, Seat Lumbar - 4 Way / Side / From: LH016842 		- 20 Enquire
HM1 LR114979
CLIP
Front Seat Power Bolster, Seat Lumbar - 4 Way / Side / To: LH016841 		- 20 Enquire
HS1 LR118864
SCREW
RSE System - Intergrated Tablet / M6 X 16 		- 6 Enquire
