Dash Panel And Front Fenders (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

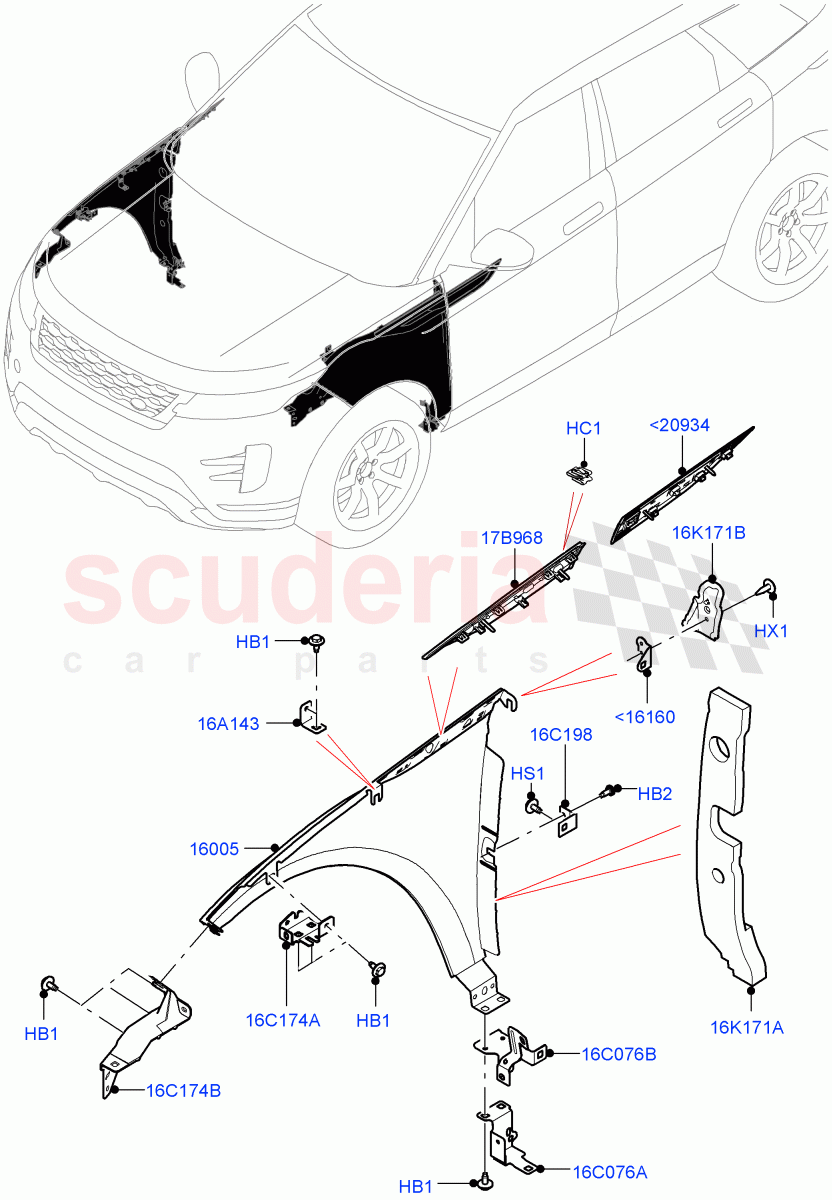

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Dash Panel And Front Fenders (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127902	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121917	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117306	FENDER - FRONT	Enquire	To Order
	LR117307	FENDER - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127925	BRACKET - MOULDING MOUNTING	Enquire	To Order
	LR127926	BRACKET - MOULDING MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114458	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR114459	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR114460	MOULDING - DOOR OUTSIDE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117311	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117314	BRACKET - FENDER - FRONT	Enquire	To Order
	LR117315	BRACKET - FENDER - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114469	GRILLE - FENDER - FRONT	Enquire	To Order
	LR114470	GRILLE - FENDER - FRONT	Enquire	To Order
	LR114471	GRILLE - FENDER - FRONT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117317	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR117318	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127929	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR127930	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117308	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR117309	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR135577	BRACKET - FENDER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117312	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR117313	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR126254	BRACKET - FENDER MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114165	INSULATOR - SOUND - BODY	Enquire	To Order
	LR114166	INSULATOR - SOUND - BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114167	INSULATOR - FENDER APRON	Enquire	To Order
	LR114168	INSULATOR - FENDER APRON	Enquire	To Order
	LR137450	INSULATOR - FENDER APRON	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<16160	LR127925	BRACKET - MOULDING MOUNTING	LR127925 BRACKET - MOULDING MOUNTING RH	-	1	Enquire
<16160	LR127926	BRACKET - MOULDING MOUNTING	LR127926 BRACKET - MOULDING MOUNTING LH	-	1	Enquire
<20934	LR114458	MOULDING - DOOR OUTSIDE	LR114458 MOULDING - DOOR OUTSIDE Front Fender Gill-Atlas / RH	-	1	Enquire
<20934	LR114459	MOULDING - DOOR OUTSIDE	LR114459 MOULDING - DOOR OUTSIDE Front Fender Grill - Brunel Copper / RH	-	1	Enquire
<20934	LR114460	MOULDING - DOOR OUTSIDE	LR114460 MOULDING - DOOR OUTSIDE Frt Fender Gill-Gloss Black / RH	-	1	Enquire
<20934	LR114461	MOULDING - DOOR OUTSIDE	LR114461 MOULDING - DOOR OUTSIDE Front Fender Gill-Atlas / LH	-	1	Enquire
<20934	LR114462	MOULDING - DOOR OUTSIDE	LR114462 MOULDING - DOOR OUTSIDE Front Fender Grill - Brunel Copper / LH	-	1	Enquire
<20934	LR114463	MOULDING - DOOR OUTSIDE	LR114463 MOULDING - DOOR OUTSIDE Frt Fender Gill-Gloss Black / LH	-	1	Enquire
HB1	LR033409	BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD	LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD M6 X 13.5MM	-	24	Enquire
HB2	LR127902	BOLT	LR127902 BOLT M8 X 15.5	-	1	Enquire
HC1	LR121917	CLIP	LR121917 CLIP Front Fender Grill - Brunel Copper	-	7	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM	-	2	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin	-	2	Enquire
16A143	LR117311	BRACKET - FENDER MOUNTING	LR117311 BRACKET - FENDER MOUNTING RH/LH, Support	-	2	Enquire
16C076A	LR117317	BRACKET - FENDER MOUNTING	LR117317 BRACKET - FENDER MOUNTING RH, Upper	-	1	Enquire
16C076A	LR117318	BRACKET - FENDER MOUNTING	LR117318 BRACKET - FENDER MOUNTING LH, Upper	-	1	Enquire
16C076B	LR127929	BRACKET - FENDER MOUNTING	LR127929 BRACKET - FENDER MOUNTING RH, Lower / From: LH000001	-	1	Enquire
16C076B	LR127930	BRACKET - FENDER MOUNTING	LR127930 BRACKET - FENDER MOUNTING LH, Lower / From: LH000001	-	1	Enquire
16C174A	LR117308	BRACKET - FENDER MOUNTING	LR117308 BRACKET - FENDER MOUNTING RH, Inner, Upper	-	1	Enquire
16C174A	LR117309	BRACKET - FENDER MOUNTING	LR117309 BRACKET - FENDER MOUNTING LH, Inner, Upper / To: LH102735	-	1	Enquire
16C174A	LR135577	BRACKET - FENDER MOUNTING	LR135577 BRACKET - FENDER MOUNTING LH, Category A, Inner, Upper / From: LH102736	-	1	Enquire
16C174B	LR117312	BRACKET - FENDER MOUNTING	LR117312 BRACKET - FENDER MOUNTING RH, Front / To: KH999999	-	1	Enquire
16C174B	LR117313	BRACKET - FENDER MOUNTING	LR117313 BRACKET - FENDER MOUNTING LH, Front / To: KH999999	-	1	Enquire
16C174B	LR126254	BRACKET - FENDER MOUNTING	LR126254 BRACKET - FENDER MOUNTING RH, Front / From: LH000001	-	1	Enquire
16C174B	LR126255	BRACKET - FENDER MOUNTING	LR126255 BRACKET - FENDER MOUNTING LH, Front / From: LH000001	-	1	Enquire
16C198	LR117314	BRACKET - FENDER - FRONT	LR117314 BRACKET - FENDER - FRONT RH, Middle	-	1	Enquire
16C198	LR117315	BRACKET - FENDER - FRONT	LR117315 BRACKET - FENDER - FRONT LH, Middle	-	1	Enquire
16K171A	LR114165	INSULATOR - SOUND - BODY	LR114165 INSULATOR - SOUND - BODY RH, Lower	-	2	Enquire
16K171A	LR114166	INSULATOR - SOUND - BODY	LR114166 INSULATOR - SOUND - BODY LH, Lower	-	1	Enquire
16K171B	LR114167	INSULATOR - FENDER APRON	LR114167 INSULATOR - FENDER APRON RH, Upper / To: LH023981	-	1	Enquire
16K171B	LR114168	INSULATOR - FENDER APRON	LR114168 INSULATOR - FENDER APRON LH, Upper	-	1	Enquire
16K171B	LR137450	INSULATOR - FENDER APRON	LR137450 INSULATOR - FENDER APRON RH, Upper / From: LH023982	-	1	Enquire
17B968	LR114469	GRILLE - FENDER - FRONT	LR114469 GRILLE - FENDER - FRONT Front Fender Gill-Atlas / RH	-	1	Enquire
17B968	LR114470	GRILLE - FENDER - FRONT	LR114470 GRILLE - FENDER - FRONT Front Fender Grill - Brunel Copper / RH	-	1	Enquire
17B968	LR114471	GRILLE - FENDER - FRONT	LR114471 GRILLE - FENDER - FRONT Frt Fender Gill-Gloss Black / RH	-	1	Enquire
17B968	LR114472	GRILLE - FENDER - FRONT	LR114472 GRILLE - FENDER - FRONT Front Fender Gill-Atlas / LH	-	1	Enquire
17B968	LR114473	GRILLE - FENDER - FRONT	LR114473 GRILLE - FENDER - FRONT Front Fender Grill - Brunel Copper / LH	-	1	Enquire
17B968	LR114474	GRILLE - FENDER - FRONT	LR114474 GRILLE - FENDER - FRONT Frt Fender Gill-Gloss Black / LH	-	1	Enquire
16005	LR117306	FENDER - FRONT	LR117306 FENDER - FRONT RH	-	1	Enquire
16005	LR117307	FENDER - FRONT	LR117307 FENDER - FRONT LH	-	1	Enquire
