Find Your Part

Front Door Lock Controls (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

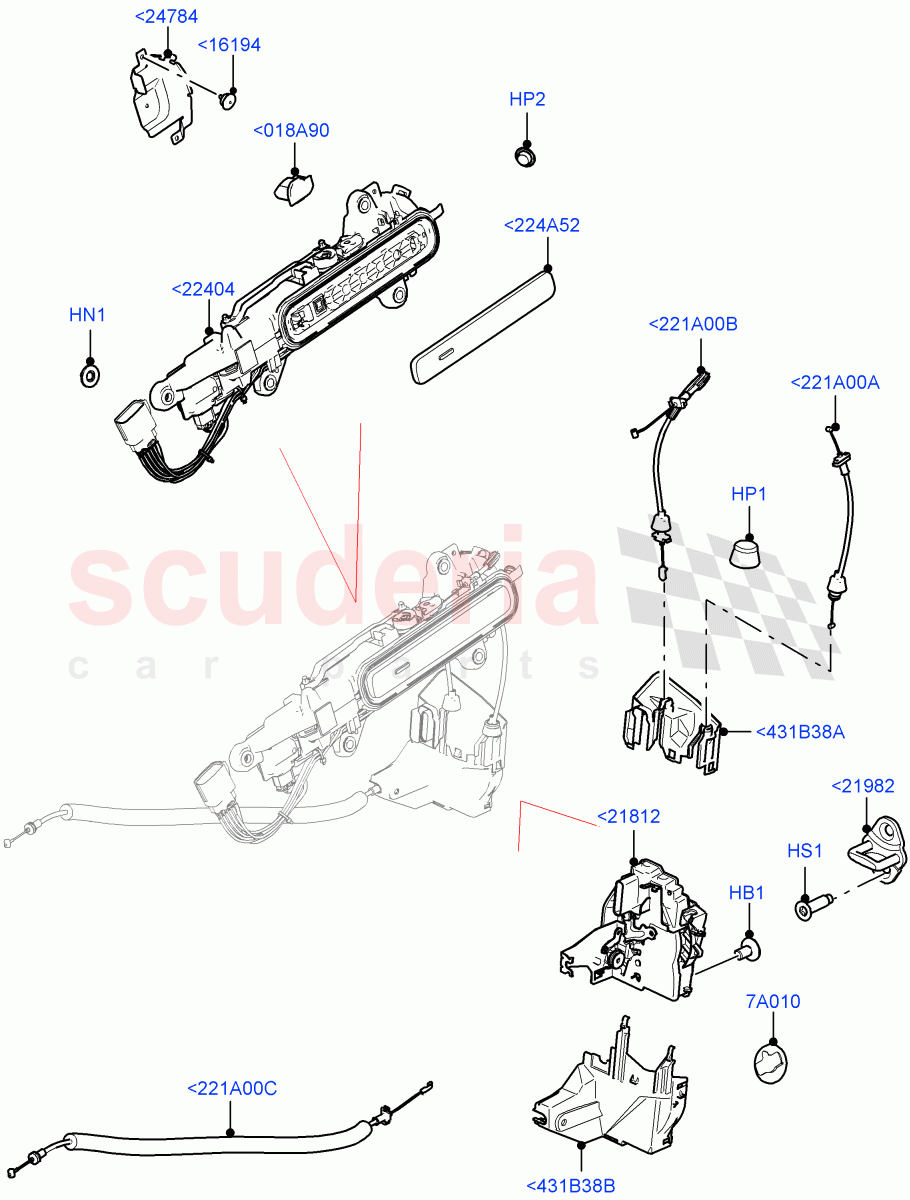

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Front Door Lock Controls (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038526	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058114	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000804	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042467	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059989	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR172460	RIVET - BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070434	LATCH - FRONT DOOR	Enquire	To Order
	LR070435	LATCH - FRONT DOOR	Enquire	To Order
	LR070436	LATCH - FRONT DOOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR059010	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115198	HANDLE - DOOR - OUTER	Enquire	To Order
	LR115199	HANDLE - DOOR - OUTER	Enquire	To Order
	LR115192	HANDLE - DOOR - OUTER	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR124746	SHIELD - DOOR LOCK	Enquire	To Order
	LR124747	SHIELD - DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093368	ESCUTCHEON - DOOR LOCK	Enquire	To Order
	LR093369	ESCUTCHEON - DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115184	HANDLE - COVER	Enquire	To Order
	LR115185	HANDLE - COVER	Enquire	To Order
	LR115186	HANDLE - COVER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR124317	CABLE - DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124360	CABLE - DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124394	CABLE - DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070443	COVER - LATCH	Enquire	To Order
	LR070459	COVER - LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070444	COVER - LATCH	Enquire	To Order
	LR070460	COVER - LATCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<018A90	LR093368	ESCUTCHEON - DOOR LOCK	LR093368 ESCUTCHEON - DOOR LOCK LHD / RH	-	1	Enquire
<018A90	LR093369	ESCUTCHEON - DOOR LOCK	LR093369 ESCUTCHEON - DOOR LOCK RHD / LH	-	1	Enquire
<221A00A	LR124317	CABLE - DOOR LATCH	LR124317 CABLE - DOOR LATCH RH/LH	-	2	Enquire
<221A00B	LR124360	CABLE - DOOR LATCH	LR124360 CABLE - DOOR LATCH Outside Door Release Handle To Latch, RH/LH	-	2	Enquire
<221A00C	LR124394	CABLE - DOOR LATCH	LR124394 CABLE - DOOR LATCH Handle, Inner, RH/LH	-	2	Enquire
<224A52	LR115184	HANDLE - COVER	LR115184 HANDLE - COVER Keyless Entry/Start - Passive / RH, Primed / To: LH091382	-	1	Enquire
<224A52	LR115185	HANDLE - COVER	LR115185 HANDLE - COVER With Keyless Start / RH, Primed	-	1	Enquire
<224A52	LR115186	HANDLE - COVER	LR115186 HANDLE - COVER Keyless Entry/Start - Passive / LH, Primed / To: LH091382	-	1	Enquire
<224A52	LR115187	HANDLE - COVER	LR115187 HANDLE - COVER With Keyless Start / LH, Primed	-	1	Enquire
<224A52	LR135272	HANDLE - COVER	LR135272 HANDLE - COVER Keyless Entry/Start - Passive / RH, Primed / From: LH091383	-	1	Enquire
<224A52	LR135275	HANDLE - COVER	LR135275 HANDLE - COVER Keyless Entry/Start - Passive / LH, Primed / From: LH091383	-	1	Enquire
<431B38A	LR070443	COVER - LATCH	LR070443 COVER - LATCH RH, Upper	-	1	Enquire
<431B38A	LR070459	COVER - LATCH	LR070459 COVER - LATCH LH, Upper	-	1	Enquire
<431B38B	LR070444	COVER - LATCH	LR070444 COVER - LATCH RH, Lower	-	1	Enquire
<431B38B	LR070460	COVER - LATCH	LR070460 COVER - LATCH LH, Lower	-	1	Enquire
<16194	LR172460	RIVET - BLIND	LR172460 RIVET - BLIND 4.8 x 15MM, Shield	-	2	Enquire
<21812	LR070434	LATCH - FRONT DOOR	LR070434 LATCH - FRONT DOOR Double Locking Power Lock Latch, RHD / RH, Inner	-	1	Enquire
<21812	LR070435	LATCH - FRONT DOOR	LR070435 LATCH - FRONT DOOR Central Locking Power Lock Latch, RHD / RH, Inner	-	1	Enquire
<21812	LR070436	LATCH - FRONT DOOR	LR070436 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD / RH, Inner	-	1	Enquire
<21812	LR070437	LATCH - FRONT DOOR	LR070437 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD / RH, Inner	-	1	Enquire
<21812	LR070438	LATCH - FRONT DOOR	LR070438 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD / LH, Inner	-	1	Enquire
<21812	LR070440	LATCH - FRONT DOOR	LR070440 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD / LH, Inner	-	1	Enquire
<21812	LR070441	LATCH - FRONT DOOR	LR070441 LATCH - FRONT DOOR Double Locking Power Lock Latch, RHD / LH, Inner	-	1	Enquire
<21812	LR070442	LATCH - FRONT DOOR	LR070442 LATCH - FRONT DOOR Central Locking Power Lock Latch, RHD / LH, Inner	-	1	Enquire
<21982	LR059010	STRIKER - DOOR LOCKING MECHANISM	LR059010 STRIKER - DOOR LOCKING MECHANISM RH/LH	-	2	Enquire
<22404	LR115198	HANDLE - DOOR - OUTER	LR115198 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive / RH / To: LH033466	-	1	Enquire
<22404	LR115199	HANDLE - DOOR - OUTER	LR115199 HANDLE - DOOR - OUTER With Keyless Start / RH / To: LH033466	-	1	Enquire
<22404	LR115192	HANDLE - DOOR - OUTER	LR115192 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive / LH / To: LH033466	-	1	Enquire
<22404	LR115193	HANDLE - DOOR - OUTER	LR115193 HANDLE - DOOR - OUTER With Keyless Start / LH / To: LH033466	-	1	Enquire
<22404	LR135304	HANDLE - DOOR - OUTER	LR135304 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive / RH / From: LH033467 / To: LH106451	-	1	Enquire
<22404	LR135556	HANDLE - DOOR - OUTER	LR135556 HANDLE - DOOR - OUTER With Keyless Start / RH / From: LH033467 / To: LH106451	-	1	Enquire
<22404	LR135311	HANDLE - DOOR - OUTER	LR135311 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive / LH / From: LH033467 / To: LH106451	-	1	Enquire
<22404	LR135557	HANDLE - DOOR - OUTER	LR135557 HANDLE - DOOR - OUTER With Keyless Start / LH / From: LH033467 / To: LH106451	-	1	Enquire
<22404	LR144884	HANDLE - DOOR - OUTER	LR144884 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive / RH / From: LH106452	-	1	Enquire
<22404	LR144885	HANDLE - DOOR - OUTER	LR144885 HANDLE - DOOR - OUTER With Keyless Start / RH / From: LH106452	-	1	Enquire
<22404	LR144889	HANDLE - DOOR - OUTER	LR144889 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive / LH / From: LH106452	-	1	Enquire
<22404	LR144890	HANDLE - DOOR - OUTER	LR144890 HANDLE - DOOR - OUTER With Keyless Start / LH / From: LH106452	-	1	Enquire
<24784	LR124746	SHIELD - DOOR LOCK	LR124746 SHIELD - DOOR LOCK Double Locking Power Lock Latch, Keyless Entry/Start - Passive, RHD / RH	-	1	Enquire
<24784	LR124747	SHIELD - DOOR LOCK	LR124747 SHIELD - DOOR LOCK Double Locking Power Lock Latch, Keyless Entry/Start - Passive, LHD / LH	-	1	Enquire
HB1	LR038526	BOLT	LR038526 BOLT M6 X 11MM, On Door Latch	-	6	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer	-	2	Enquire
HP1	LR058114	PLUG - BLANKING	LR058114 PLUG - BLANKING LHD / Seal	-	2	Enquire
HP2	LR000804	PLUG	LR000804 PLUG 10 X 0.75 X 1.0, Access Hole Cover, On Door, RH/LH	-	2	Enquire
HS1	LR042467	BOLT	LR042467 BOLT M8 X 25MM, Striker	-	4	Enquire
7A010	LR059989	PLUG - BLANKING	LR059989 PLUG - BLANKING Latch, RH/LH	-	2	Enquire
