Fuel Tank & Related Parts (2.0L Aj20D4 Diesel Mid Pta, Halewood (Uk), 2.0L Aj20D4 Diesel Lf Pta,...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR055988 CLIP - CABLE Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR115125 RETAINER - RIVET Enquire To Order
Photo Part No Description Price (each) Stock
LR117799 TANK - FUEL Enquire To Order
LR127507 TANK - FUEL Enquire To Order
LR127489 TANK - FUEL Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR112190 CAP - FUEL TANK FILLER Enquire To Order
LR053666 CAP - FUEL TANK FILLER Enquire To Order
LR138861 CAP - FUEL TANK FILLER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115325 PIPE - FUEL FILLER Enquire To Order
LR115326 PIPE - FUEL FILLER Enquire To Order
LR115328 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR125677 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR115407 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR115796 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR115342 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR117832 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR063975 MOULDING - FUEL TANK PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR125431 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR125430 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR117819 SHIELD - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR114125 SHIELD - FUEL TANK Enquire To Order
View All

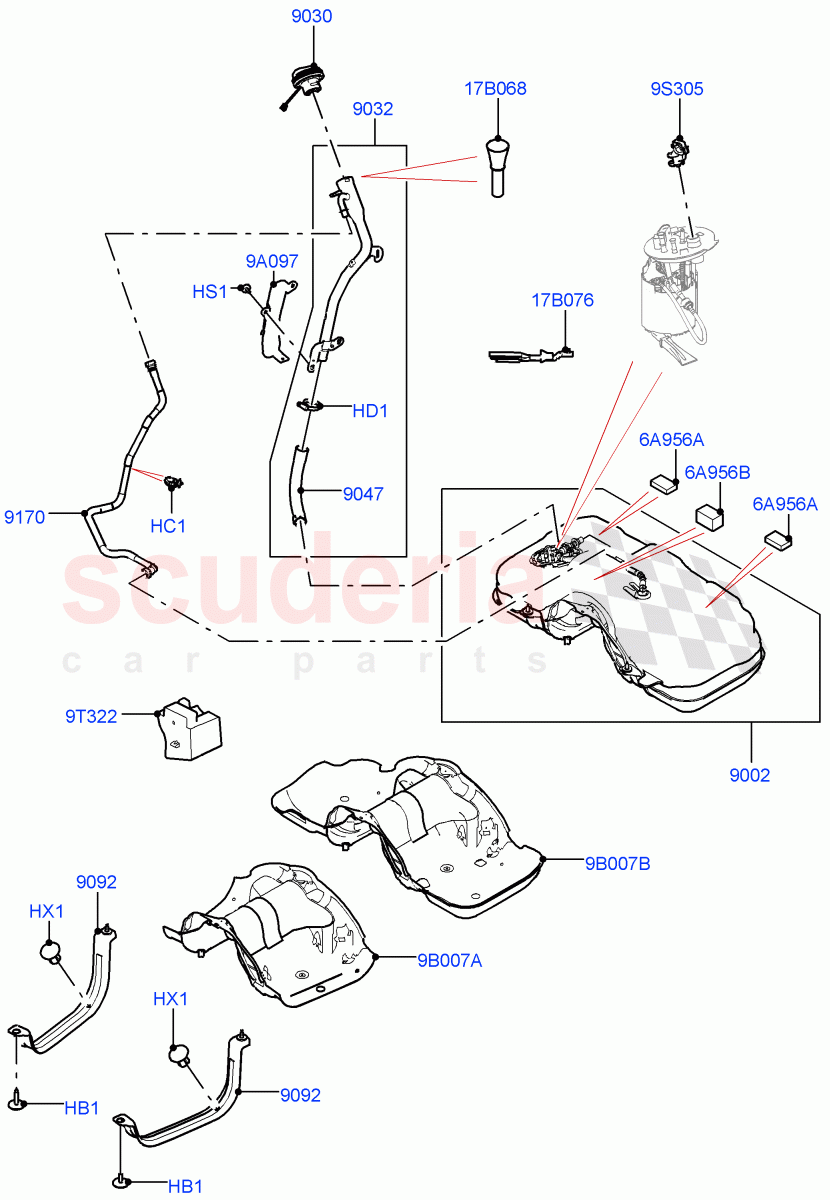

Fuel Tank & Related Parts (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM 		- 4 Enquire
HC1 LR055988
CLIP - CABLE
16-22X6.4-7X0.7-4 		- 3 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 		- 1 Enquire
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex 		- 3 Enquire
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon 		- 2 Enquire
6A956A LR125431
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 20mm 		- 2 Enquire
6A956B LR125430
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 50mm 		- 1 Enquire
9A097 LR115342
TUBE - FUEL
Filler Pipe 		- 1 Enquire
9B007A LR117819
SHIELD - FUEL TANK
Front Wheel Drive / Fuel Tank 		- 1 Enquire
9B007B LR114125
SHIELD - FUEL TANK
All Wheel Drive / Fuel Tank 		- 1 Enquire
9S305 LR117832
CLIP
For Fuel Pump 		- 1 Enquire
9T322 LR063975
MOULDING - FUEL TANK PROTECTION 		- 1 Enquire
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit 		- 1 Enquire
17B076 LR014047
RESTRICTOR - FUEL 		- 1 Enquire
9002 LR117799
TANK - FUEL
Fuel Tank Size - Standard, Fuel Tank-Diesel / To: LH011801 		- 1 Enquire
9002 LR127507
TANK - FUEL
Fuel Tank Size-Eco, Fuel Tank-Diesel / To: LH020347 		- 1 Enquire
9002 LR127489
TANK - FUEL
Fuel Tank Size - Standard, Fuel Tank-Diesel / From: LH011802 / To: LH020347 		- 1 Enquire
9002 LR137794
TANK - FUEL
Fuel Tank Size - Standard, Fuel Tank-Diesel / From: LH020348 / To: LH121820 		- 1 Enquire
9002 LR137795
TANK - FUEL
Fuel Tank Size-Eco, Fuel Tank-Diesel / From: LH020348 / To: MH121894 		- 1 Enquire
9002 LR153414
TANK - FUEL
Fuel Tank Size - Standard, Fuel Tank-Diesel / From: LH121821 		- 1 Enquire
9002 LR153411
TANK - FUEL
Fuel Tank Size-Eco, Fuel Tank-Diesel / From: MH121895 		- 1 Enquire
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / To: MH134927 		- 1 Enquire
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Diesel / To: LH114935 		- 1 Enquire
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: LH114936 		- 1 Enquire
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: MH134928 		- 1 Enquire
9032 LR115325
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel 		- 1 Enquire
9032 LR115326
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Japan 		- 1 Enquire
9032 LR115328
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit 		- 1 Enquire
9047 LR125677
HOSE - FILLER PIPE 		- 1 Enquire
9092 LR115407
STRAP - FUEL TANK 		- 2 Enquire
9170 LR115796
HOSE - VENT 		- 1 Enquire
