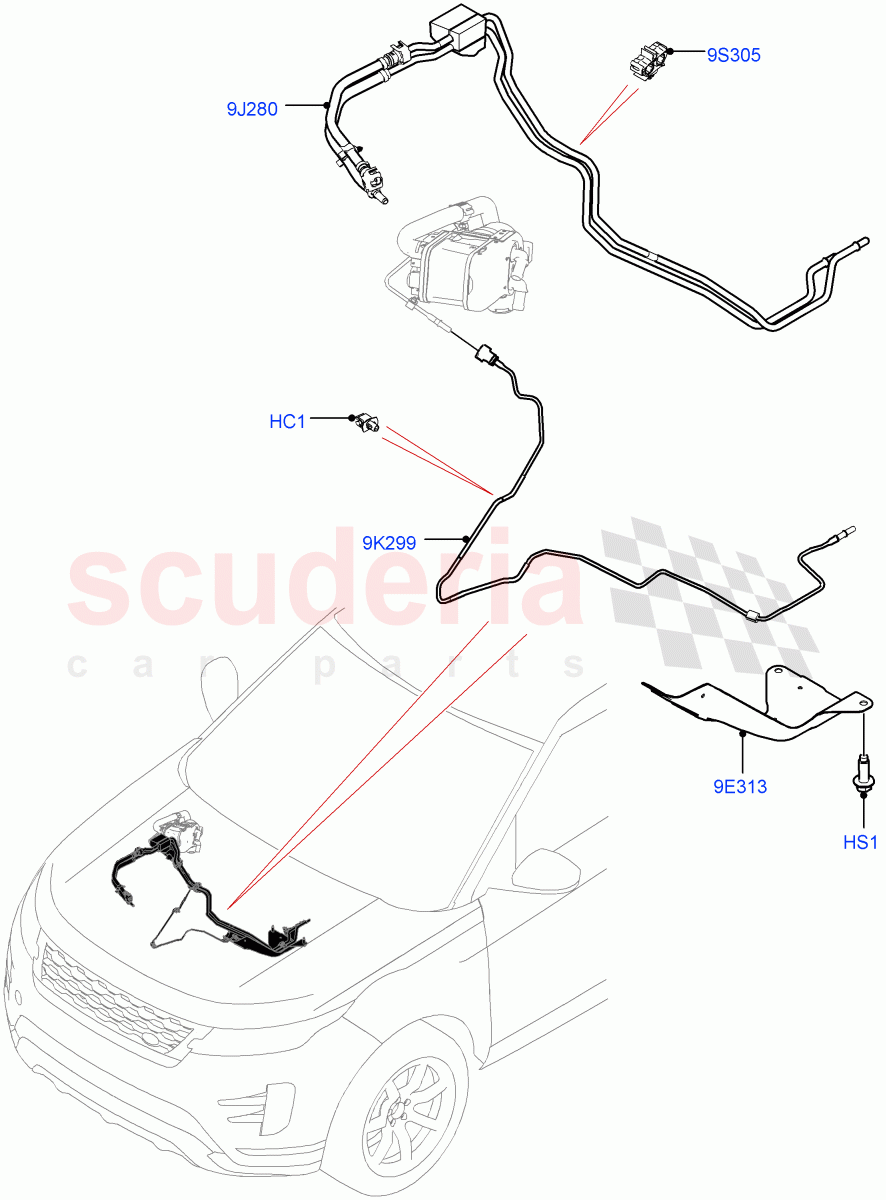

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR113126	CLIP - BRAKE PIPE	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115337	PIPE - FUEL	$181.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	$3.46	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR113126	CLIP - BRAKE PIPE	LR113126 CLIP - BRAKE PIPE Fuel Heater W/Pk Heat With Remote / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single	$0.58	5
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM, Shield	$0.58	3
9E313	LR117825	SHIELD - FUEL TUBES	LR117825 SHIELD - FUEL TUBES Front / To: LH071806	$78.70	1
9E313	LR133032	SHIELD - FUEL TUBES	LR133032 SHIELD - FUEL TUBES Front / From: LH071807	$76.97	1
9J280	LR115336	PIPE - FUEL	LR115336 PIPE - FUEL Fuel Supply And Fuel Return / To: LH072004	$204.55	1
9J280	LR139135	PIPE - FUEL	LR139135 PIPE - FUEL Fuel Supply And Fuel Return / From: LH072005	$211.56	1
9K299	LR115337	PIPE - FUEL	LR115337 PIPE - FUEL With Fuel Fired Heater / To Fuel Fired Heater	$181.29	1
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch)	$3.46	3
