Front Exhaust System (2.0L Aj20D4 Diesel Mid Pta, Euro Stage 4 Emissions, Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Front Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Euro Stage 4 Emissions, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYG500230 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
FX110056 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
PYG500050 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR023448 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR114101 MUFFLER - CENTRE Enquire To Order
Photo Part No Description Price (each) Stock
LR111338 CLAMP - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR072251 GASKET - TURBOCHARGER Enquire To Order
Photo Part No Description Price (each) Stock
LR114102 PIPE - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR120482 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR081471 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR115622 PIPE - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR000593 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR093418 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR114108 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR079603 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR115648 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
View All

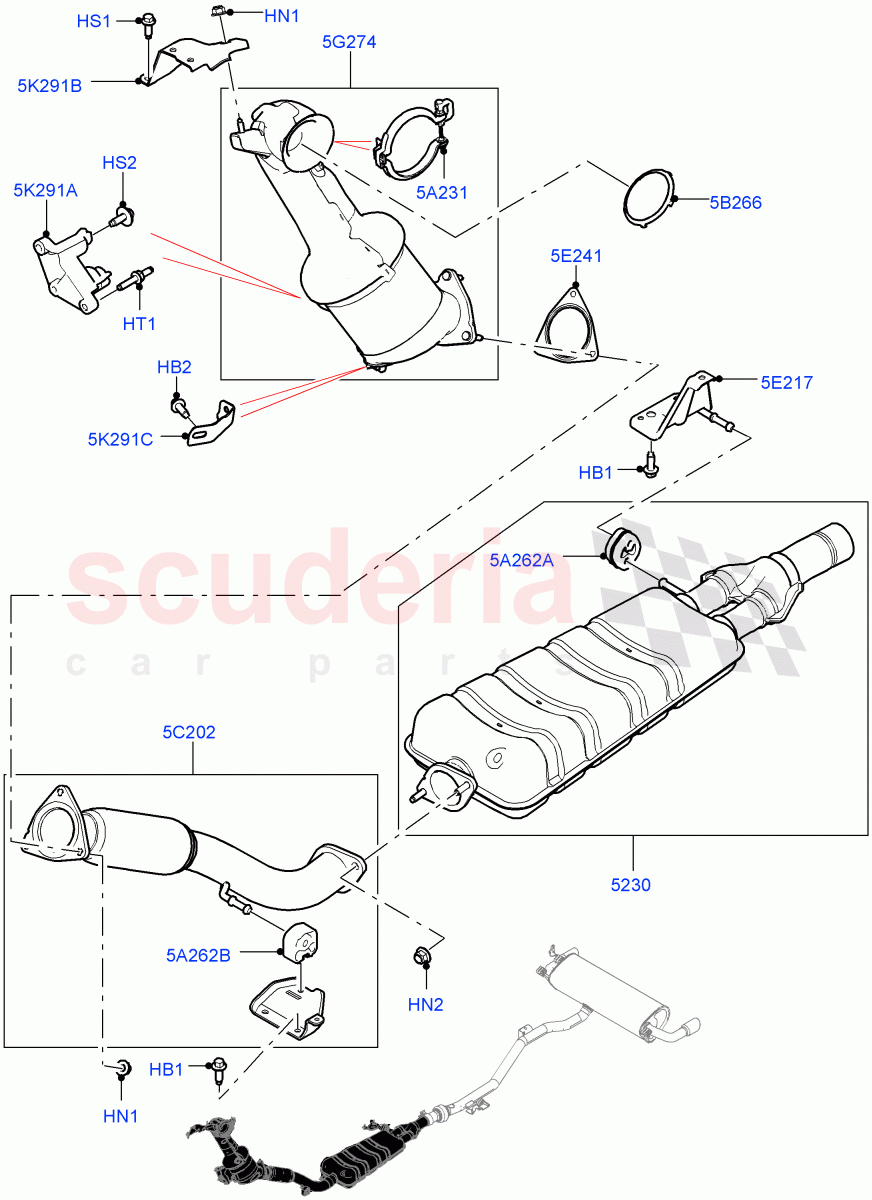

Front Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Euro Stage 4 Emissions, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		- 4 Enquire
HB2 RYG500230
BOLT - HEX.HEAD
Hexagonal Head, M8 X 20MM 		- 2 Enquire
HN1 FX108046
NUT - LOCKING
M8 		- 4 Enquire
HN2 FX110056
NUT - HEX.
Hex Nut Type, M10 		- 2 Enquire
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM 		- 1 Enquire
HS2 PYG500050
SCREW
M8 X 20MM 		- 1 Enquire
HT1 LR023448
STUD
M8 X 30 + M8 X 16MM 		- 3 Enquire
5A231 LR111338
CLAMP - EXHAUST
101 mm 		- 1 Enquire
5A262A LR000593
INSULATOR - RUBBER 		- 1 Enquire
5A262B LR093418
INSULATOR - RUBBER 		- 1 Enquire
5B266 LR072251
GASKET - TURBOCHARGER
101 mm 		- 1 Enquire
5C202 LR114102
PIPE - EXHAUST 		- 1 Enquire
5E217 LR120482
BRACKET - EXHAUST PIPE MOUNTING 		- 1 Enquire
5E241 LR081471
GASKET - EXHAUST PIPE
Exhaust pipe 		- 1 Enquire
5G274 LR115622
PIPE - EXHAUST 		- 1 Enquire
5K291A LR114108
BRACKET - EXHAUST PIPE MOUNTING
Middle 		- 1 Enquire
5K291B LR079603
BRACKET - EXHAUST PIPE MOUNTING
Upper 		- 1 Enquire
5K291C LR115648
BRACKET - EXHAUST PIPE MOUNTING
Lower 		- 1 Enquire
5230 LR114101
MUFFLER - CENTRE 		- 1 Enquire
