Name: Front Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Stage V Plus DPF, Halewood (UK), DPF + DE-SOX, Proconve L6 Emissions, 2.0L AJ20D4 Diesel High PTA)
Rating: 5.0 (1 reviews)

Front Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Stage V Plus DPF, Halewood (UK), DPF + DE-SOX, Proconve L6 Emissions, 2.0L AJ20D4 Diesel High PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Front Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Stage V Plus DPF, Halewood (UK), DPF + DE-SOX,...

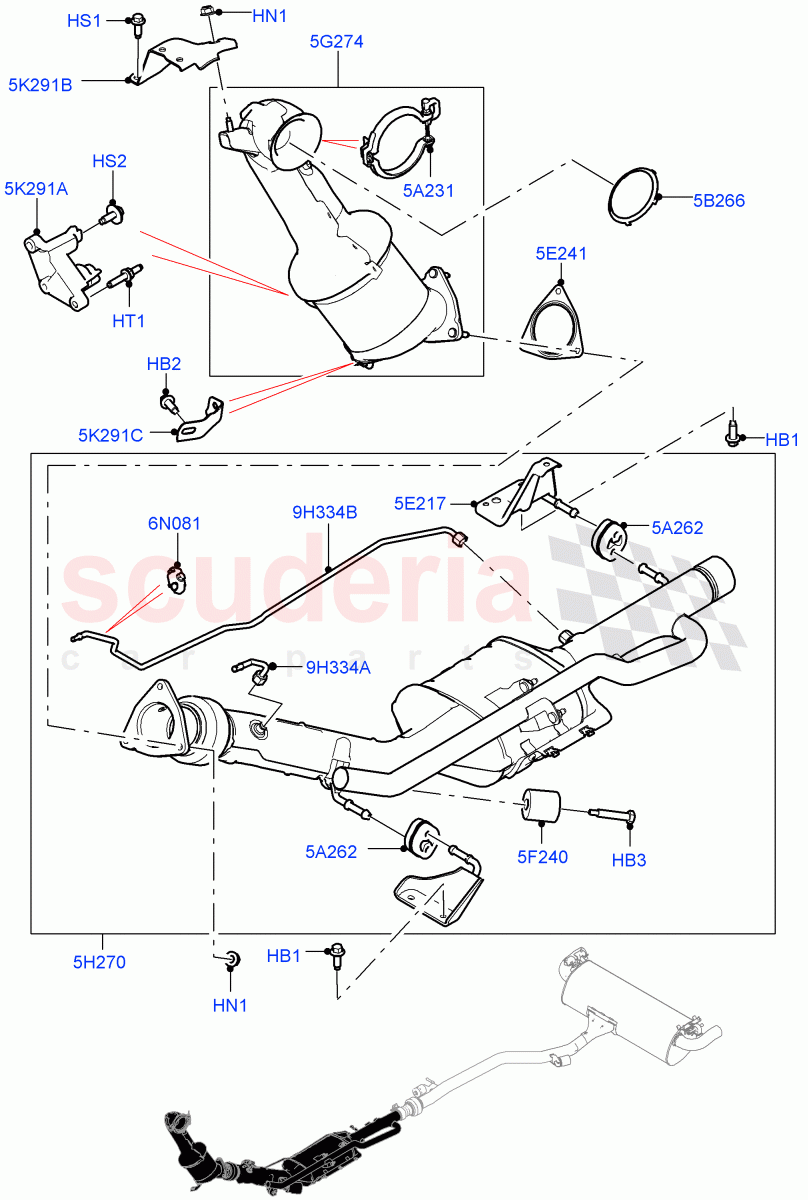

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	PYG500050	SCREW	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023448	STUD	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111338	CLAMP - EXHAUST	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	$15.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144867	BRACKET - EXHAUST PIPE MOUNTING	$44.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081471	GASKET - EXHAUST PIPE	$12.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148077	DAMPER - EXHAUST SYSTEM	$78.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115621	PIPE - EXHAUST	$923.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114103	CATALYST AND PARTICLE FILTER	$2,443.37	To Order
	LR133937	CATALYST AND PARTICLE FILTER	$2,436.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136723	BRACKET - EXHAUST PIPE MOUNTING	$10.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114108	BRACKET - EXHAUST PIPE MOUNTING	$46.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079603	BRACKET - EXHAUST PIPE MOUNTING	$28.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115648	BRACKET - EXHAUST PIPE MOUNTING	$16.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136720	PIPE - EXHAUST PRESSURE	$49.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136722	PIPE - EXHAUST PRESSURE	$53.77	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$0.99	4
HB2	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM IN STOCK	$1.36	2
HB3	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking	$2.53	1
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 IN STOCK	$0.41	3
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM	$0.58	1
HS2	PYG500050	SCREW	PYG500050 SCREW M8 X 20MM	$1.01	1
HT1	LR023448	STUD	LR023448 STUD M8 X 30 + M8 X 16MM	$4.82	3
5A231	LR111338	CLAMP - EXHAUST	LR111338 CLAMP - EXHAUST 101 mm	$22.92	1
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER	$11.29	2
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm	$15.91	1
5E217	LR144867	BRACKET - EXHAUST PIPE MOUNTING	LR144867 BRACKET - EXHAUST PIPE MOUNTING Rear RH	$44.34	1
5E241	LR081471	GASKET - EXHAUST PIPE	LR081471 GASKET - EXHAUST PIPE Exhaust pipe	$12.45	1
5F240	LR148077	DAMPER - EXHAUST SYSTEM	LR148077 DAMPER - EXHAUST SYSTEM	$78.69	1
5G274	LR115621	PIPE - EXHAUST	LR115621 PIPE - EXHAUST	$923.21	1
5H270	LR114103	CATALYST AND PARTICLE FILTER	LR114103 CATALYST AND PARTICLE FILTER To: LH031117	$2,443.37	1
5H270	LR133937	CATALYST AND PARTICLE FILTER	LR133937 CATALYST AND PARTICLE FILTER From: LH031118	$2,436.96	1
5K291A	LR114108	BRACKET - EXHAUST PIPE MOUNTING	LR114108 BRACKET - EXHAUST PIPE MOUNTING Middle	$46.15	1
5K291B	LR079603	BRACKET - EXHAUST PIPE MOUNTING	LR079603 BRACKET - EXHAUST PIPE MOUNTING Upper	$28.13	1
5K291C	LR115648	BRACKET - EXHAUST PIPE MOUNTING	LR115648 BRACKET - EXHAUST PIPE MOUNTING Lower	$16.10	1
6N081	LR136723	BRACKET - EXHAUST PIPE MOUNTING	LR136723 BRACKET - EXHAUST PIPE MOUNTING Exhaust pipe	$10.32	1
9H334A	LR136720	PIPE - EXHAUST PRESSURE	LR136720 PIPE - EXHAUST PRESSURE Exhaust Gas Pressure, Inlet	$49.83	1
9H334B	LR136722	PIPE - EXHAUST PRESSURE	LR136722 PIPE - EXHAUST PRESSURE Exhaust Gas Pressure, Outlet	$53.77	1
