Name: Thermostat/Housing & Related Parts (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA)
Rating: 4.2 (1 reviews)

Thermostat/Housing & Related Parts (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Thermostat/Housing & Related Parts (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel...

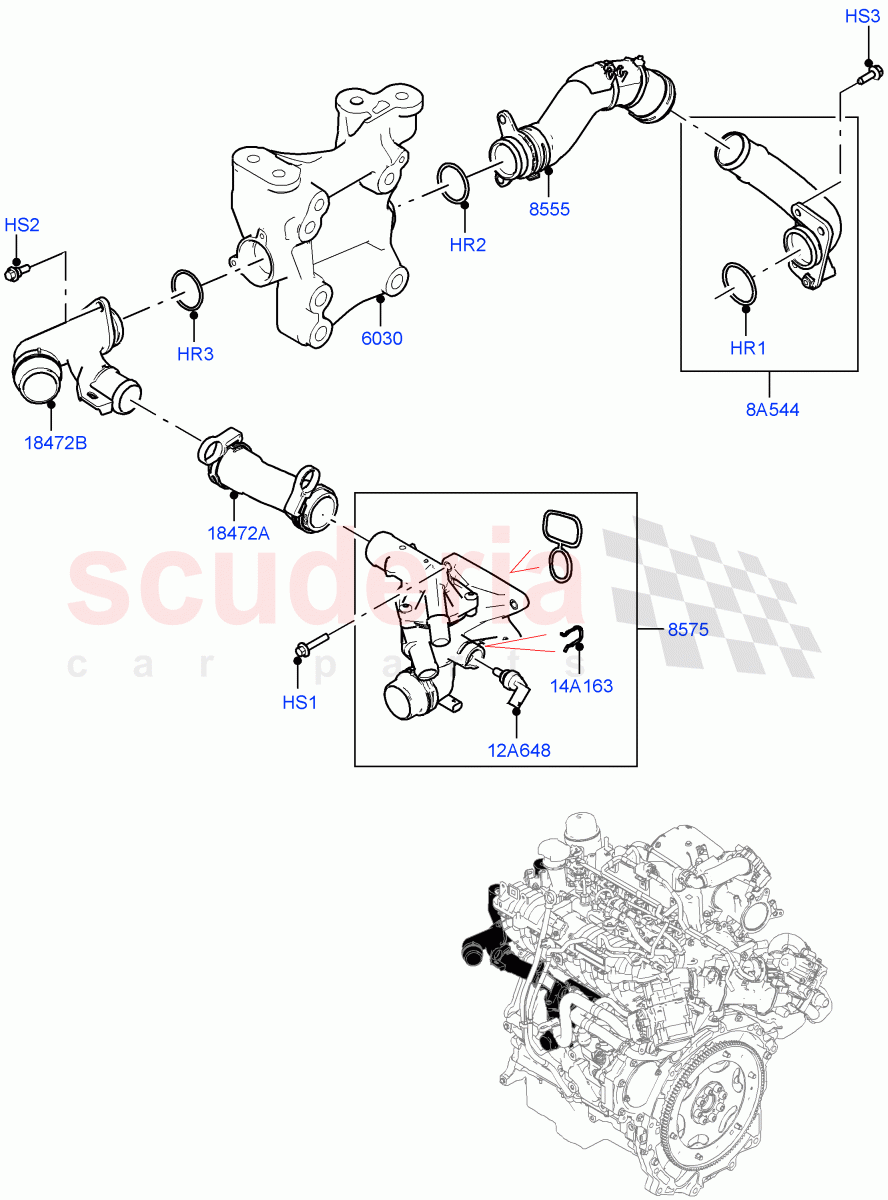

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR096839	O-RING	$5.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096840	O-RING	$12.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096841	O-RING	$5.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117682	SUPPORT - ENGINE MOUNTING - FRONT	$169.37	To Order
	LR140267	SUPPORT - ENGINE MOUNTING - FRONT	$169.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR184620	TUBE	$88.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115274	THERMOSTAT	$121.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115288	TUBE - CONNECTING	$53.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115297	HOSE	$39.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115281	TUBE - BY-PASS	$51.26	To Order
	LR144161	TUBE - BY-PASS	$151.84	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR096839	O-RING	LR096839 O-RING Elbow Connector,	$5.82	1
HR2	LR096840	O-RING	LR096840 O-RING	$12.09	1
HR3	LR096841	O-RING	LR096841 O-RING	$5.67	1
HS1	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM IN STOCK	$2.55	4
HS2	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM IN STOCK	$0.69	4
HS3	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM	$2.27	2
8A544	LR115288	TUBE - CONNECTING	LR115288 TUBE - CONNECTING Inlet, Water Pump	$53.19	1
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	1
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP	$4.50	1
6030	LR117682	SUPPORT - ENGINE MOUNTING - FRONT	LR117682 SUPPORT - ENGINE MOUNTING - FRONT To: LH111072	$169.37	1
6030	LR140267	SUPPORT - ENGINE MOUNTING - FRONT	LR140267 SUPPORT - ENGINE MOUNTING - FRONT From: LH111073	$169.37	1
8555	LR184620	TUBE	LR184620 TUBE Rear, To Engine	$88.20	1
8575	LR115274	THERMOSTAT	LR115274 THERMOSTAT	$121.95	1
18472A	LR115297	HOSE	LR115297 HOSE To Thermostat	$39.22	1
18472B	LR115281	TUBE - BY-PASS	LR115281 TUBE - BY-PASS Front, To Engine / To: MH121894	$51.26	1
18472B	LR144161	TUBE - BY-PASS	LR144161 TUBE - BY-PASS Front, To Engine / From: MH121895	$151.84	1
