Radiator/Coolant Overflow Container (2.0L AJ20D4 Diesel LF PTA, 6 Speed Manual Trans BG6, Halewood (UK), 9 Speed Auto Trans 9HP50, 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Radiator/Coolant Overflow Container (2.0L AJ20D4 Diesel LF PTA, 6 Speed Manual Trans BG6, Halewood...

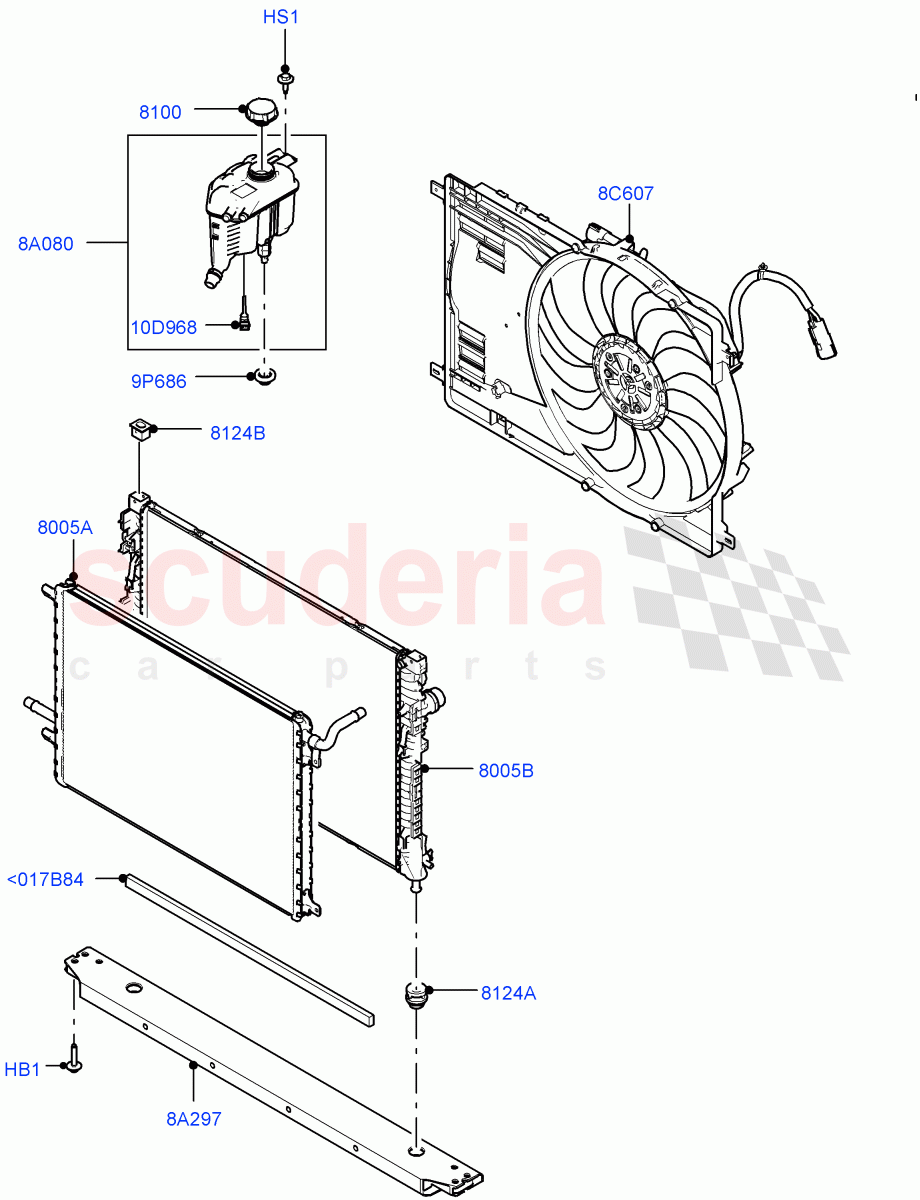

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR057202	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000243	CAP - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117684	RADIATOR - WATER CHARGE AIR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115950	RADIATOR	Enquire	To Order
	LR117683	RADIATOR - MAIN	Enquire	To Order
	LR135902	RADIATOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR000242	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115228	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117324	SUPPORT - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115309	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR115310	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR115313	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024294	PAD - FOAM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR024294	PAD - FOAM	LR024294 PAD - FOAM Self Adhesive	-	1	Enquire
HB1	LR057202	BOLT AND WASHER - HEX.HEAD	LR057202 BOLT AND WASHER - HEX.HEAD M8 x 40MM, Radiator Support	-	6	Enquire
HS1	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex	-	1	Enquire
8A080	LR115228	TANK - RADIATOR OVERFLOW	LR115228 TANK - RADIATOR OVERFLOW	-	1	Enquire
8A297	LR117324	SUPPORT - RADIATOR	LR117324 SUPPORT - RADIATOR Lower	-	1	Enquire
8C607	LR115309	MOTOR AND FAN - ENGINE COOLING	LR115309 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel LF PTA, 6 Speed Manual Trans BG6, Front Wheel Drive / To: LH068833	-	1	Enquire
8C607	LR115310	MOTOR AND FAN - ENGINE COOLING	LR115310 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel Mid PTA, All Wheel Drive, Low Engine Cooling / To: LH066180	-	1	Enquire
8C607	LR115313	MOTOR AND FAN - ENGINE COOLING	LR115313 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel Mid PTA, Extra High Engine Cooling / To: LH055059	-	1	Enquire
8C607	LR135875	MOTOR AND FAN - ENGINE COOLING	LR135875 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel Mid PTA, Extra High Engine Cooling / From: LH055060 / To: LH107998	-	1	Enquire
8C607	LR135874	MOTOR AND FAN - ENGINE COOLING	LR135874 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel Mid PTA, All Wheel Drive, Low Engine Cooling / From: LH066181 / To: LH072410	-	1	Enquire
8C607	LR135873	MOTOR AND FAN - ENGINE COOLING	LR135873 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel LF PTA, 6 Speed Manual Trans BG6, Front Wheel Drive / From: LH068834 / To: LH103482	-	1	Enquire
8C607	LR135875	MOTOR AND FAN - ENGINE COOLING	LR135875 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel LF PTA, High Engine Cooling / From: LH072411 / To: LH107998	-	1	Enquire
8C607	LR135877	MOTOR AND FAN - ENGINE COOLING	LR135877 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel High PTA, Extra High Engine Cooling / From: LH072411 / To: LH107998	-	1	Enquire
8C607	LR144533	MOTOR AND FAN - ENGINE COOLING	LR144533 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel LF PTA, 6 Speed Manual Trans BG6, Front Wheel Drive / From: LH103483	-	1	Enquire
8C607	LR144532	MOTOR AND FAN - ENGINE COOLING	LR144532 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel Mid PTA, All Wheel Drive, Medium Engine Cooling / From: LH072411	-	1	Enquire
8C607	LR144530	MOTOR AND FAN - ENGINE COOLING	LR144530 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel High PTA, High Engine Cooling / From: LH107999	-	1	Enquire
8C607	LR144531	MOTOR AND FAN - ENGINE COOLING	LR144531 MOTOR AND FAN - ENGINE COOLING 2.0L AJ20D4 Diesel Mid PTA, Extra High Engine Cooling / From: LH107999	-	1	Enquire
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING	LR000753 INSULATOR - AIR CLEANER HOUSING Expansion Tank	-	2	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL	-	1	Enquire
8005A	LR117684	RADIATOR - WATER CHARGE AIR COOLER	LR117684 RADIATOR - WATER CHARGE AIR COOLER Water Charge Air Cooler	-	1	Enquire
8005B	LR115950	RADIATOR	LR115950 RADIATOR 6 Speed Manual Trans BG6 / To: LH042675	-	1	Enquire
8005B	LR117683	RADIATOR - MAIN	LR117683 RADIATOR - MAIN 9 Speed Auto Trans 9HP50 / To: LH043059	-	1	Enquire
8005B	LR135902	RADIATOR	LR135902 RADIATOR 6 Speed Manual Trans BG6 / From: LH042676	-	1	Enquire
8005B	LR135901	RADIATOR - MAIN	LR135901 RADIATOR - MAIN 9 Speed Auto Trans 9HP50 / From: LH043060	-	1	Enquire
8100	LR000243	CAP - RADIATOR	LR000243 CAP - RADIATOR Expansion Tank	-	1	Enquire
8124A	LR000242	INSULATOR - RADIATOR SUPPORT	LR000242 INSULATOR - RADIATOR SUPPORT Lower	-	2	Enquire
8124B	LR007399	INSULATOR - RUBBER	LR007399 INSULATOR - RUBBER Upper	-	2	Enquire
