Exterior Rear View Mirror (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Exterior Rear View Mirror (Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025172 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR011865 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR076855 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR038616 SCREW - PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR114757 LAMP - SIDE FLASHER Enquire To Order
LR114758 LAMP - SIDE FLASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR134599 MIRROR - REAR VIEW - OUTER Enquire To Order
LR134600 MIRROR - REAR VIEW - OUTER Enquire To Order
LR114772 MIRROR - REAR VIEW - OUTER Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115318 LAMP - EXTERIOR MIRROR Enquire To Order
LR114756 LAMP - EXTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
CRP500031 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
LR015050 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR149973 COVER - MIRROR HOUSING Enquire To Order
LR149974 COVER - MIRROR HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR093177 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR093178 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR093179 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR154912 HOUSING - WADE ASSIST SENSOR Enquire To Order
LR154913 HOUSING - WADE ASSIST SENSOR Enquire To Order
View All

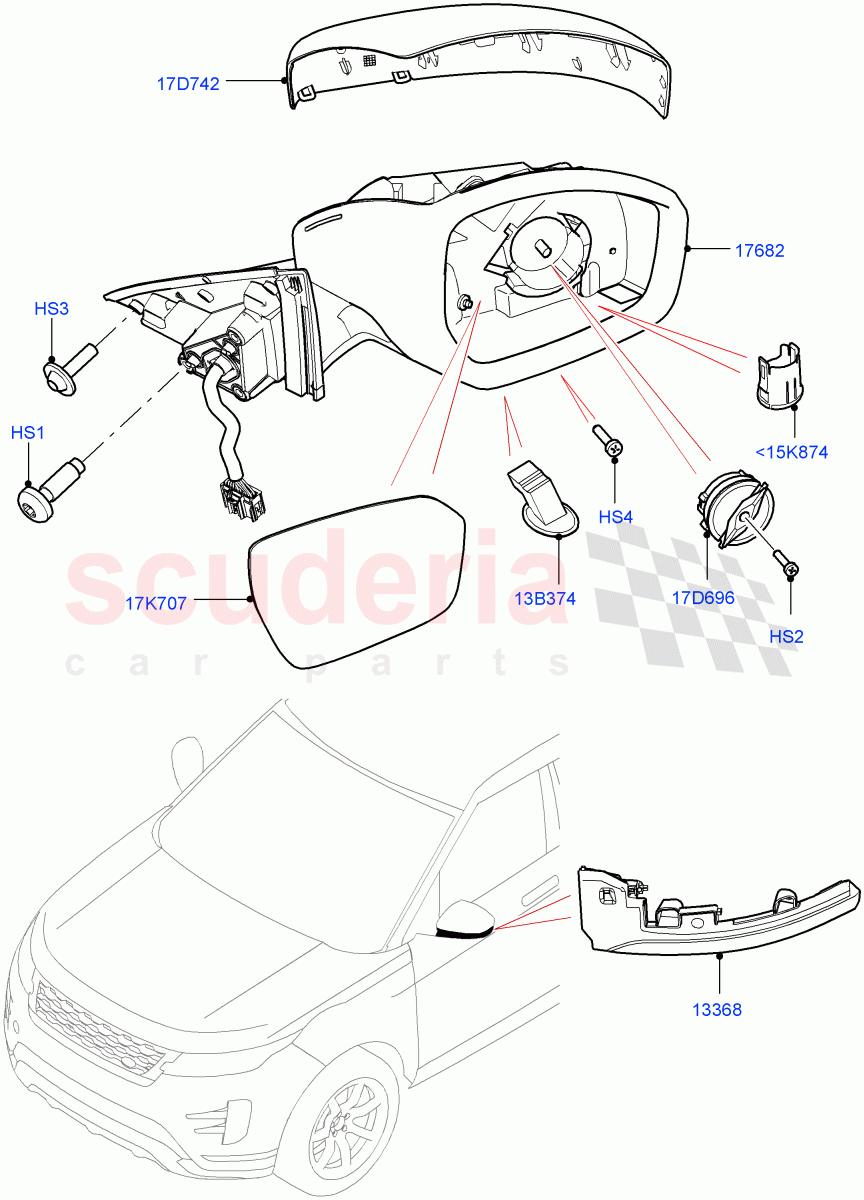

Exterior Rear View Mirror (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<15K874 LR154912
HOUSING - WADE ASSIST SENSOR
Water Wading Aid / RH 		- 1 Enquire
<15K874 LR154913
HOUSING - WADE ASSIST SENSOR
Water Wading Aid / LH 		- 1 Enquire
HS1 LR025172
SCREW
M6 X 16MM 		- 6 Enquire
HS2 LR011865
SCREW
M3 X 25MM 		- 2 Enquire
HS3 LR076855
SCREW AND WASHER
M4 X 1.79 X 16 		- 4 Enquire
HS4 LR038616
SCREW - PAN HEAD
3 x 10 		- 2 Enquire
13B374 LR115318
LAMP - EXTERIOR MIRROR
Dual Pwr/Htd/Fld/E'Chro/Pudd Lamp / RH 		- 1 Enquire
13B374 LR114756
LAMP - EXTERIOR MIRROR
Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp / LH 		- 1 Enquire
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Exterior Mirrors / RH, 3 Pin Connector, Less Memory 		- 1 Enquire
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / RH, 8 Pin Connector, With Memory 		- 1 Enquire
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Exterior Mirrors / LH, 3 Pin Connector, Less Memory 		- 1 Enquire
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / LH, 8 Pin Connector, With Memory 		- 1 Enquire
17D742 LR149973
COVER - MIRROR HOUSING
RH 		- 1 Enquire
17D742 LR149974
COVER - MIRROR HOUSING
LH 		- 1 Enquire
17K707 LR093177
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System / LH, Convex Glass 		- 1 Enquire
17K707 LR093178
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System / LH, Flat Glass 		- 1 Enquire
17K707 LR093179
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System / LH, Arabic Script, Convex Glass 		- 1 Enquire
17K707 LR093180
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / LH, Convex Glass 		- 1 Enquire
17K707 LR093181
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / LH, Flat Glass 		- 1 Enquire
17K707 LR093182
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / LH, Arabic Script, Convex Glass 		- 1 Enquire
17K707 LR134601
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / RH, Convex Glass 		- 1 Enquire
17K707 LR134602
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH, Convex Glass 		- 1 Enquire
17K707 LR154909
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / RH, Convex Glass + Script 		- 1 Enquire
17K707 LR155160
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH, Flat Glass 		- 1 Enquire
17K707 LR154910
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / RH, Arabic Script, Convex Glass 		- 1 Enquire
17K707 LR155159
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH, Arabic Script, Convex Glass 		- 1 Enquire
17K707 LR154930
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / RH, Convex Glass 		- 1 Enquire
17K707 LR154932
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / RH, Convex Glass + Script 		- 1 Enquire
17K707 LR154933
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / RH, Arabic Script, Convex Glass 		- 1 Enquire
13368 LR114757
LAMP - SIDE FLASHER
RH 		- 1 Enquire
13368 LR114758
LAMP - SIDE FLASHER
LH 		- 1 Enquire
17682 LR134599
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Rear View Camera-Fixed / RH 		- 1 Enquire
17682 LR134600
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Rear View Camera-Fixed / LH 		- 1 Enquire
17682 LR114772
MIRROR - REAR VIEW - OUTER
Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System, Less Seat Adjuster, Less Water Wading Equipment, Rear View Camera-Fixed / LH 		- 1 Enquire
17682 LR114774
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Seat Adjuster, Less Water Wading Equipment, Rear View Camera-Fixed / LH 		- 1 Enquire
17682 LR125352
MIRROR - REAR VIEW - OUTER
Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Electric Front Seat Adj Drv Memory, Less Blind Spot Information System, Less Water Wading Equipment, Rear View Camera-Fixed / LH 		- 1 Enquire
17682 LR154914
MIRROR - REAR VIEW - OUTER
Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System, Less Seat Adjuster, Less Water Wading Equipment, Rear View Camera-Fixed / RH 		- 1 Enquire
17682 LR154915
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Seat Adjuster, Less Water Wading Equipment, Rear View Camera-Fixed / RH 		- 1 Enquire
17682 LR154917
MIRROR - REAR VIEW - OUTER
3D Surround Camera, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System, Less Seat Adjuster, Water Wading Aid / RH 		- 1 Enquire
17682 LR154919
MIRROR - REAR VIEW - OUTER
3D Surround Camera, Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Seat Adjuster, Water Wading Aid / RH 		- 1 Enquire
17682 LR154920
MIRROR - REAR VIEW - OUTER
Driver/Pass Elec Fr Seat Adj/Memory, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System, Less Water Wading Equipment, Rear View Camera-Fixed / RH 		- 1 Enquire
17682 LR154924
MIRROR - REAR VIEW - OUTER
Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Blind Spot Information System, Less Seat Adjuster, Surround Camera Sys+Water Wade Aid, Water Wading Aid / LH 		- 1 Enquire
17682 LR154926
MIRROR - REAR VIEW - OUTER
Blind Spot Assist, Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp, Less Seat Adjuster, Surround Camera Sys+Water Wade Aid, Water Wading Aid / LH 		- 1 Enquire
