Front Doors, Hinges & Weatherstrips (Door And Fixings) (Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Front Doors, Hinges & Weatherstrips (Door And Fixings) (Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025399 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR032819 BOLT AND WASHER - TORX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR003553 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR138378 DOOR - FRONT Enquire To Order
LR138379 DOOR - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
LR117205 CHECK - DOOR Enquire To Order
Photo Part No Description Price (each) Stock
LR056353 HINGE - DOOR Enquire To Order
LR056354 HINGE - DOOR Enquire To Order
Photo Part No Description Price (each) Stock
LR056351 HINGE - DOOR Enquire To Order
LR056352 HINGE - DOOR Enquire To Order
View All

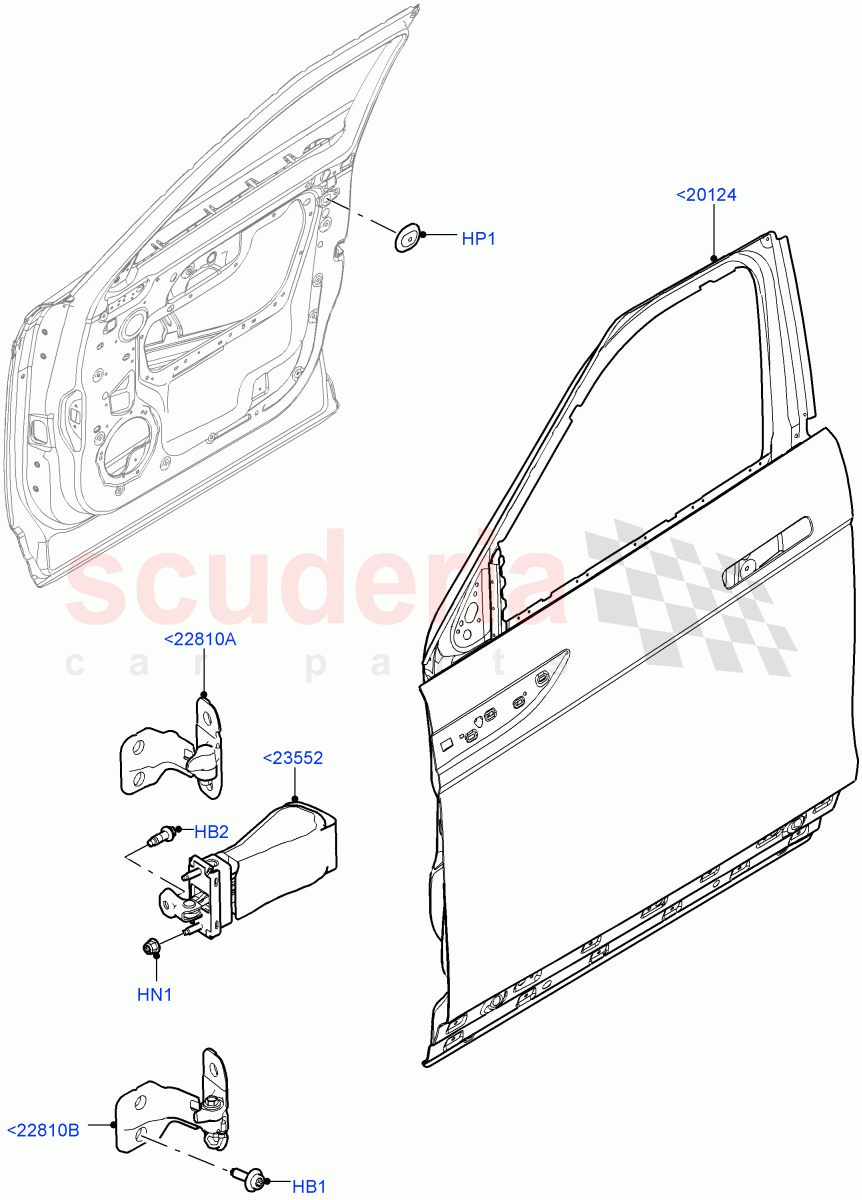

Front Doors, Hinges & Weatherstrips (Door And Fixings) (Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<20124 LR138378
DOOR - FRONT
RH 		- 1 Enquire
<20124 LR138379
DOOR - FRONT
LH 		- 1 Enquire
<22810A LR056353
HINGE - DOOR
RH, Upper 		- 2 Enquire
<22810A LR056354
HINGE - DOOR
LH, Upper 		- 2 Enquire
<22810B LR056351
HINGE - DOOR
RH, Lower 		- 2 Enquire
<22810B LR056352
HINGE - DOOR
LH, Lower 		- 2 Enquire
<23552 LR117205
CHECK - DOOR
RH/LH 		- 2 Enquire
HB1 LR025399
BOLT
M8 X 25MM 		- 16 Enquire
HB2 LR032819
BOLT AND WASHER - TORX HEAD
M8 X 20MM 		- 4 Enquire
HN1 FY106046
NUT - HEX.
Hexagonal Head, M6 		- 4 Enquire
HP1 LR003553
PLUG
19.5 X 24.5MM 		- 2 Enquire
