Name: Rear Exhaust System (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)
Rating: 4.7 (1 reviews)

Rear Exhaust System (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Exhaust System (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133729	PIPE - EXHAUST	$466.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125427	BRACKET - EXHAUST PIPE MOUNTING	$26.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125426	BRACKET - EXHAUST PIPE MOUNTING	$26.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133728	MUFFLER - REAR	$1,038.59	To Order
	LR159477	MUFFLER - REAR	$1,038.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137008	ACTUATOR - ELECTRONIC EXHAUST VALVE	$290.29	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077700	CLAMP - EXHAUST	$43.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125106	INSULATOR - RUBBER	$30.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120482	BRACKET - EXHAUST PIPE MOUNTING	$33.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138313	BRACKET - EXHAUST PIPE MOUNTING	$47.06	To Order

View All

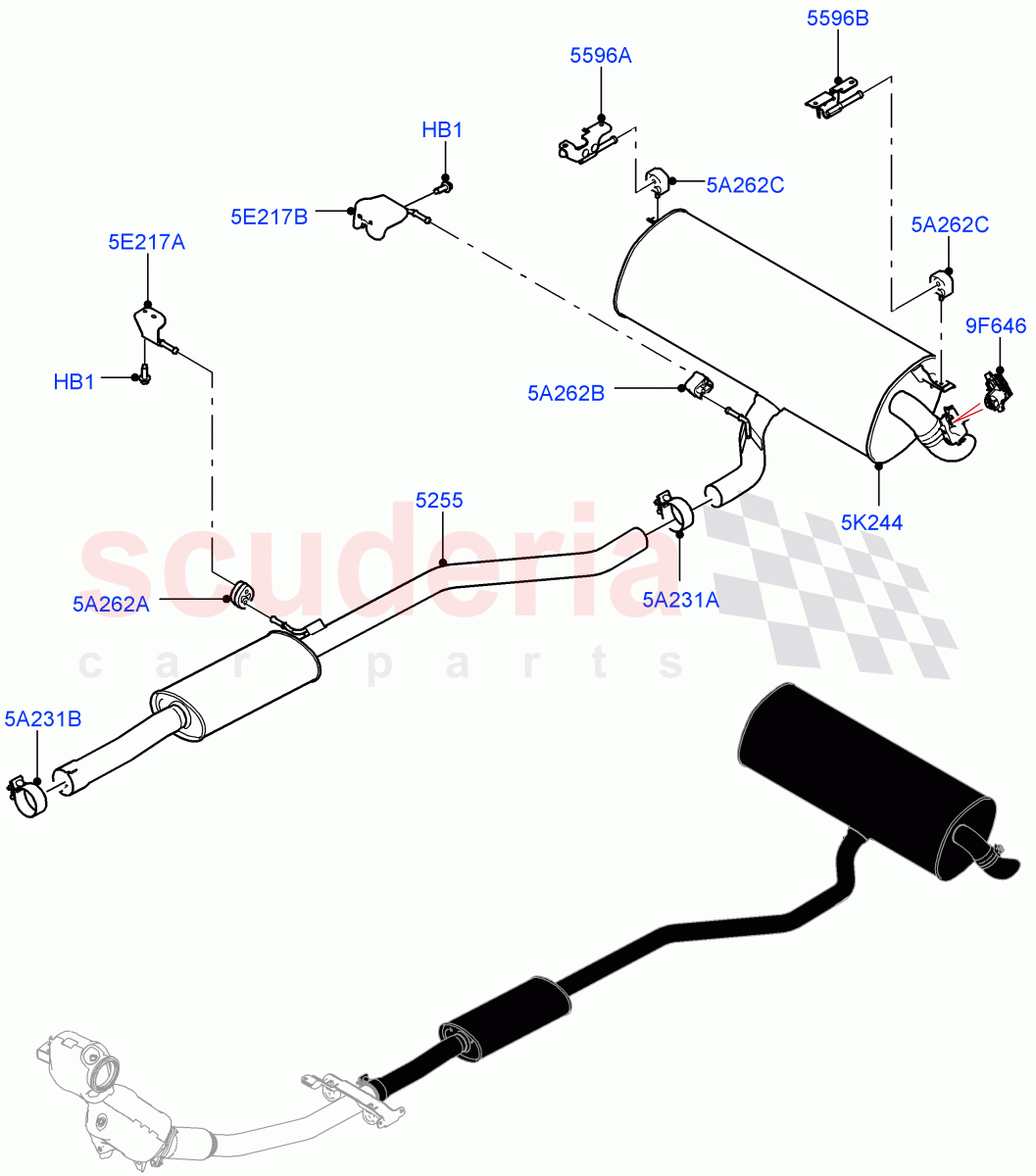

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: MH000001	$0.99	6
5A231A	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Rear / From: MH000001	$81.53	1
5A231B	LR077700	CLAMP - EXHAUST	LR077700 CLAMP - EXHAUST 65MM, Front / From: MH000001	$43.01	1
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front / From: MH000001	$11.29	1
5A262B	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER Middle / From: MH000001	$23.23	1
5A262C	LR125106	INSULATOR - RUBBER	LR125106 INSULATOR - RUBBER For Rear Muffler, RH/LH / From: MH000001	$30.81	2
5E217A	LR120482	BRACKET - EXHAUST PIPE MOUNTING	LR120482 BRACKET - EXHAUST PIPE MOUNTING Front / From: MH000001	$33.78	1
5E217B	LR138313	BRACKET - EXHAUST PIPE MOUNTING	LR138313 BRACKET - EXHAUST PIPE MOUNTING Middle / From: MH000001	$47.06	1
5K244	LR133728	MUFFLER - REAR	LR133728 MUFFLER - REAR From: MH000001 / To: MH136791	$1,038.59	1
5K244	LR159477	MUFFLER - REAR	LR159477 MUFFLER - REAR From: MH136792	$1,038.59	1
9F646	LR137008	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR137008 ACTUATOR - ELECTRONIC EXHAUST VALVE From: MH000001	$290.29	1
5255	LR133729	PIPE - EXHAUST	LR133729 PIPE - EXHAUST From: MH000001	$466.81	1
5596A	LR125427	BRACKET - EXHAUST PIPE MOUNTING	LR125427 BRACKET - EXHAUST PIPE MOUNTING RH Rear / From: MH000001	$26.05	1
5596B	LR125426	BRACKET - EXHAUST PIPE MOUNTING	LR125426 BRACKET - EXHAUST PIPE MOUNTING LH Rear / From: MH000001	$26.05	1
