Rear Exhaust System (1.5L Aj20P3 Petrol High Phev, Halewood (Uk)) ((V) Fromlh000001)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Exhaust System (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $0.99 To Order
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.63 To Order
Photo Part No Description Price (each) Stock
LR135598 MUFFLER - CENTRE $734.20 To Order
Photo Part No Description Price (each) Stock
LR125427 BRACKET - EXHAUST PIPE MOUNTING $26.05 To Order
Photo Part No Description Price (each) Stock
LR125426 BRACKET - EXHAUST PIPE MOUNTING $26.05 To Order
Photo Part No Description Price (each) Stock
LR135634 MUFFLER - REAR $1,368.53 To Order
LR159478 MUFFLER - REAR $974.50 To Order
Photo Part No Description Price (each) Stock
LR137008 ACTUATOR - ELECTRONIC EXHAUST VALVE $290.29 To Order
Photo Part No Description Price (each) Stock
WCL500030 CLAMP - EXHAUST $81.53 To Order
Photo Part No Description Price (each) Stock
LR000593 INSULATOR - RUBBER $11.29 To Order
Photo Part No Description Price (each) Stock
LR104929 INSULATOR - RUBBER $8.97 To Order
Photo Part No Description Price (each) Stock
LR125106 INSULATOR - RUBBER $30.81 To Order
Photo Part No Description Price (each) Stock
LR139406 BRACKET $50.83 To Order
Photo Part No Description Price (each) Stock
LR139407 BRACKET $45.34 To Order
View All

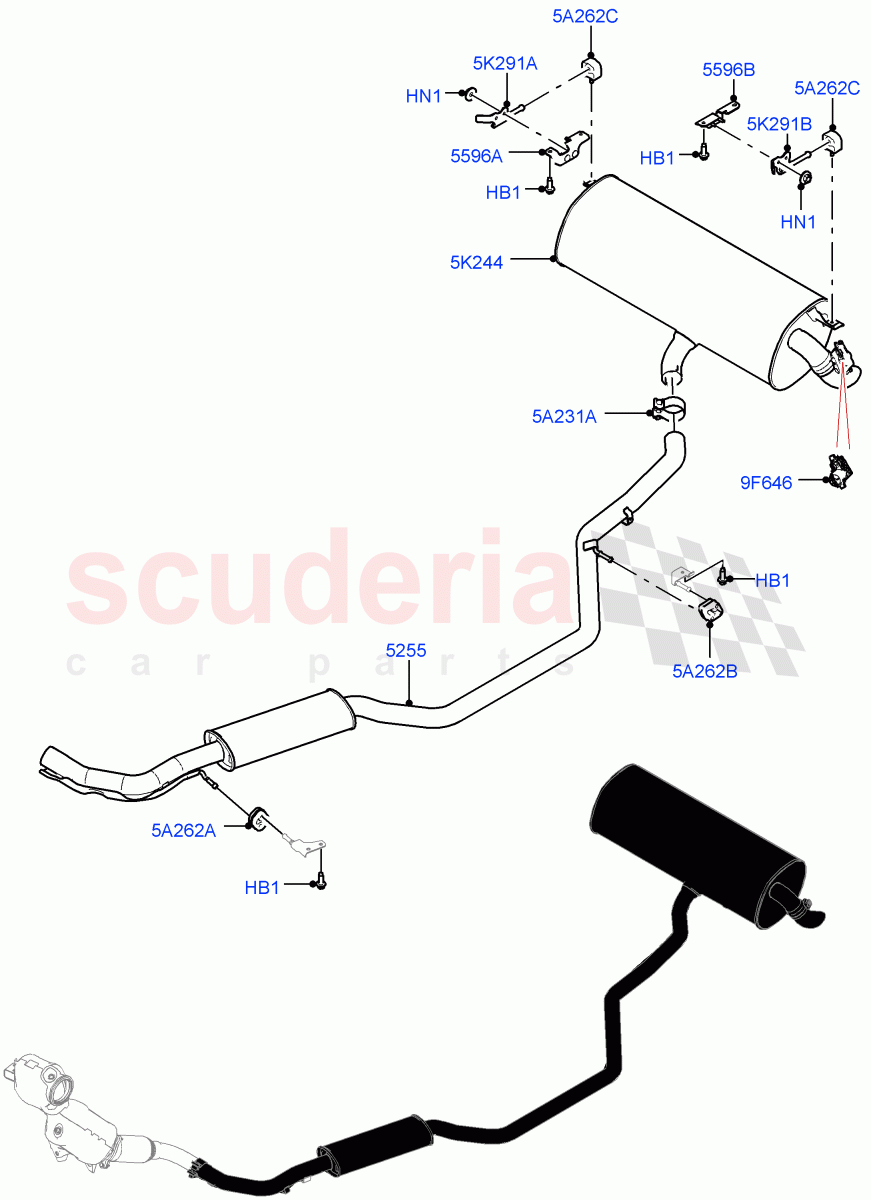

Rear Exhaust System (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM / From: LH000001 		$0.99 7
HN1 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer / From: LH000001 		$0.63 4
5A231A WCL500030
CLAMP - EXHAUST
55MM, Rear / From: LH000001 		$81.53 1
5A262A LR000593
INSULATOR - RUBBER
Front / From: LH000001 		$11.29 1
5A262B LR104929
INSULATOR - RUBBER
Middle / From: LH000001 		$8.97 1
5A262C LR125106
INSULATOR - RUBBER
For Rear Muffler, RH/LH / From: LH000001 		$30.81 2
5K244 LR135634
MUFFLER - REAR
From: LH000001 / To: MH137877 		$1,368.53 1
5K244 LR159478
MUFFLER - REAR
From: MH137878 		$974.50 1
5K291A LR139406
BRACKET
Lower, RH Rear / From: LH000001 		$50.83 1
5K291B LR139407
BRACKET
LH Rear, Lower / From: LH000001 		$45.34 1
9F646 LR137008
ACTUATOR - ELECTRONIC EXHAUST VALVE
From: LH000001 		$290.29 1
5255 LR135598
MUFFLER - CENTRE
From: LH000001 		$734.20 1
5596A LR125427
BRACKET - EXHAUST PIPE MOUNTING
RH Rear, Upper / From: LH000001 		$26.05 1
5596B LR125426
BRACKET - EXHAUST PIPE MOUNTING
LH Rear, Upper / From: LH000001 		$26.05 1
