Inlet Manifold (1.5L Aj20P3 Petrol High, Changsu (China), 1.5L Aj20P3 Petrol High Phev)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Inlet Manifold (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073724 SCREW $1.96 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR130401 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
LR126160 PIN - FASTENING $0.55 IN STOCK
Photo Part No Description Price (each) Stock
LR074074 OIL SPILL GAITER $12.79 To Order
Photo Part No Description Price (each) Stock
LR125565 MANIFOLD - INLET $1,131.07 To Order
Photo Part No Description Price (each) Stock
LR125368 GASKET - INTAKE MANIFOLD $10.76 To Order
Photo Part No Description Price (each) Stock
LR146873 COVER $236.95 To Order
Photo Part No Description Price (each) Stock
LR125369 BOLT - SPECIAL $9.02 To Order
Photo Part No Description Price (each) Stock
LR125445 INSULATOR - CYLINDER HEAD $70.76 To Order
Photo Part No Description Price (each) Stock
LR125370 GASKET - THROTTLE $12.94 To Order
Photo Part No Description Price (each) Stock
LR130316 SENSOR - AIR TEMPERATURE & PRESSURE $114.44 To Order
Photo Part No Description Price (each) Stock
LR125464 CLIP $2.73 To Order
Photo Part No Description Price (each) Stock
LR125487 PIN $9.13 To Order
Photo Part No Description Price (each) Stock
LR025916 STUD - ENGINE COVER $6.69 To Order
Photo Part No Description Price (each) Stock
LR125483 STUD - BALL $2.74 To Order
Photo Part No Description Price (each) Stock
LR126047 BRACKET - MANIFOLD $46.33 To Order
Photo Part No Description Price (each) Stock
LR126046 BRACKET - MANIFOLD $80.77 To Order
View All

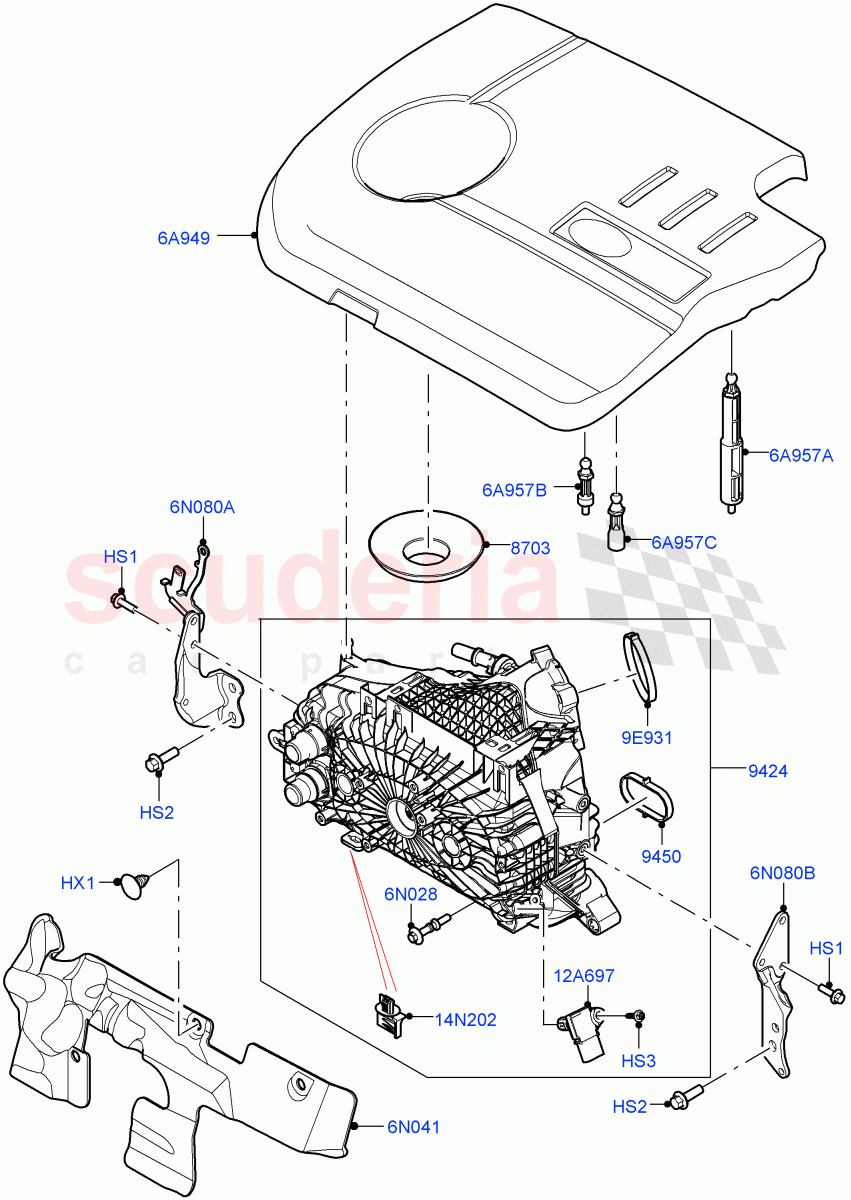

Inlet Manifold (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR073724
SCREW
M8 X 25MM, To Cylinder Head 		$1.96 4
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$1.54 4
HS3 LR130401
SCREW
Hexagonal Head, M5 x 20MM 		$0.76 1
HX1 LR126160
PIN - FASTENING
6.5 x 6
IN STOCK 		$0.55 3
6A949 LR146873
COVER 		$236.95 1
6A957A LR125487
PIN
Rear LH 		$9.13 1
6A957B LR025916
STUD - ENGINE COVER
Rear RH 		$6.69 1
6A957C LR125483
STUD - BALL
LH Front 		$2.74 1
6N028 LR125369
BOLT - SPECIAL
Manifold To Cylinder Head 		$9.02 4
6N041 LR125445
INSULATOR - CYLINDER HEAD 		$70.76 1
6N080A LR126047
BRACKET - MANIFOLD
RH 		$46.33 1
6N080B LR126046
BRACKET - MANIFOLD
LH 		$80.77 1
9E931 LR125370
GASKET - THROTTLE
Throttle Body To Intake 		$12.94 1
12A697 LR130316
SENSOR - AIR TEMPERATURE & PRESSURE 		$114.44 1
14N202 LR125464
CLIP 		$2.73 1
8703 LR074074
OIL SPILL GAITER
Oil Spill 		$12.79 1
9424 LR125565
MANIFOLD - INLET 		$1,131.07 1
9450 LR125368
GASKET - INTAKE MANIFOLD
Inlet Manifold 		$10.76 3
