Cylinder Block And Plugs (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Block And Plugs (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001)

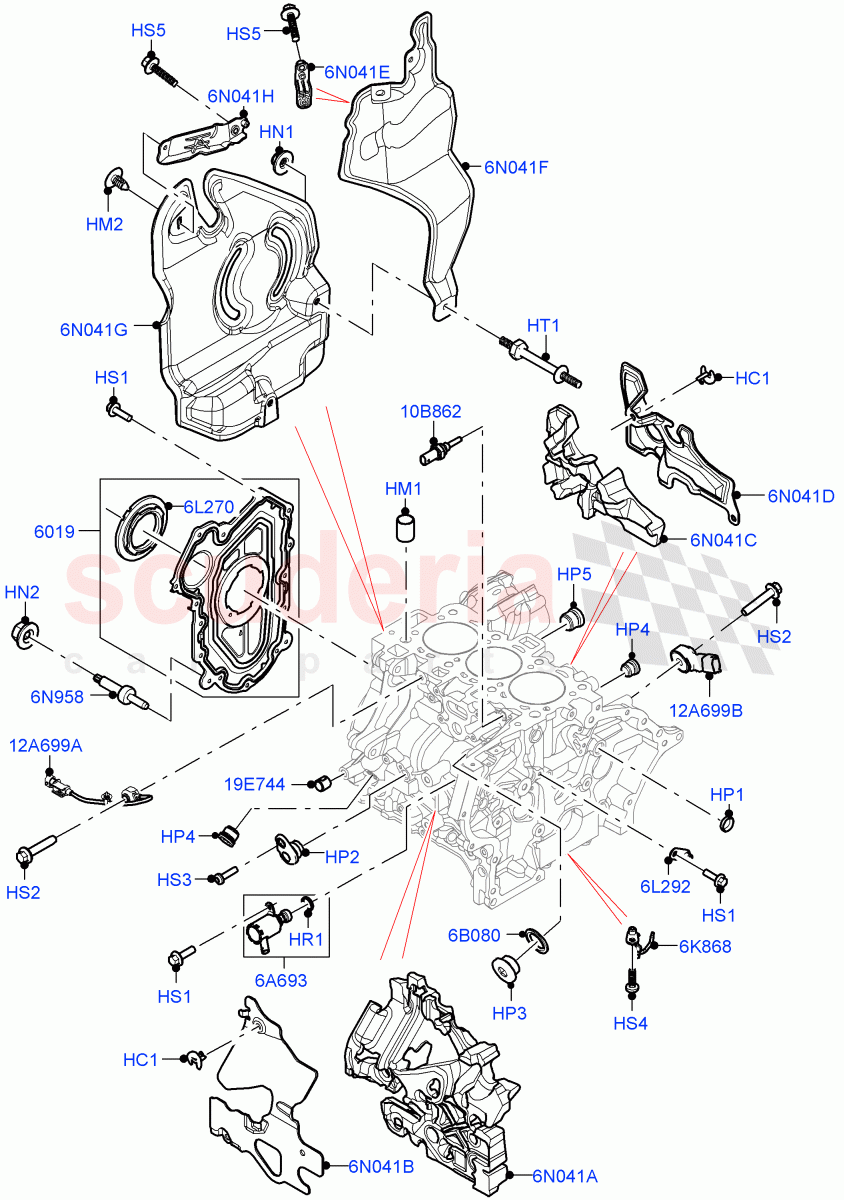

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR126157	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073637	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045542	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092764	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073636	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133917	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163193	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163194	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163195	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095786	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126058	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125450	COVER - CYLINDER FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073684	VALVE - PISTON OIL COOLNG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107013	KIT - "O" RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109352	NOZZLE - PISTON COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118109	SEAL - CRANKSHAFT OIL - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125380	JET - CHAIN LUBRICATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144654	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074067	SENSOR - ENGINE TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125457	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125456	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125455	COVER - INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125454	COVER - INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125446	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125448	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146030	INSULATOR - SOUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125449	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155117	SENSOR - ENGINE KNOCK	Enquire	To Order
	LR155117	SENSOR - ENGINE KNOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155116	SENSOR - ENGINE KNOCK	Enquire	To Order
	LR155116	SENSOR - ENGINE KNOCK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR126157	CLIP - WIRING	LR126157 CLIP - WIRING Insulator / From: LH000001	-	5	Enquire
HM1	LR073637	DOWEL - PIN	LR073637 DOWEL - PIN 16.5 x 20, Pin - Dowell / From: LH000001	-	2	Enquire
HM2	RZM500070	PIN - SPECIAL	RZM500070 PIN - SPECIAL 6.4 X 20.4, Push Pin / From: LH000001	-	4	Enquire
HN1	LR045542	NUT	LR045542 NUT M6, Nut And Washer / From: LH000001	-	1	Enquire
HN2	LR092764	NUT - FLANGED	LR092764 NUT - FLANGED M8 / From: LH000001	-	3	Enquire
HP1	LR073636	PLUG - BLANKING	LR073636 PLUG - BLANKING 18MM, Blanking / From: LH000001	-	4	Enquire
HP2	LR133917	PLUG - BLANKING	LR133917 PLUG - BLANKING Blanking / From: LH000001	-	1	Enquire
HP3	LR163193	PLUG - ENGINE	LR163193 PLUG - ENGINE M22 X 1.5MM / From: LH000001	-	1	Enquire
HP4	LR163194	PLUG - ENGINE	LR163194 PLUG - ENGINE M14 x 9 mm / From: LH000001	-	2	Enquire
HP5	LR163195	PLUG - ENGINE	LR163195 PLUG - ENGINE M18 x 1.5 / From: LH000001	-	1	Enquire
HR1	LR095786	O-RING	LR095786 O-RING 15.3MM, Valve - piston oil cooling / From: LH000001	-	1	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: LH000001	-	13	Enquire
HS2	LR073649	SCREW	LR073649 SCREW Anti-Knock Sensor, M8 x 40MM / From: LH000001	-	2	Enquire
HS3	LR073666	SCREW	LR073666 SCREW Blanking Plug, M5 x 20MM / From: LH000001	-	1	Enquire
HS4	LR073720	SCREW	LR073720 SCREW M6 X 20MM, Oil Lubrication Jet / From: LH000001	-	3	Enquire
HS5	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: LH000001	-	2	Enquire
HT1	LR126058	STUD	LR126058 STUD M6 x 15MM, M6 x 18MM / From: LH000001	-	1	Enquire
6A693	LR073684	VALVE - PISTON OIL COOLNG	LR073684 VALVE - PISTON OIL COOLNG From: LH000001	-	1	Enquire
6B080	LR107013	KIT - "O" RING	LR107013 KIT - "O" RING From: LH000001	-	1	Enquire
6K868	LR109352	NOZZLE - PISTON COOLING	LR109352 NOZZLE - PISTON COOLING From: LH000001	-	3	Enquire
6L270	LR118109	SEAL - CRANKSHAFT OIL - FRONT	LR118109 SEAL - CRANKSHAFT OIL - FRONT From: LH000001	-	1	Enquire
6L292	LR125380	JET - CHAIN LUBRICATING	LR125380 JET - CHAIN LUBRICATING Chain Drive, Primary / From: LH000001	-	1	Enquire
6N041A	LR125457	INSULATOR - ENGINE COMPARTMENT	LR125457 INSULATOR - ENGINE COMPARTMENT Front, Inside / From: LH000001	-	1	Enquire
6N041B	LR125456	INSULATOR - ENGINE COMPARTMENT	LR125456 INSULATOR - ENGINE COMPARTMENT Front / From: LH000001	-	1	Enquire
6N041C	LR125455	COVER - INSULATOR	LR125455 COVER - INSULATOR Inside, Rear / From: LH000001	-	1	Enquire
6N041D	LR125454	COVER - INSULATOR	LR125454 COVER - INSULATOR Rear / From: LH000001	-	1	Enquire
6N041E	LR125446	INSULATOR - CYLINDER HEAD	LR125446 INSULATOR - CYLINDER HEAD Bracket, RH Upper / From: LH000001	-	1	Enquire
6N041F	LR125448	INSULATOR - CYLINDER HEAD	LR125448 INSULATOR - CYLINDER HEAD RH Upper / From: LH000001	-	1	Enquire
6N041G	LR146030	INSULATOR - SOUND	LR146030 INSULATOR - SOUND RH Lower / From: LH000001	-	1	Enquire
6N041H	LR125449	INSULATOR - CYLINDER HEAD	LR125449 INSULATOR - CYLINDER HEAD Bracket, RH Lower / From: LH000001	-	1	Enquire
6N958	LR144654	STUD	LR144654 STUD M6 X 20MM, M8 X 25MM / From: LH000001	-	3	Enquire
10B862	LR074067	SENSOR - ENGINE TEMPERATURE	LR074067 SENSOR - ENGINE TEMPERATURE From: LH000001	-	1	Enquire
12A699A	LR155117	SENSOR - ENGINE KNOCK	LR155117 SENSOR - ENGINE KNOCK Engine Front / From: LH000001 / To: MH133079	-	1	Enquire
12A699A	LR155117	SENSOR - ENGINE KNOCK	LR155117 SENSOR - ENGINE KNOCK Engine Front / From: MH133080	-	1	Enquire
12A699B	LR155116	SENSOR - ENGINE KNOCK	LR155116 SENSOR - ENGINE KNOCK Engine Rear / From: LH000001 / To: MH133079	-	1	Enquire
12A699B	LR155116	SENSOR - ENGINE KNOCK	LR155116 SENSOR - ENGINE KNOCK Engine Rear / From: MH133080	-	1	Enquire
19E744	LR057802	DOWEL - PIN	LR057802 DOWEL - PIN	-	1	Enquire
6019	LR125450	COVER - CYLINDER FRONT	LR125450 COVER - CYLINDER FRONT Engine Front, Includes Seal / From: LH000001	-	1	Enquire
