Front Seat Pads/Valances & Heating (Changsu (China), Seat - Standard) ((V) FROMGG134738) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Front Seat Pads/Valances & Heating (Changsu (China), Seat - Standard) ((V) FROMGG134738)

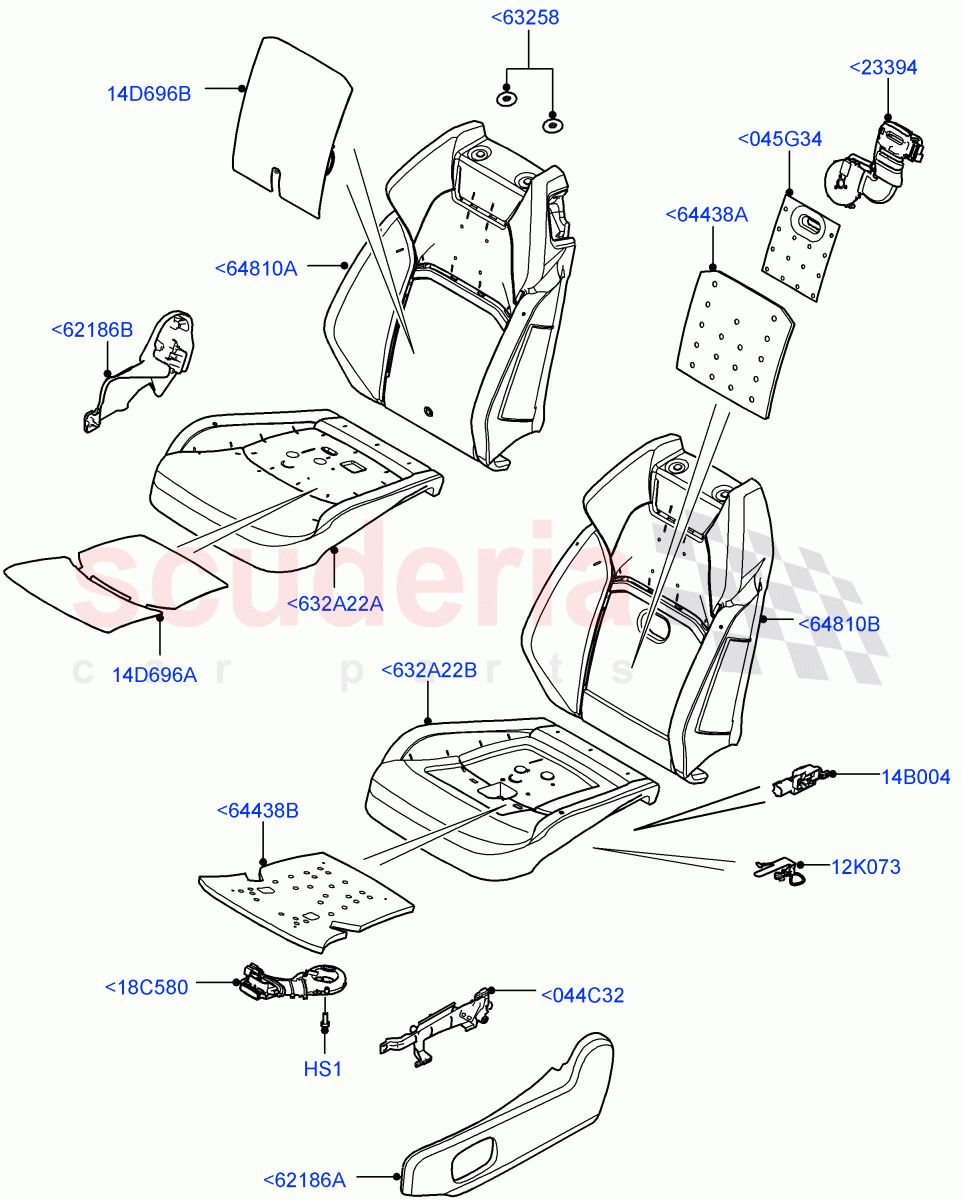

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR114989	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049594	DUCT - SEAT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075354	BEZEL - HEADREST	Enquire	To Order
	LR058693	BEZEL - HEADREST	Enquire	To Order
	LR058694	BEZEL - HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060925	SENSOR - BODY WEIGHT - AIRBAG	Enquire	To Order
	LR115178	SENSOR - BODY WEIGHT - AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087679	SENSOR - SEAT POSITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076049	CARRIER - SEAT VALANCE	Enquire	To Order
	LR076050	CARRIER - SEAT VALANCE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049608	MAT - SEAT VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058767	DUCT - SEAT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069160	VALANCE - SEAT CUSHION	Enquire	To Order
	LR069157	VALANCE - SEAT CUSHION	Enquire	To Order
	LR069158	VALANCE - SEAT CUSHION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR069179	VALANCE - SEAT CUSHION	Enquire	To Order
	LR069182	VALANCE - SEAT CUSHION	Enquire	To Order
	LR069183	VALANCE - SEAT CUSHION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR069605	FILLER - SEAT INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069625	PAD - SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083457	PAD - SEAT BACK	Enquire	To Order
	LR083461	PAD - SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083459	PAD - SEAT BACK	Enquire	To Order
	LR083463	PAD - SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069168	ELEMENT - FRONT SEAT CUSHION HEATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069604	ELEMENT - FRONT SEAT BACK HEATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083475	PAD - SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069378	PAD - SEAT CUSHION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<18C580	LR058767	DUCT - SEAT - AIR	LR058767 DUCT - SEAT - AIR With Heated/Cooled Front Seats Only / For Seat Cushion / From: GG134738	-	2	Enquire
<044C32	LR076049	CARRIER - SEAT VALANCE	LR076049 CARRIER - SEAT VALANCE RH / From: GG134738	-	1	Enquire
<044C32	LR076050	CARRIER - SEAT VALANCE	LR076050 CARRIER - SEAT VALANCE LH / From: GG134738	-	1	Enquire
<045G34	LR049608	MAT - SEAT VENT	LR049608 MAT - SEAT VENT Heated/Cooled Front - Heated Rear / From: GG134738	-	2	Enquire
<632A22A	LR083475	PAD - SEAT CUSHION	LR083475 PAD - SEAT CUSHION Heated Seats - Drivers/Passengers / From: GG134738	-	2	Enquire
<632A22B	LR069378	PAD - SEAT CUSHION	LR069378 PAD - SEAT CUSHION Heated/Cooled Front - Heated Rear / From: GG134738	-	2	Enquire
<23394	LR049594	DUCT - SEAT - AIR	LR049594 DUCT - SEAT - AIR Heated/Cooled Front - Heated Rear / RH/LH, Seat Back / From: GG134738	-	2	Enquire
<62186A	LR069160	VALANCE - SEAT CUSHION	LR069160 VALANCE - SEAT CUSHION Electric Front Seat Adj Non-Memory, Ivory/Lunar / RH, Outer / From: GG134738	-	1	Enquire
<62186A	LR069157	VALANCE - SEAT CUSHION	LR069157 VALANCE - SEAT CUSHION Driver/Pass Elec Fr Seat Adj/Memory, Ebony Black/Ebony Black Interior / RH, Outer / From: GG134738	-	1	Enquire
<62186A	LR069158	VALANCE - SEAT CUSHION	LR069158 VALANCE - SEAT CUSHION Almond, Electric Front Seat Adj Non-Memory / RH, Outer / From: GG134738	-	1	Enquire
<62186A	LR069161	VALANCE - SEAT CUSHION	LR069161 VALANCE - SEAT CUSHION Electric Front Seat Adj Non-Memory, Ivory/Lunar / LH, Outer / From: GG134738	-	1	Enquire
<62186A	LR069165	VALANCE - SEAT CUSHION	LR069165 VALANCE - SEAT CUSHION Driver/Pass Elec Fr Seat Adj/Memory, Ebony Black/Ebony Black Interior / LH, Outer / From: GG134738	-	1	Enquire
<62186A	LR069167	VALANCE - SEAT CUSHION	LR069167 VALANCE - SEAT CUSHION Almond, Electric Front Seat Adj Non-Memory / LH, Outer / From: GG134738	-	1	Enquire
<62186B	LR069179	VALANCE - SEAT CUSHION	LR069179 VALANCE - SEAT CUSHION Ivory/Lunar / Inner, RH Seat / From: GG134738	-	1	Enquire
<62186B	LR069182	VALANCE - SEAT CUSHION	LR069182 VALANCE - SEAT CUSHION Ebony/Lunar / Inner, RH Seat / From: GG134738	-	1	Enquire
<62186B	LR069183	VALANCE - SEAT CUSHION	LR069183 VALANCE - SEAT CUSHION Almond / Inner, RH Seat / From: GG134738	-	1	Enquire
<62186B	LR069207	VALANCE - SEAT CUSHION	LR069207 VALANCE - SEAT CUSHION Ivory/Lunar / Inner, LH Seat / From: GG134738	-	1	Enquire
<62186B	LR069212	VALANCE - SEAT CUSHION	LR069212 VALANCE - SEAT CUSHION Ebony/Lunar / Inner, LH Seat / From: GG134738	-	1	Enquire
<62186B	LR069213	VALANCE - SEAT CUSHION	LR069213 VALANCE - SEAT CUSHION Almond / Inner, LH Seat / From: GG134738	-	1	Enquire
<63258	LR075354	BEZEL - HEADREST	LR075354 BEZEL - HEADREST Ivory/Lunar / From: GG134738	-	4	Enquire
<63258	LR058693	BEZEL - HEADREST	LR058693 BEZEL - HEADREST Ebony/Lunar / From: GG134738	-	4	Enquire
<63258	LR058694	BEZEL - HEADREST	LR058694 BEZEL - HEADREST Almond / From: GG134738	-	4	Enquire
<64438A	LR069605	FILLER - SEAT INSERT	LR069605 FILLER - SEAT INSERT Heated/Cooled Front - Heated Rear / For Seat Back, Insert / From: GG134738	-	2	Enquire
<64438B	LR069625	PAD - SEAT CUSHION	LR069625 PAD - SEAT CUSHION Heated/Cooled Front - Heated Rear / For Seat Cushion, Insert / From: GG134738	-	2	Enquire
<64810A	LR083457	PAD - SEAT BACK	LR083457 PAD - SEAT BACK Less Seat Temperature Control / RH / From: GG134738	-	1	Enquire
<64810A	LR083461	PAD - SEAT BACK	LR083461 PAD - SEAT BACK Less Seat Temperature Control / LH / From: GG134738	-	1	Enquire
<64810B	LR083459	PAD - SEAT BACK	LR083459 PAD - SEAT BACK Heated/Cooled Front - Heated Rear / RH / From: GG134738	-	1	Enquire
<64810B	LR083463	PAD - SEAT BACK	LR083463 PAD - SEAT BACK Heated/Cooled Front - Heated Rear / LH / From: GG134738	-	1	Enquire
HS1	LR114989	SCREW	LR114989 SCREW Lower / From: GG134738	-	8	Enquire
12K073	LR060925	SENSOR - BODY WEIGHT - AIRBAG	LR060925 SENSOR - BODY WEIGHT - AIRBAG For Passenger Front Seat / From: GG134738 / To: JG172489	-	1	Enquire
12K073	LR115178	SENSOR - BODY WEIGHT - AIRBAG	LR115178 SENSOR - BODY WEIGHT - AIRBAG From: JG172490	-	1	Enquire
14B004	LR087679	SENSOR - SEAT POSITION	LR087679 SENSOR - SEAT POSITION Sensor - Occupant Classification / Sensor - Seat Track Position / From: GG134738	-	1	Enquire
14D696A	LR069168	ELEMENT - FRONT SEAT CUSHION HEATING	LR069168 ELEMENT - FRONT SEAT CUSHION HEATING Heated Seats - Drivers/Passengers / For Seat Cushion / From: GG134738	-	2	Enquire
14D696B	LR069604	ELEMENT - FRONT SEAT BACK HEATING	LR069604 ELEMENT - FRONT SEAT BACK HEATING Heated Seats - Drivers/Passengers / For Seat Back / From: GG134738	-	2	Enquire
