Front Seat Back (Changsu (China), Seat - Standard) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Front Seat Back (Changsu (China), Seat - Standard) ((V) FROMEG000001)

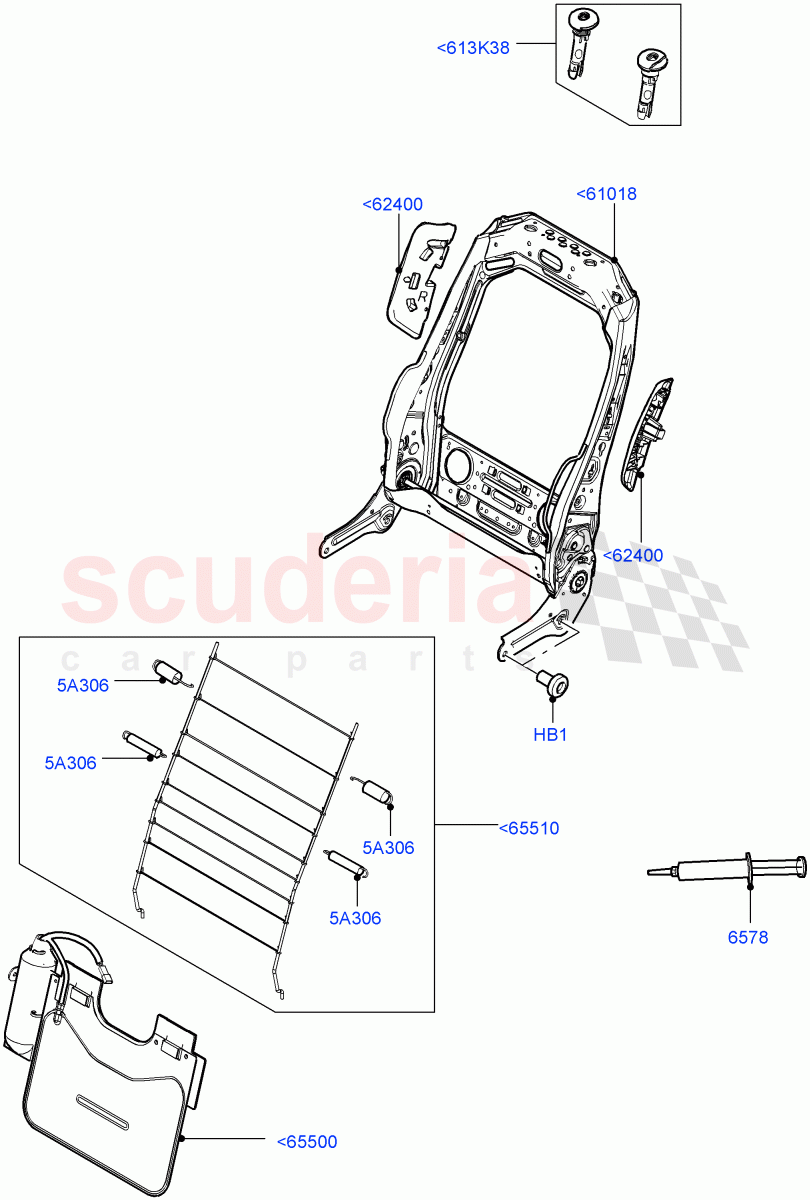

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR031749	BOLT - SQUAB FRAME TO CUSHION	Enquire	To Order
	LR078208	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067775	KIT - GREASE APPLICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HGF500030	RETAINER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065115	FRAME - SEAT	Enquire	To Order
	LR065117	FRAME - SEAT	Enquire	To Order
	LR084018	FRAME - SEAT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027118	SUPPORT - SEAT VALANCE	Enquire	To Order
	LR027119	SUPPORT - SEAT VALANCE	Enquire	To Order
	LR084717	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071985	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR071987	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR069174	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036086	SUPPORT - FRONT SEAT SQUAB	Enquire	To Order
	LR058814	SUPPORT - FRONT SEAT SQUAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026763	BRACKET - ENGINE COVER	Enquire	To Order
	LR026764	SLEEVE - HEADREST GUIDE	Enquire	To Order
	LR026766	SLEEVE - HEADREST GUIDE	Enquire	To Order

...and 8 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<613K38	LR026763	BRACKET - ENGINE COVER	LR026763 BRACKET - ENGINE COVER I/P Facia Contrast-Espresso/Ivory, Tan / Locking Type / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR026764	SLEEVE - HEADREST GUIDE	LR026764 SLEEVE - HEADREST GUIDE Ivory/Lunar / Locking Type / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR026766	SLEEVE - HEADREST GUIDE	LR026766 SLEEVE - HEADREST GUIDE Ivory / Locking Type / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR026767	SLEEVE - HEADREST GUIDE	LR026767 SLEEVE - HEADREST GUIDE I/P Facia Contrast - Ebony Black, Tan / Locking Type / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR026768	SLEEVE - HEADREST GUIDE	LR026768 SLEEVE - HEADREST GUIDE Almond / Locking Type / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR036038	SLEEVE - HEADREST GUIDE	LR036038 SLEEVE - HEADREST GUIDE I/P Facia Contrast-Espresso/Ivory, Tan / Non Locking / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR036039	SLEEVE - HEADREST GUIDE	LR036039 SLEEVE - HEADREST GUIDE Ivory/Lunar / Non Locking / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR036041	SLEEVE - HEADREST GUIDE	LR036041 SLEEVE - HEADREST GUIDE Ivory / Non Locking / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR036042	SLEEVE - HEADREST GUIDE	LR036042 SLEEVE - HEADREST GUIDE I/P Facia Contrast - Ebony Black, Tan / Non Locking / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR036043	SLEEVE - HEADREST GUIDE	LR036043 SLEEVE - HEADREST GUIDE Almond / Non Locking / From: EG000001 / To: GG134737	-	2	Enquire
<613K38	LR074206	SLEEVE - HEADREST GUIDE	LR074206 SLEEVE - HEADREST GUIDE From: GG134738	-	4	Enquire
<61018	LR065115	FRAME - SEAT	LR065115 FRAME - SEAT Electric Front Seat Adj Drv Memory / Includes Motor - Not Serviced Separately / From: EG000001 / To: GG134737	-	1	Enquire
<61018	LR065117	FRAME - SEAT	LR065117 FRAME - SEAT Electric Front Seat Adj Non-Memory / Includes Motor - Not Serviced Separately / From: EG000001 / To: GG134737	-	1	Enquire
<61018	LR084018	FRAME - SEAT	LR084018 FRAME - SEAT Electric Front Seat Adj Non-Memory / Includes Motor - Not Serviced Separately, Please Consider Repair Using Repair Component LR154977 / From: GG134738 / To: JG167671	-	2	Enquire
<61018	LR084019	FRAME - SEAT	LR084019 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / Includes Motor - Not Serviced Separately, Please Consider Repair Using Repair Component LR154977 / From: GG134738 / To: JG167671	-	2	Enquire
<61018	LR108502	FRAME - SEAT	LR108502 FRAME - SEAT Electric Front Seat Adj Non-Memory / Includes Motor - Not Serviced Separately, Please Consider Repair Using Repair Component LR154977 / From: JG167672	-	2	Enquire
<61018	LR108501	FRAME - SEAT	LR108501 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / Includes Motor - Not Serviced Separately, Please Consider Repair Using Repair Component LR154977 / From: JG167672	-	2	Enquire
<62400	LR027118	SUPPORT - SEAT VALANCE	LR027118 SUPPORT - SEAT VALANCE RH / From: EG000001 / To: GG134737	-	2	Enquire
<62400	LR027119	SUPPORT - SEAT VALANCE	LR027119 SUPPORT - SEAT VALANCE LH / From: EG000001 / To: GG134737	-	2	Enquire
<62400	LR084717	SUPPORT - SEAT BACK - LUMBAR	LR084717 SUPPORT - SEAT BACK - LUMBAR RH / From: GG143868	-	2	Enquire
<62400	LR084718	SUPPORT - SEAT BACK - LUMBAR	LR084718 SUPPORT - SEAT BACK - LUMBAR LH / From: GG143868	-	2	Enquire
<62400	LR065751	SUPPORT - SEAT BACK - LUMBAR	LR065751 SUPPORT - SEAT BACK - LUMBAR RH / From: GG134738 / To: GG143867	-	2	Enquire
<62400	LR065752	SUPPORT - SEAT BACK - LUMBAR	LR065752 SUPPORT - SEAT BACK - LUMBAR LH / From: GG134738 / To: GG143867	-	2	Enquire
<65500	LR071985	SUPPORT - SEAT BACK - LUMBAR	LR071985 SUPPORT - SEAT BACK - LUMBAR Less Seat Temperature Control, With Drivers Power Lumbar Support / From: EG000001 / To: GG134737	-	2	Enquire
<65500	LR071987	SUPPORT - SEAT BACK - LUMBAR	LR071987 SUPPORT - SEAT BACK - LUMBAR Heated/Cooled Front - Heated Rear, With Drivers Power Lumbar Support / From: EG000001 / To: GG134737	-	2	Enquire
<65500	LR069174	SUPPORT - SEAT BACK - LUMBAR	LR069174 SUPPORT - SEAT BACK - LUMBAR Lumbar Seat - 4 Way Driver / From: GG134738	-	2	Enquire
<65500	LR069176	SUPPORT - SEAT BACK - LUMBAR	LR069176 SUPPORT - SEAT BACK - LUMBAR Lmbr Seat-4 Way Adjustabl Blstr Drv / From: GG134738	-	2	Enquire
<65500	LR080139	SUPPORT - SEAT BACK - LUMBAR	LR080139 SUPPORT - SEAT BACK - LUMBAR Lumbr Massge-Adjustable Bolster Drv / From: GG134738	-	2	Enquire
<65510	LR036086	SUPPORT - FRONT SEAT SQUAB	LR036086 SUPPORT - FRONT SEAT SQUAB From: EG000001 / To: GG134737	-	2	Enquire
<65510	LR058814	SUPPORT - FRONT SEAT SQUAB	LR058814 SUPPORT - FRONT SEAT SQUAB From: GG134738	-	2	Enquire
HB1	LR031749	BOLT - SQUAB FRAME TO CUSHION	LR031749 BOLT - SQUAB FRAME TO CUSHION Seat Frame / From: EG000001 / To: GG134737	-	8	Enquire
HB1	LR078208	BOLT	LR078208 BOLT Seat Frame / From: GG134738	-	8	Enquire
5A306	HGF500030	RETAINER - SPRING	HGF500030 RETAINER - SPRING From: EG000001	-	2	Enquire
6578	LR067775	KIT - GREASE APPLICATION	LR067775 KIT - GREASE APPLICATION grease, Service Kit / From: EG000001	-	1	Enquire
