Air Conditioning System (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Air Conditioning System (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 High DOHC AJ200 Petrol,...

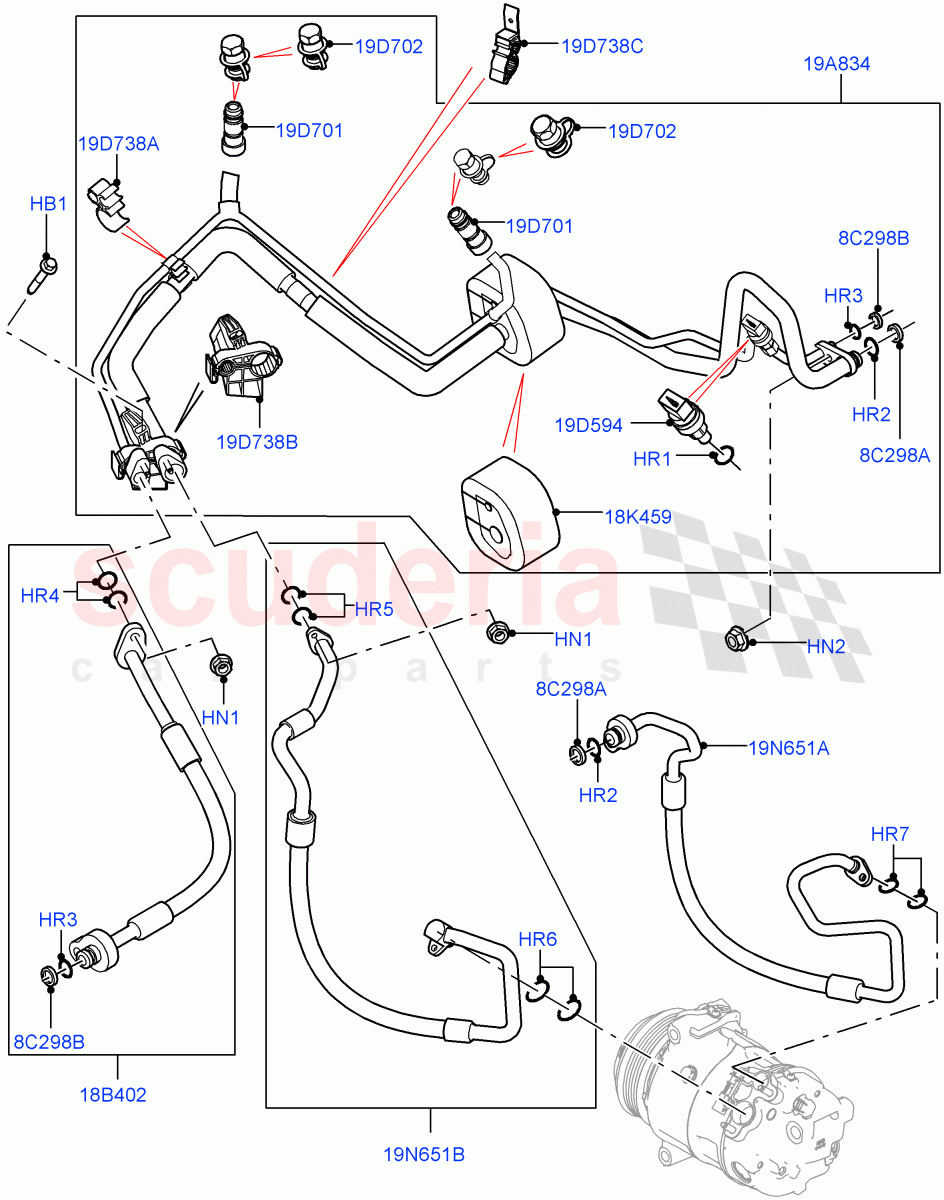

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010925	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002718	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002724	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002719	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044465	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054870	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054871	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027790	HOSE - AIR CONDITIONING	Enquire	To Order
	LR105245	HOSE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020017	SLEEVE - INSULATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070474	TUBE- A/C EVAPORATOR INLET & OUTLET	Enquire	To Order
	LR070473	TUBE- A/C EVAPORATOR INLET & OUTLET	Enquire	To Order
	LR079428	TUBE- A/C EVAPORATOR INLET & OUTLET	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012018	SWITCH - AIR CONDIT.SYSTEM - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096516	VALVE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088581	CAP - VALVE	Enquire	To Order
	LR096515	CAP - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003186	INSERT - RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003185	INSERT - RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010311	BRACKET - A/C PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002655	BRACKET - COOLING HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002629	BRACKET - A/C PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070476	TUBE AND HOSE-A/C COMPRESSOR OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070477	TUBE - COMPRESSOR DELIVERY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010925	BOLT	LR010925 BOLT Hexagonal Head, M6 x 50MM / From: GH000001	-	1	Enquire
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8 / From: GH000001	-	2	Enquire
HN2	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: GH000001	-	3	Enquire
HR1	LR002718	O-RING	LR002718 O-RING 7.66 x 1.78mm / From: GH000001	-	1	Enquire
HR2	LR002724	O-RING	LR002724 O-RING 13.7 X 2.5MM / From: GH000001	-	3	Enquire
HR3	LR002719	O-RING	LR002719 O-RING 9.5 X 2.5MM / From: GH000001	-	2	Enquire
HR4	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78 / From: GH000001	-	2	Enquire
HR5	LR044465	O-RING	LR044465 O-RING 14 X 1.78 / From: GH000001	-	2	Enquire
HR6	LR054870	O-RING	LR054870 O-RING 16.5 X 1.78MM / From: GH000001	-	2	Enquire
HR7	LR054871	O-RING	LR054871 O-RING 10.82MM X 1.78MM / From: GH000001	-	2	Enquire
8C298A	LR003186	INSERT - RING	LR003186 INSERT - RING	-	1	Enquire
8C298B	LR003185	INSERT - RING	LR003185 INSERT - RING From: GH000001	-	1	Enquire
18B402	LR027790	HOSE - AIR CONDITIONING	LR027790 HOSE - AIR CONDITIONING From: GH000001 / To: HH999999	-	1	Enquire
18B402	LR105245	HOSE - AIR CONDITIONING	LR105245 HOSE - AIR CONDITIONING From: JH000001	-	1	Enquire
18K459	LR020017	SLEEVE - INSULATING	LR020017 SLEEVE - INSULATING From: GH000001	-	1	Enquire
19A834	LR070474	TUBE- A/C EVAPORATOR INLET & OUTLET	LR070474 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: GH000001 / To: GH093405	-	1	Enquire
19A834	LR070473	TUBE- A/C EVAPORATOR INLET & OUTLET	LR070473 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / From: GH000001 / To: GH093405	-	1	Enquire
19A834	LR079428	TUBE- A/C EVAPORATOR INLET & OUTLET	LR079428 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: GH093406 / To: HH999999	-	1	Enquire
19A834	LR079425	TUBE- A/C EVAPORATOR INLET & OUTLET	LR079425 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / From: GH093406 / To: HH200519	-	1	Enquire
19A834	LR094024	TUBE- A/C EVAPORATOR INLET & OUTLET	LR094024 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / From: HH200520 / To: HH999999	-	1	Enquire
19A834	LR094352	TUBE- A/C EVAPORATOR INLET & OUTLET	LR094352 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: JH000001 / To: JH320554	-	1	Enquire
19A834	LR094351	TUBE- A/C EVAPORATOR INLET & OUTLET	LR094351 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / From: JH000001 / To: JH320554	-	1	Enquire
19A834	LR116434	TUBE- A/C EVAPORATOR INLET & OUTLET	LR116434 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / From: JH320555	-	1	Enquire
19A834	LR116435	TUBE- A/C EVAPORATOR INLET & OUTLET	LR116435 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: JH320555	-	1	Enquire
19D594	LR012018	SWITCH - AIR CONDIT.SYSTEM - VACUUM	LR012018 SWITCH - AIR CONDIT.SYSTEM - VACUUM Pressure Sensor / From: GH000001	-	1	Enquire
19D701	LR096516	VALVE - AIR CONDITIONING	LR096516 VALVE - AIR CONDITIONING From: GH000001	-	2	Enquire
19D702	LR088581	CAP - VALVE	LR088581 CAP - VALVE Air Con Refrigerant-HF01234YF / Grey / From: GH000001	-	2	Enquire
19D702	LR096515	CAP - VALVE	LR096515 CAP - VALVE Air Conditioning Refrigerant-R134A / Black / From: GH000001	-	2	Enquire
19D738A	LR010311	BRACKET - A/C PIPE	LR010311 BRACKET - A/C PIPE From: GH000001	-	1	Enquire
19D738B	LR002655	BRACKET - COOLING HOSE	LR002655 BRACKET - COOLING HOSE Triple / From: GH000001	-	1	Enquire
19D738C	LR002629	BRACKET - A/C PIPE	LR002629 BRACKET - A/C PIPE For Air Conditioning / From: GH000001	-	1	Enquire
19N651A	LR070476	TUBE AND HOSE-A/C COMPRESSOR OUTLET	LR070476 TUBE AND HOSE-A/C COMPRESSOR OUTLET Outlet / From: GH000001	-	1	Enquire
19N651B	LR070477	TUBE - COMPRESSOR DELIVERY	LR070477 TUBE - COMPRESSOR DELIVERY Inlet / From: GH000001	-	1	Enquire
