Air Conditioning System (2.2L CR DI 16V Diesel, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Air Conditioning System (2.2L CR DI 16V Diesel, Halewood (UK))

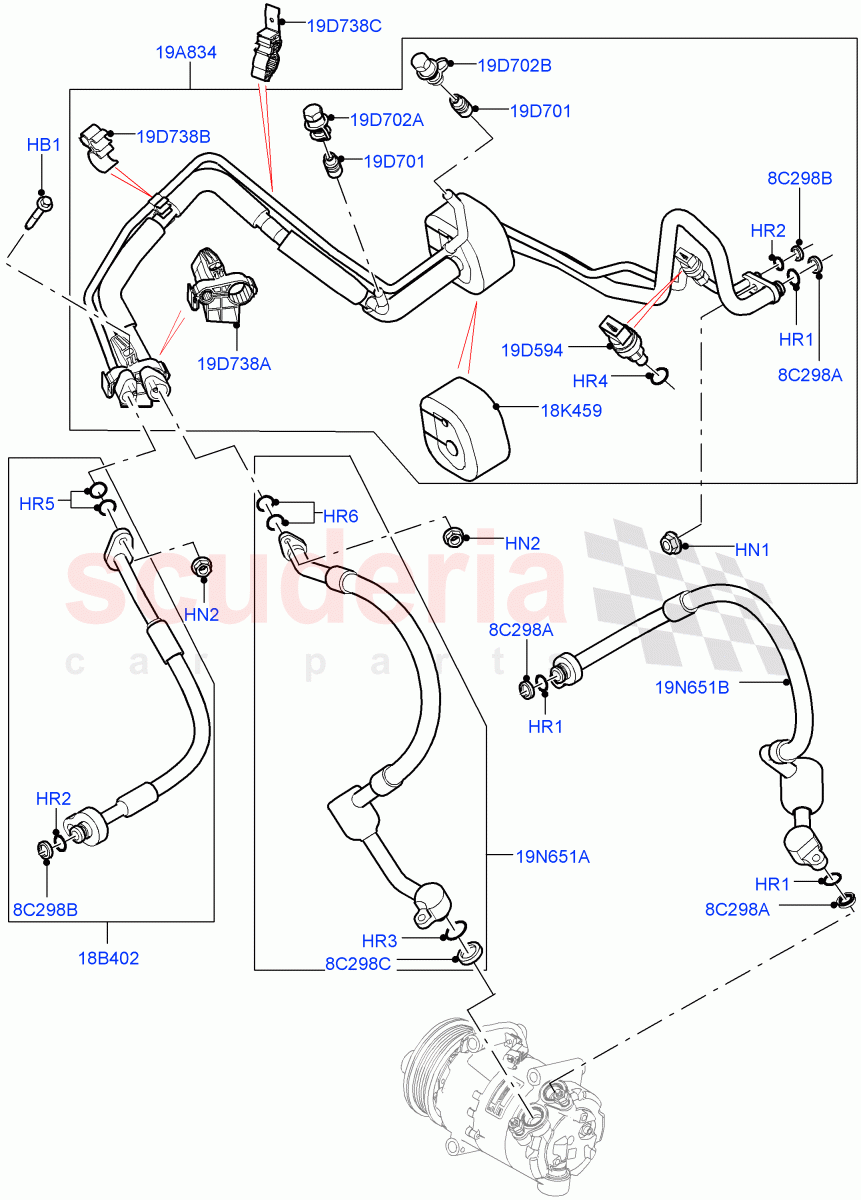

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010925	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002724	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002719	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002720	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002718	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044465	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027790	HOSE - AIR CONDITIONING	Enquire	To Order
	LR105245	HOSE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020017	SLEEVE - INSULATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027792	TUBE- A/C EVAPORATOR INLET & OUTLET	Enquire	To Order
	LR048483	TUBE - A/C EVAPORATOR INLET & OUTLET	Enquire	To Order
	LR032972	TUBE- A/C EVAPORATOR INLET & OUTLET	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012018	SWITCH - AIR CONDIT.SYSTEM - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088548	VALVE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003186	INSERT - RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003185	INSERT - RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003187	INSERT - RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002653	CAP - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002654	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010311	BRACKET - A/C PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002655	BRACKET - COOLING HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002629	BRACKET - A/C PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027799	TUBE AND HOSE-A/C COMPRESSOR INLET	Enquire	To Order
	LR067705	TUBE AND HOSE-A/C COMPRESSOR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027803	TUBE AND HOSE-A/C COMPRESSOR OUTLET	Enquire	To Order
	LR039620	TUBE AND HOSE-A/C COMPRESSOR OUTLET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010925	BOLT	LR010925 BOLT Hexagonal Head, M6 x 50MM	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	3	Enquire
HN2	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8	-	4	Enquire
HR1	LR002724	O-RING	LR002724 O-RING 13.7 X 2.5MM	-	3	Enquire
HR2	LR002719	O-RING	LR002719 O-RING 9.5 X 2.5MM	-	2	Enquire
HR3	LR002720	O-RING	LR002720 O-RING 16.25 X 2.5MM	-	2	Enquire
HR4	LR002718	O-RING	LR002718 O-RING 7.66 x 1.78mm	-	1	Enquire
HR5	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78	-	2	Enquire
HR6	LR044465	O-RING	LR044465 O-RING 14 X 1.78	-	2	Enquire
8C298A	LR003186	INSERT - RING	LR003186 INSERT - RING	-	3	Enquire
8C298B	LR003185	INSERT - RING	LR003185 INSERT - RING	-	2	Enquire
8C298C	LR003187	INSERT - RING	LR003187 INSERT - RING	-	2	Enquire
18B402	LR027790	HOSE - AIR CONDITIONING	LR027790 HOSE - AIR CONDITIONING To: HH999999	-	1	Enquire
18B402	LR105245	HOSE - AIR CONDITIONING	LR105245 HOSE - AIR CONDITIONING From: JH000001	-	1	Enquire
18K459	LR020017	SLEEVE - INSULATING	LR020017 SLEEVE - INSULATING	-	1	Enquire
19A834	LR027792	TUBE- A/C EVAPORATOR INLET & OUTLET	LR027792 TUBE- A/C EVAPORATOR INLET & OUTLET To: CH627103	-	1	Enquire
19A834	LR048483	TUBE - A/C EVAPORATOR INLET & OUTLET	LR048483 TUBE - A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / From: EH000001 / To: FH999999	-	1	Enquire
19A834	LR032972	TUBE- A/C EVAPORATOR INLET & OUTLET	LR032972 TUBE- A/C EVAPORATOR INLET & OUTLET From: CH627104 / To: CH999999	-	1	Enquire
19A834	LR032972	TUBE- A/C EVAPORATOR INLET & OUTLET	LR032972 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: DH000001 / To: DH740902	-	1	Enquire
19A834	LR044679	TUBE- A/C EVAPORATOR INLET & OUTLET	LR044679 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: DH740903 / To: DH810029	-	1	Enquire
19A834	LR052263	TUBE- A/C EVAPORATOR INLET & OUTLET	LR052263 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: DH810030 / To: DH999999	-	1	Enquire
19A834	LR040134	TUBE- A/C EVAPORATOR INLET & OUTLET	LR040134 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / From: DH000001 / To: DH807009	-	1	Enquire
19A834	LR052265	TUBE- A/C EVAPORATOR INLET & OUTLET	LR052265 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / From: DH807010 / To: DH999999	-	1	Enquire
19A834	LR048509	TUBE- A/C EVAPORATOR INLET & OUTLET	LR048509 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: EH000001 / To: EH958924	-	1	Enquire
19A834	LR066209	TUBE- A/C EVAPORATOR INLET & OUTLET	LR066209 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: EH958925 / To: FH999999	-	1	Enquire
19A834	LR070474	TUBE- A/C EVAPORATOR INLET & OUTLET	LR070474 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / From: GH000001	-	1	Enquire
19D594	LR012018	SWITCH - AIR CONDIT.SYSTEM - VACUUM	LR012018 SWITCH - AIR CONDIT.SYSTEM - VACUUM Pressure Sensor	-	1	Enquire
19D701	LR088548	VALVE - AIR CONDITIONING	LR088548 VALVE - AIR CONDITIONING From: DH000001 / To: FH999999	-	2	Enquire
19D702A	LR002653	CAP - VALVE	LR002653 CAP - VALVE High Pressure Servicing Connection	-	1	Enquire
19D702B	LR002654	CAP	LR002654 CAP Low Pressure Servicing Connection	-	1	Enquire
19D738A	LR010311	BRACKET - A/C PIPE	LR010311 BRACKET - A/C PIPE	-	1	Enquire
19D738B	LR002655	BRACKET - COOLING HOSE	LR002655 BRACKET - COOLING HOSE Triple	-	1	Enquire
19D738C	LR002629	BRACKET - A/C PIPE	LR002629 BRACKET - A/C PIPE For Air Conditioning	-	1	Enquire
19N651A	LR027799	TUBE AND HOSE-A/C COMPRESSOR INLET	LR027799 TUBE AND HOSE-A/C COMPRESSOR INLET Inlet / To: FH003103	-	1	Enquire
19N651A	LR067705	TUBE AND HOSE-A/C COMPRESSOR INLET	LR067705 TUBE AND HOSE-A/C COMPRESSOR INLET Inlet / From: FH003104	-	1	Enquire
19N651B	LR027803	TUBE AND HOSE-A/C COMPRESSOR OUTLET	LR027803 TUBE AND HOSE-A/C COMPRESSOR OUTLET Outlet / To: CH640817	-	1	Enquire
19N651B	LR039620	TUBE AND HOSE-A/C COMPRESSOR OUTLET	LR039620 TUBE AND HOSE-A/C COMPRESSOR OUTLET Outlet / From: CH640818	-	1	Enquire
