Transmission External Components (9 Speed Auto Awd, Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Transmission External Components (9 Speed Auto AWD, Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR086163 SEAL - SELECTOR SHAFT $94.01 To Order
Photo Part No Description Price (each) Stock
LR123857 KIT - SLEEVE TRANSMISSION $444.41 IN STOCK
LR123857 KIT - SLEEVE TRANSMISSION $444.41 IN STOCK
Photo Part No Description Price (each) Stock
LR086162 PAN - TRANSMISSION OIL $381.25 To Order
Photo Part No Description Price (each) Stock
LR049899 SEAL - CONVERTER $86.81 To Order
Photo Part No Description Price (each) Stock
IYX500050 KIT - GREASE AND ORING $24.24 To Order
Photo Part No Description Price (each) Stock
LR049876 PLUG - TRANSMISSION $38.35 To Order
Photo Part No Description Price (each) Stock
LR086169 KIT - OIL PIPE $103.15 To Order
Photo Part No Description Price (each) Stock
LR123856 SEAL - OUTPUT SHAFT OIL $109.00 To Order
LR123856 SEAL - OUTPUT SHAFT OIL $109.00 To Order
Photo Part No Description Price (each) Stock
LR049886 SEAL - OUTPUT SHAFT OIL $98.40 To Order
Photo Part No Description Price (each) Stock
LR086158 COVER PLATE - TRANSMISSION $636.95 To Order
LR123896 COVER PLATE - TRANSMISSION $585.27 To Order
Photo Part No Description Price (each) Stock
LR086413 KIT - FIXING PARTS $41.86 To Order
LR123903 KIT - FIXING PARTS $47.18 To Order
View All

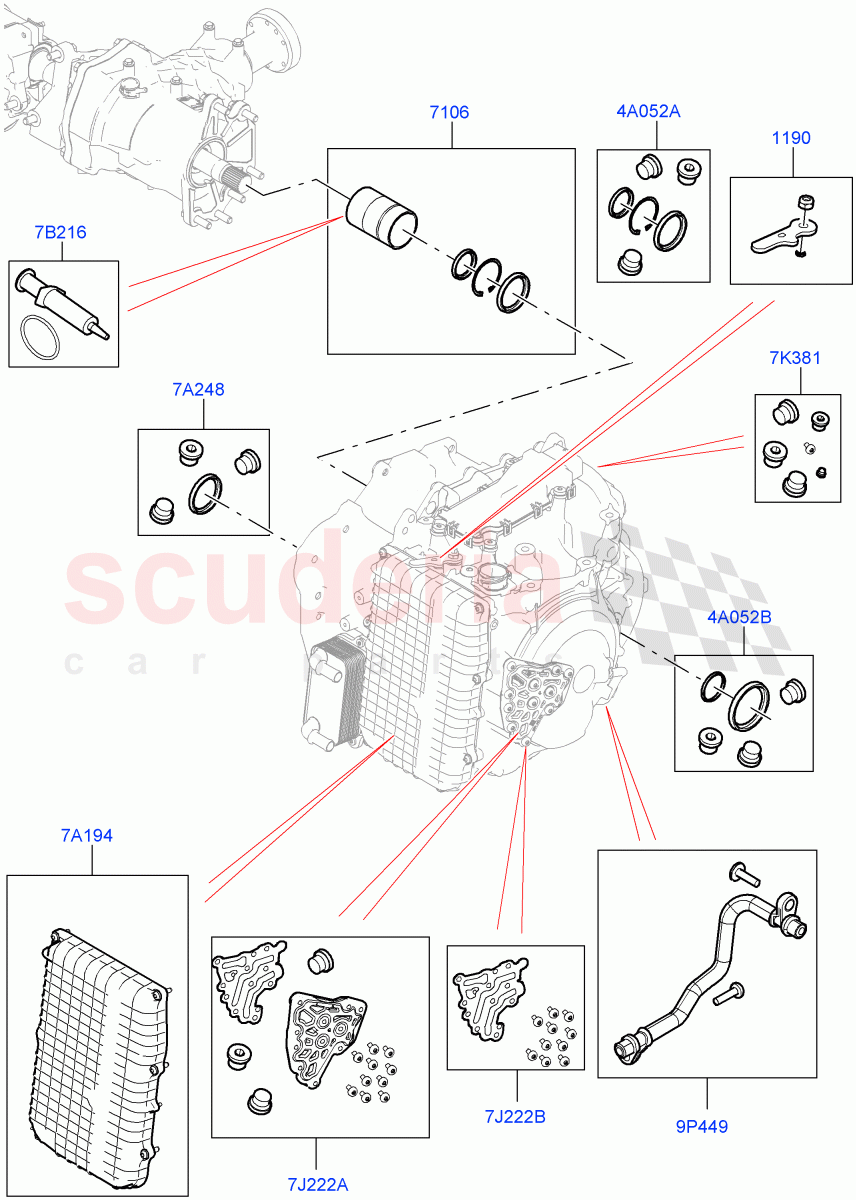

Transmission External Components (9 Speed Auto AWD, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
4A052A LR123856
SEAL - OUTPUT SHAFT OIL
Differential / From: GT000001 / To: JT003877 		$109.00 1
4A052A LR123856
SEAL - OUTPUT SHAFT OIL
2.0L I4 DSL HIGH DOHC AJ200, Proconve L6 Emissions / From: JT003878 		$109.00 1
4A052B LR049886
SEAL - OUTPUT SHAFT OIL
Transmission / From: GT000001 		$98.40 1
7A194 LR086162
PAN - TRANSMISSION OIL
With Fixing Parts, With Gasket / From: GT000001 		$381.25 1
7A248 LR049899
SEAL - CONVERTER
Converter / From: GT000001 		$86.81 1
7B216 IYX500050
KIT - GREASE AND ORING
Connecting Sleeve Grease - 'O' Ring Not Required / From: GT000001 		$24.24 1
7J222A LR086158
COVER PLATE - TRANSMISSION
With Fixing Parts / From: GT000001 / To: HT001913 		$636.95 1
7J222A LR123896
COVER PLATE - TRANSMISSION
2.0L I4 DSL MID DOHC AJ200, Proconve L6 Emissions / From: HT001914 		$585.27 1
7J222B LR086413
KIT - FIXING PARTS
From: GT000001 / To: HT999999 		$41.86 1
7J222B LR123903
KIT - FIXING PARTS
From: JT000001 		$47.18 1
7K381 LR049876
PLUG - TRANSMISSION
Transmission / From: GT000001 		$38.35 1
9P449 LR086169
KIT - OIL PIPE
Includes O-Rings / From: GT000001 		$103.15 1
1190 LR086163
SEAL - SELECTOR SHAFT
From: GT000001 		$94.01 1
7106 LR123857
KIT - SLEEVE TRANSMISSION
Differential / From: GT000001 / To: HT001913
IN STOCK 		$444.41 1
7106 LR123857
KIT - SLEEVE TRANSMISSION
2.0L I4 DSL MID DOHC AJ200, Proconve L6 Emissions / From: HT001914
IN STOCK 		$444.41 1
