Auto Trans Assy & Speedometer Drive (2.0L 16V Tivct T/C 240Ps Petrol, 9 Speed Auto Awd, Halewood...

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Auto Trans Assy & Speedometer Drive (2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Halewood...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR024946 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB110096 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR024708 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR067386 AUTOMATIC TRANSMISSION Enquire To Order
LR074189 AUTOMATIC TRANSMISSION Enquire To Order
LR051524 AUTOMATIC TRANSMISSION Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR049845 TUBE - BREATHER Enquire To Order
LR072105 TUBE - BREATHER Enquire To Order
View All

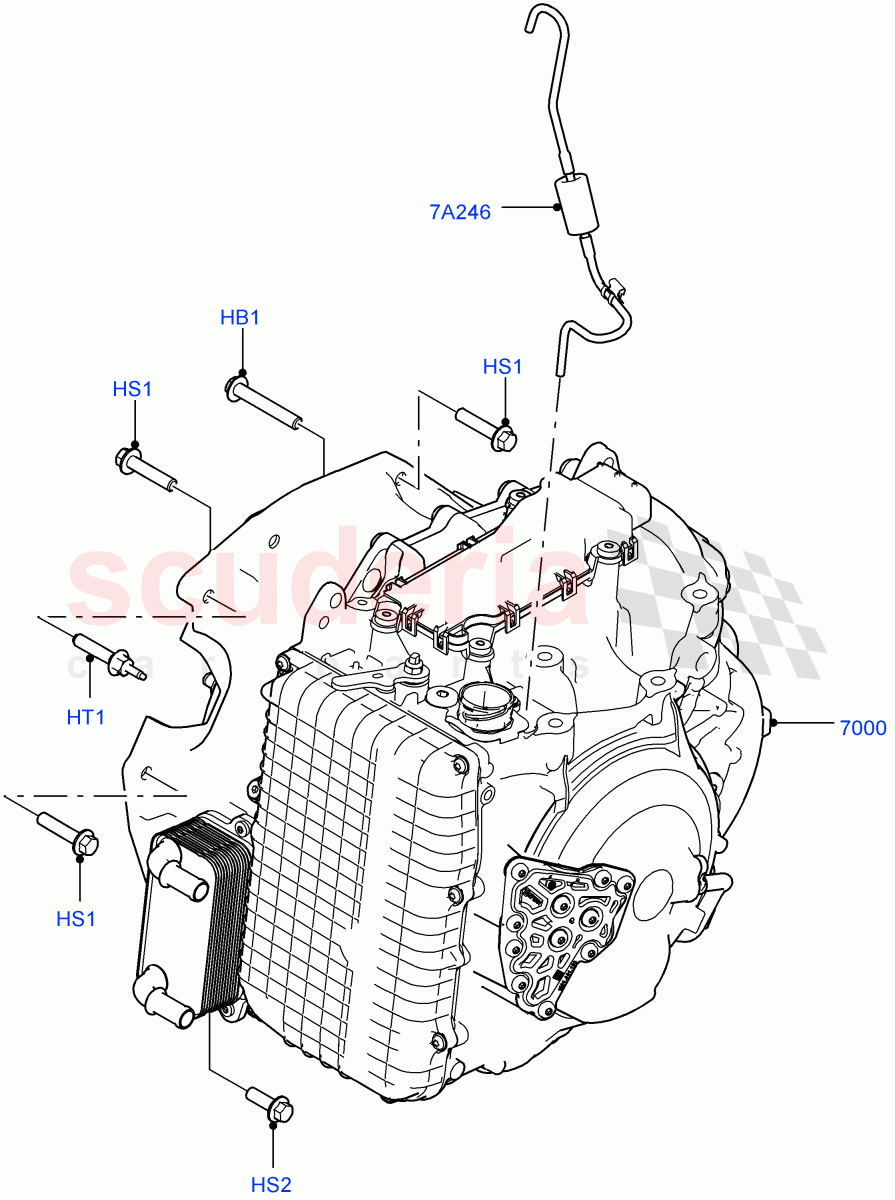

Auto Trans Assy & Speedometer Drive (2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Halewood (UK), 2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR024946
BOLT
HEX Flange, M10 X 65MM, Transmission To Engine / From: EH000001 		- 2 Enquire
HS1 FB110096
SCREW
Hex Head, Hexagonal Head, M10 X 45, Transmission To Engine / From: EH000001 		- 6 Enquire
HS2 FS110306
BOLT - HEX.HEAD
Hexagonal Head, M10 X 30MM, Transmission To Engine / From: EH000001 		- 1 Enquire
HT1 LR024708
STUD
M10 X 45, M6 X 16MM, Transmission To Engine / From: EH000001 		- 1 Enquire
7A246 LR049845
TUBE - BREATHER
From: EH000001 / To: FH999999 		- 1 Enquire
7A246 LR072105
TUBE - BREATHER
From: GH000001 		- 1 Enquire
7000 LR067386
AUTOMATIC TRANSMISSION
For Halewood Built, China / Taiwan / Gulf Cars Please Also Order LR093631, New Part-Please Check For Reman Version / From: FH032557 / To: FH049302 		- 1 Enquire
7000 LR074189
AUTOMATIC TRANSMISSION
For Halewood Built, China / Taiwan / Gulf Cars Please Also Order LR093631, New Part-Please Check For Reman Version / From: GH000001 		- 1 Enquire
7000 LR051524
AUTOMATIC TRANSMISSION
For Halewood Built, China / Taiwan / Gulf Cars Please Also Order LR093631, For UK, ROW And USA Markets Except Russia, China, Brazil, Includes Converter, Remanufactured Part / From: EH000001 / To: FH032556 		- 1 Enquire
7000 LR069683
AUTOMATIC TRANSMISSION
For Halewood Built, China / Taiwan / Gulf Cars Please Also Order LR093631, For UK and ROW markets except USA, Russia, China, Brazil, Includes Converter, Remanufactured Part / From: FH032557 / To: FH049302 		- 1 Enquire
7000 LR072643
AUTOMATIC TRANSMISSION
For Halewood Built, China / Taiwan / Gulf Cars Please Also Order LR093631, New Part-Please Check For Reman Version / From: FH049303 / To: FH999999 		- 1 Enquire
7000 LR078561
AUTOMATIC TRANSMISSION
For Halewood Built, China / Taiwan / Gulf Cars Please Also Order LR093631, For UK, ROW And USA Markets Except Russia, China, Brazil, Includes Converter, Remanufactured Part / From: FH049303 / To: FH999999 		- 1 Enquire
7000 LR093361
AUTOMATIC TRANSMISSION
For Halewood Built, China / Taiwan / Gulf Cars Please Also Order LR093631, For UK, ROW And USA Markets Except Russia, China, Brazil, Includes Converter, Remanufactured Part / From: GH000001 		- 1 Enquire
7000 LR049854
AUTOMATIC TRANSMISSION
For Halewood Built, China / Taiwan / Gulf Cars Please Also Order LR093631, New Part-Please Check For Reman Version / From: EH000001 / To: FH032556 		- 1 Enquire
7000 LR082953
Transmission
(+)"CDN", (+)"USA", For North America Only, Includes Converter, Remanufactured Part / From: EH000001 / To: FH999999 		- 1 Enquire
7000 LR082969
Transmission
(+)"CDN", (+)"USA", For North America Only, Includes Converter, Remanufactured Part / From: GH000001 		- 1 Enquire
