Manual Transmission External Cmpnts (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans M66 - AWD, 6 Speed Manual Trans-JLR M66 2WD) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Manual Transmission External Cmpnts (2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans M66 - AWD, 6...

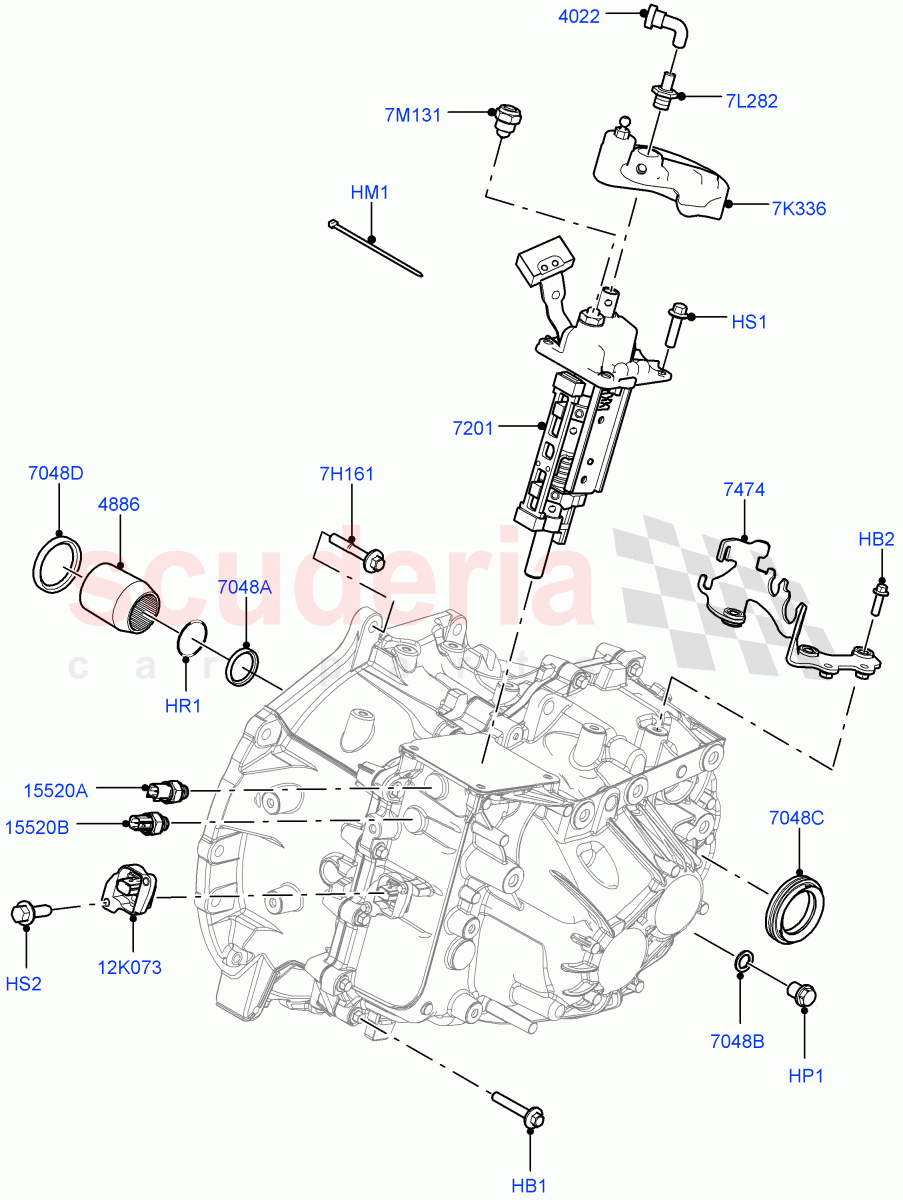

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002926	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501180	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005632	PIN - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002900	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002927	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021315	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105161	SCREW - PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019450	VALVE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061606	SLEEVE - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072971	HOUSING - TRANSMISSION GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075642	SEAL - OIL	Enquire	To Order
	LR002928	SEAL - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000772	SEAL - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002929	SEAL - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024341	SEAL - OIL	Enquire	To Order
	LR000771	SEAL - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001353	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001195	LEVER - GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074190	VALVE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014097	RETAINER - INTERLOCK SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050850	SENSOR - MAN. LEVER POSITION - MLPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075364	SWITCH - REVERSING LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075365	SWITCH - REVERSING LAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR002926	SCREW	LR002926 SCREW From: GH000001	-	22	Enquire
HB2	RYG501180	BOLT	RYG501180 BOLT M8 X 30MM / From: GH000001	-	3	Enquire
HM1	LR005632	PIN - SPRING	LR005632 PIN - SPRING 8 X 32 / From: GH000001	-	1	Enquire
HP1	LR002900	PLUG - ENGINE	LR002900 PLUG - ENGINE Drain, FILLER / From: GH000001	-	1	Enquire
HR1	LR002927	RING - SEALING	LR002927 RING - SEALING 6 Speed Manual Trans M66 - AWD / O Ring Gasket / From: GH000001	-	1	Enquire
HS1	LR021315	SCREW	LR021315 SCREW M8 X 30MM / From: GH000001	-	4	Enquire
HS2	FS105161	SCREW - PAN HEAD	FS105161 SCREW - PAN HEAD Gear Neutral Sensor, M5 X 16MM / From: GH000001	-	2	Enquire
7H161	LR001353	BOLT - HEX.HEAD	LR001353 BOLT - HEX.HEAD M10 x 75MM / From: GH000001	-	9	Enquire
7K336	LR001195	LEVER - GEAR SHIFT	LR001195 LEVER - GEAR SHIFT From: GH000001	-	1	Enquire
7L282	LR074190	VALVE - VENT	LR074190 VALVE - VENT 6 Speed Manual Trans-JLR M66 2WD / From: GH000001	-	1	Enquire
7M131	LR014097	RETAINER - INTERLOCK SPRING	LR014097 RETAINER - INTERLOCK SPRING Retainer Only / From: GH000001	-	1	Enquire
12K073	LR050850	SENSOR - MAN. LEVER POSITION - MLPS	LR050850 SENSOR - MAN. LEVER POSITION - MLPS From: GH000001	-	1	Enquire
4022	LR019450	VALVE - VENT	LR019450 VALVE - VENT 6 Speed Manual Trans-JLR M66 2WD, Engine Power Source - 150PS/380NM / From: GH000001	-	1	Enquire
4886	LR061606	SLEEVE - TRANSMISSION	LR061606 SLEEVE - TRANSMISSION 6 Speed Manual Trans M66 - AWD / From: GH000001	-	1	Enquire
7048A	LR075642	SEAL - OIL	LR075642 SEAL - OIL 6 Speed Manual Trans-JLR M66 2WD / From: GH000001	-	1	Enquire
7048A	LR002928	SEAL - OIL	LR002928 SEAL - OIL 6 Speed Manual Trans M66 - AWD / 30 X 40MM / From: GH000001	-	1	Enquire
7048B	LR000772	SEAL - OIL	LR000772 SEAL - OIL 18.3MM / From: GH000001	-	1	Enquire
7048C	LR002929	SEAL - OIL	LR002929 SEAL - OIL Driveshaft Seal,	-	1	Enquire
7048D	LR024341	SEAL - OIL	LR024341 SEAL - OIL 6 Speed Manual Trans-JLR M66 2WD / 75MM / From: GH000001	-	1	Enquire
7048D	LR000771	SEAL - OIL	LR000771 SEAL - OIL 6 Speed Manual Trans M66 - AWD / 75MM / From: GH000001	-	1	Enquire
7201	LR072971	HOUSING - TRANSMISSION GEAR SHIFT	LR072971 HOUSING - TRANSMISSION GEAR SHIFT From: GH000001	-	1	Enquire
15520A	LR075364	SWITCH - REVERSING LAMP	LR075364 SWITCH - REVERSING LAMP From: GH000001	-	1	Enquire
15520B	LR075365	SWITCH - REVERSING LAMP	LR075365 SWITCH - REVERSING LAMP From: GH000001	-	1	Enquire
