Manual Transmission External Cmpnts (6 Speed Manual Trans M66 - Awd, Halewood (Uk), 6 Speed Manual...

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Manual Transmission External Cmpnts (6 Speed Manual Trans M66 - AWD, Halewood (UK), 6 Speed Manual...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR002926 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR005632 PIN - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR000766 STRAP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR002900 PLUG - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
LR002927 RING - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS105161 SCREW - PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR021315 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR019450 VALVE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR031662 SLEEVE - TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
LR022071 HOUSING - TRANSMISSION GEAR SHIFT Enquire To Order
Photo Part No Description Price (each) Stock
LR003470 BRACKET - CONTROL CABLE Enquire To Order
Photo Part No Description Price (each) Stock
LR002304 VALVE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR000772 SEAL - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR000770 SEAL - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR000771 SEAL - OIL Enquire To Order
LR024341 SEAL - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR002928 SEAL - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR002929 SEAL - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR000767 PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR001195 LEVER - GEAR SHIFT Enquire To Order
Photo Part No Description Price (each) Stock
LR060914 FORK - GEAR SHIFT Enquire To Order
Photo Part No Description Price (each) Stock
LR000774 SWITCH - REVERSING LAMP Enquire To Order
Photo Part No Description Price (each) Stock
LR001351 SWITCH - REVERSING LAMP Enquire To Order
Photo Part No Description Price (each) Stock
LR001372 COVER - GEARBOX Enquire To Order
LR065427 COVER - GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
LR001353 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR001354 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR001355 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR014097 RETAINER - INTERLOCK SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR019970 SENSOR - MAN. LEVER POSITION - MLPS Enquire To Order
Photo Part No Description Price (each) Stock
LR050850 SENSOR - MAN. LEVER POSITION - MLPS Enquire To Order
View All

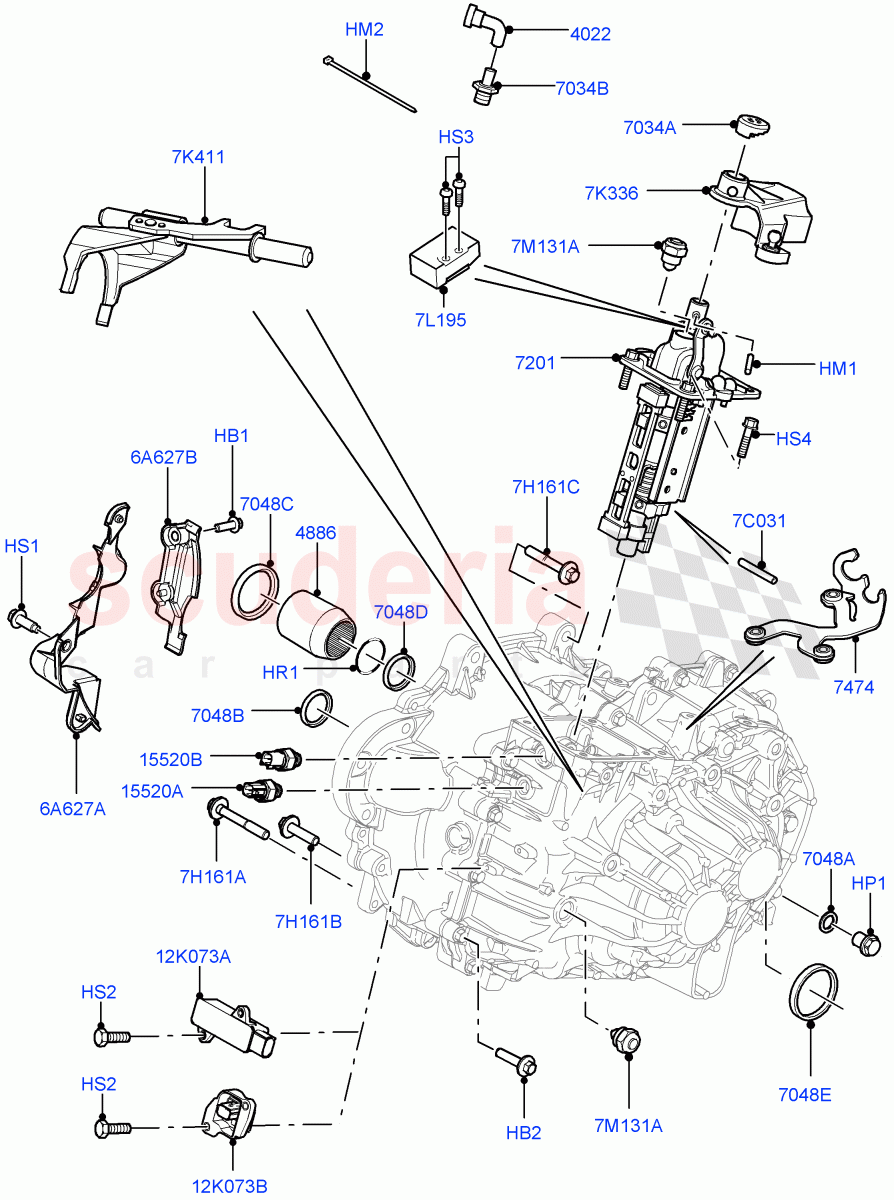

Manual Transmission External Cmpnts (6 Speed Manual Trans M66 - AWD, Halewood (UK), 6 Speed Manual Trans-JLR M66 2WD, 6-Speed Manual Transaxle - M66 2WD) ((V) TOFH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Hex Head, Hexagonal Head, M8 X 25MM 		- 1 Enquire
HB2 LR002926
SCREW
Case Assy / Transmission 		- 1 Enquire
HM1 LR005632
PIN - SPRING
8 X 32 		- 1 Enquire
HM2 LR000766
STRAP - HOSE
270MM x 4.8MM, Cable Tie 		- 1 Enquire
HP1 LR002900
PLUG - ENGINE
Drain, FILLER 		- 1 Enquire
HR1 LR002927
RING - SEALING
Input Shaft, O Ring Gasket 		- 1 Enquire
HS1 RYG500470
SCREW
Hex Head, Hexagonal Head, M10 X 25MM 		- 1 Enquire
HS2 FS105161
SCREW - PAN HEAD
Gear Neutral Sensor, M5 X 16MM 		- 2 Enquire
HS4 LR021315
SCREW
M8 X 30MM 		- 4 Enquire
6A627A LR001372
COVER - GEARBOX
To: EH955078 		- 1 Enquire
6A627A LR065427
COVER - GEARBOX
From: EH955079 		- 1 Enquire
7C031 LR000767
PIN 		- 1 Enquire
7H161A LR001353
BOLT - HEX.HEAD
Bolt Transmission To Engine, M10 x 75MM 		- 2 Enquire
7H161B LR001354
BOLT - HEX.HEAD
Bolt Transmission To Engine, M10 x 40MM 		- 3 Enquire
7H161C LR001355
BOLT - HEX.HEAD
Bolt Transmission To Engine, M10 x 63MM 		- 3 Enquire
7K336 LR001195
LEVER - GEAR SHIFT 		- 1 Enquire
7K411 LR060914
FORK - GEAR SHIFT 		- 1 Enquire
7M131A LR014097
RETAINER - INTERLOCK SPRING
Retainer Only 		- 1 Enquire
12K073A LR019970
SENSOR - MAN. LEVER POSITION - MLPS
Starter - Stop/Start System / Gear Neutral Sensor / To: DH999999 		- 1 Enquire
12K073B LR050850
SENSOR - MAN. LEVER POSITION - MLPS
Starter - Stop/Start System / Gear Neutral Sensor / From: EH000001 		- 1 Enquire
4022 LR019450
VALVE - VENT
Breather, Differential 		- 1 Enquire
4886 LR031662
SLEEVE - TRANSMISSION 		- 1 Enquire
7034A LR002304
VALVE - VENT 		- 1 Enquire
7048A LR000772
SEAL - OIL
18.3MM, Drain, FILLER 		- 1 Enquire
7048B LR000770
SEAL - OIL
45MM 		- 1 Enquire
7048C LR000771
SEAL - OIL
6 Speed Manual Trans M66 - AWD / 75MM 		- 1 Enquire
7048C LR024341
SEAL - OIL
6 Speed Manual Trans-JLR M66 2WD / 75MM 		- 1 Enquire
7048D LR002928
SEAL - OIL
30 X 40MM 		- 1 Enquire
7048E LR002929
SEAL - OIL
Driveshaft Seal, 		- 1 Enquire
7201 LR022071
HOUSING - TRANSMISSION GEAR SHIFT 		- 1 Enquire
7474 LR003470
BRACKET - CONTROL CABLE 		- 1 Enquire
15520A LR000774
SWITCH - REVERSING LAMP
1st Gear 		- 1 Enquire
15520B LR001351
SWITCH - REVERSING LAMP
Reverse 		- 1 Enquire
