Oil Pan/Oil Level Indicator (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Oil Pan/Oil Level Indicator (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR031493 BOLT $5.15 To Order
Photo Part No Description Price (each) Stock
LR019604 BOLT $4.15 To Order
Photo Part No Description Price (each) Stock
LR002849 BOLT - HEX.HEAD $7.43 To Order
Photo Part No Description Price (each) Stock
RYP500950 SCREW $0.63 IN STOCK
Photo Part No Description Price (each) Stock
LR000672 STUD $2.73 To Order
Photo Part No Description Price (each) Stock
LR004304 PLUG - OIL DRAIN $6.58 To Order
LR073675 PLUG - OIL DRAIN $7.90 IN STOCK
Photo Part No Description Price (each) Stock
LR006295 GASKET - DRAIN PLUG - OIL $3.42 To Order
Photo Part No Description Price (each) Stock
LR004674 INDICATOR - OIL LEVEL $116.59 To Order
LR049657 INDICATOR - OIL LEVEL $85.43 To Order
Photo Part No Description Price (each) Stock
LR023045 RING - SEALING $20.79 To Order
Photo Part No Description Price (each) Stock
LR001250 TUBE - OIL LEVEL INDICATOR $53.84 To Order
Photo Part No Description Price (each) Stock
LR022280 PAN - ENGINE OIL $191.36 To Order
Photo Part No Description Price (each) Stock
LR022278 PAN - ENGINE OIL $851.34 To Order
LR115654 PAN - ENGINE OIL $503.85 To Order
Photo Part No Description Price (each) Stock
LR009410 SCREW $10.18 To Order
Photo Part No Description Price (each) Stock
LR006520 TUBE - OIL COOLER $54.00 To Order
Photo Part No Description Price (each) Stock
LR001368 SENSOR - ENGINE TEMPERATURE $208.27 To Order
View All

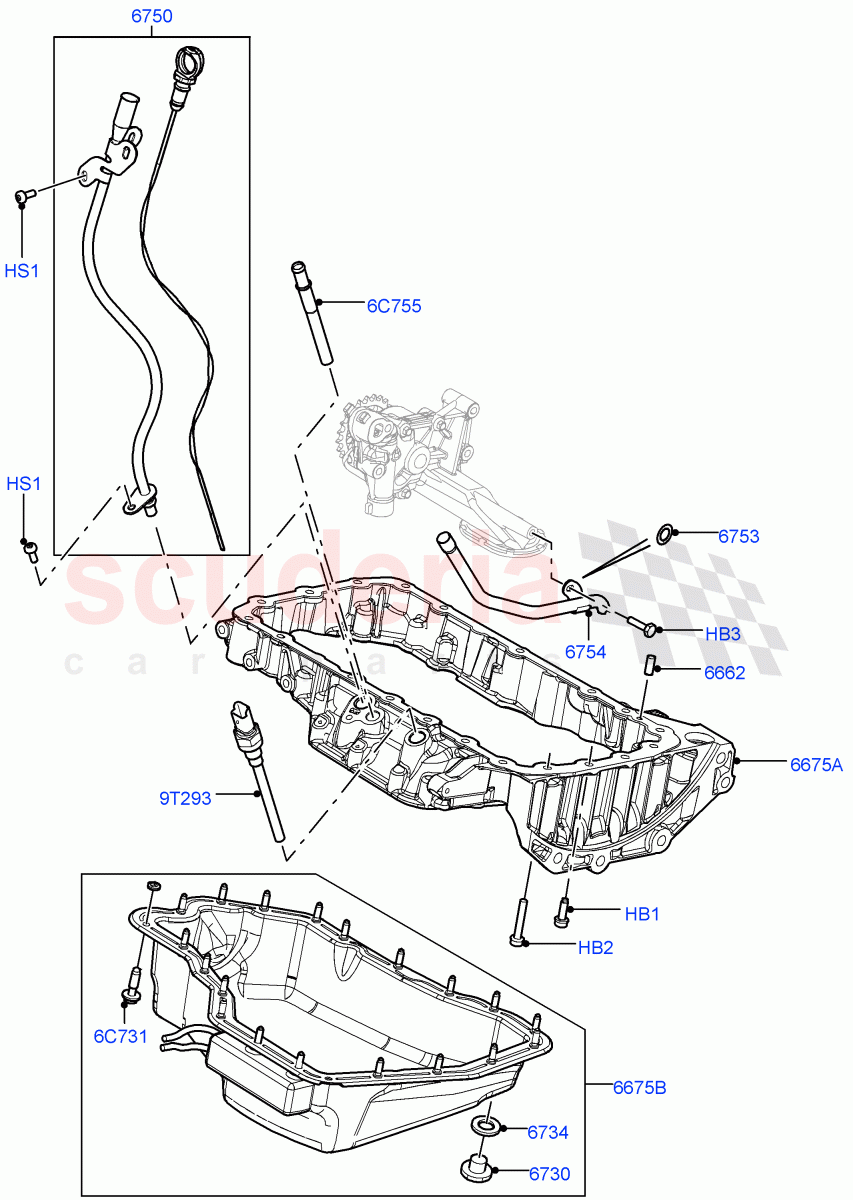

Oil Pan/Oil Level Indicator (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR031493
BOLT
M7 X 21MM 		$5.15 16
HB2 LR019604
BOLT
M7 X 40MM 		$4.15 4
HB3 LR002849
BOLT - HEX.HEAD
M6 x 12MM 		$7.43 1
HS1 RYP500950
SCREW
M6 X 16MM, Torx
IN STOCK 		$0.63 2
6C731 LR009410
SCREW 		$10.18 21
6C755 LR006520
TUBE - OIL COOLER 		$54.00 1
9T293 LR001368
SENSOR - ENGINE TEMPERATURE 		$208.27 1
6662 LR000672
STUD
4 X 15MM 		$2.73 1
6675A LR022280
PAN - ENGINE OIL
Upper 		$191.36 1
6675B LR022278
PAN - ENGINE OIL
Lower / To: GH114934 		$851.34 1
6675B LR115654
PAN - ENGINE OIL
Lower / From: GH114935 		$503.85 1
6730 LR004304
PLUG - OIL DRAIN
Head Size: 21mm, M10 X 1.25 		$6.58 1
6730 LR073675
PLUG - OIL DRAIN
Head Size: 13mm, Includes Seal, M14 X 1.5
IN STOCK 		$7.90 1
6734 LR006295
GASKET - DRAIN PLUG - OIL
Sealing Washer 		$3.42 1
6750 LR004674
INDICATOR - OIL LEVEL
To: DH999999 		$116.59 1
6750 LR049657
INDICATOR - OIL LEVEL
From: EH000001 		$85.43 1
6753 LR023045
RING - SEALING
Sealing Ring 		$20.79 1
6754 LR001250
TUBE - OIL LEVEL INDICATOR 		$53.84 1
