Oil Cooler And Filter (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Oil Cooler And Filter (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN108042 NUT $1.34 To Order
Photo Part No Description Price (each) Stock
LR009408 STUD $8.31 To Order
Photo Part No Description Price (each) Stock
LR000680 SEAL - PLUG $2.16 To Order
Photo Part No Description Price (each) Stock
LR001262 GASKET - OIL FILTER $29.77 To Order
Photo Part No Description Price (each) Stock
LR001247 FILTER - OIL - ELEMENT AND SEAL $21.56 IN STOCK
Photo Part No Description Price (each) Stock
LR002840 CLAMP - HOSE $2.04 To Order
Photo Part No Description Price (each) Stock
LR005365 SWITCH - OIL PRESSURE $29.38 To Order
Photo Part No Description Price (each) Stock
LR006205 COVER - OIL FILTER $56.07 To Order
Photo Part No Description Price (each) Stock
LR006653 OIL FILTER AND COOLER $432.97 To Order
Photo Part No Description Price (each) Stock
LR021623 TUBE - WATER INLET $39.55 To Order
Photo Part No Description Price (each) Stock
LR006660 CONNECTOR - OIL COOLER $11.82 To Order
View All

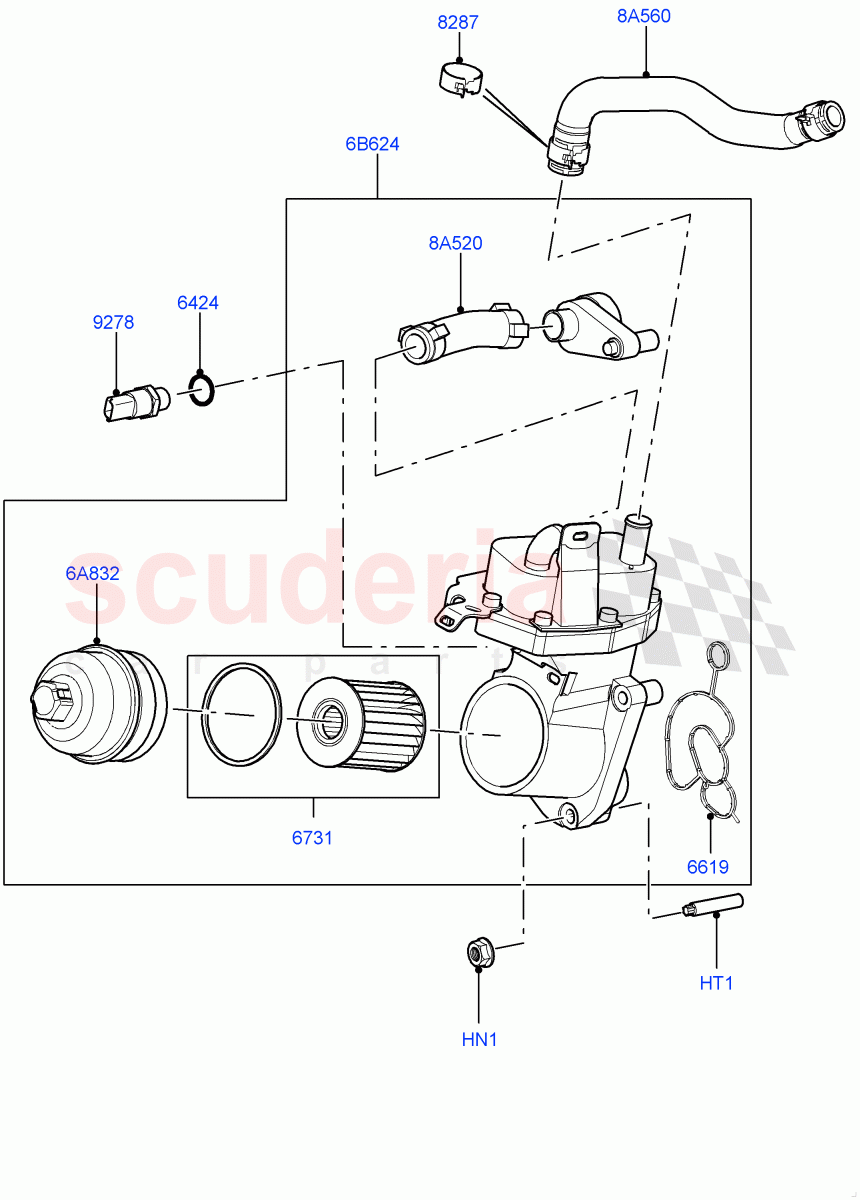

Oil Cooler And Filter (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN108042
NUT
M8 		$1.34 4
HT1 LR009408
STUD
M8 x 31MM 		$8.31 4
6A832 LR006205
COVER - OIL FILTER 		$56.07 1
6B624 LR006653
OIL FILTER AND COOLER 		$432.97 1
8A520 LR021623
TUBE - WATER INLET 		$39.55 1
8A560 LR006660
CONNECTOR - OIL COOLER
Engine, Oil Cooler, Return 		$11.82 1
6424 LR000680
SEAL - PLUG
Sealing Washer 		$2.16 1
6619 LR001262
GASKET - OIL FILTER 		$29.77 1
6731 LR001247
FILTER - OIL - ELEMENT AND SEAL
Element And Seal
IN STOCK 		$21.56 1
8287 LR002840
CLAMP - HOSE 		$2.04 1
9278 LR005365
SWITCH - OIL PRESSURE 		$29.38 1
