Vacuum Control And Air Injection (2.2L Cr Di 16V Diesel) ((V) Tofh999999)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Vacuum Control And Air Injection (2.2L CR DI 16V Diesel) ((V) TOFH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR032713 CLIP - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR025956 PUMP - VACUUM Enquire To Order
LR037627 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR024503 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR024500 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR035406 MANIFOLD - VACUUM SUPPLY Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR024502 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR024499 MANIFOLD - VACUUM SUPPLY Enquire To Order
LR035405 MANIFOLD - VACUUM SUPPLY Enquire To Order
...and 5 more part variants. See table on right for more details.
View All

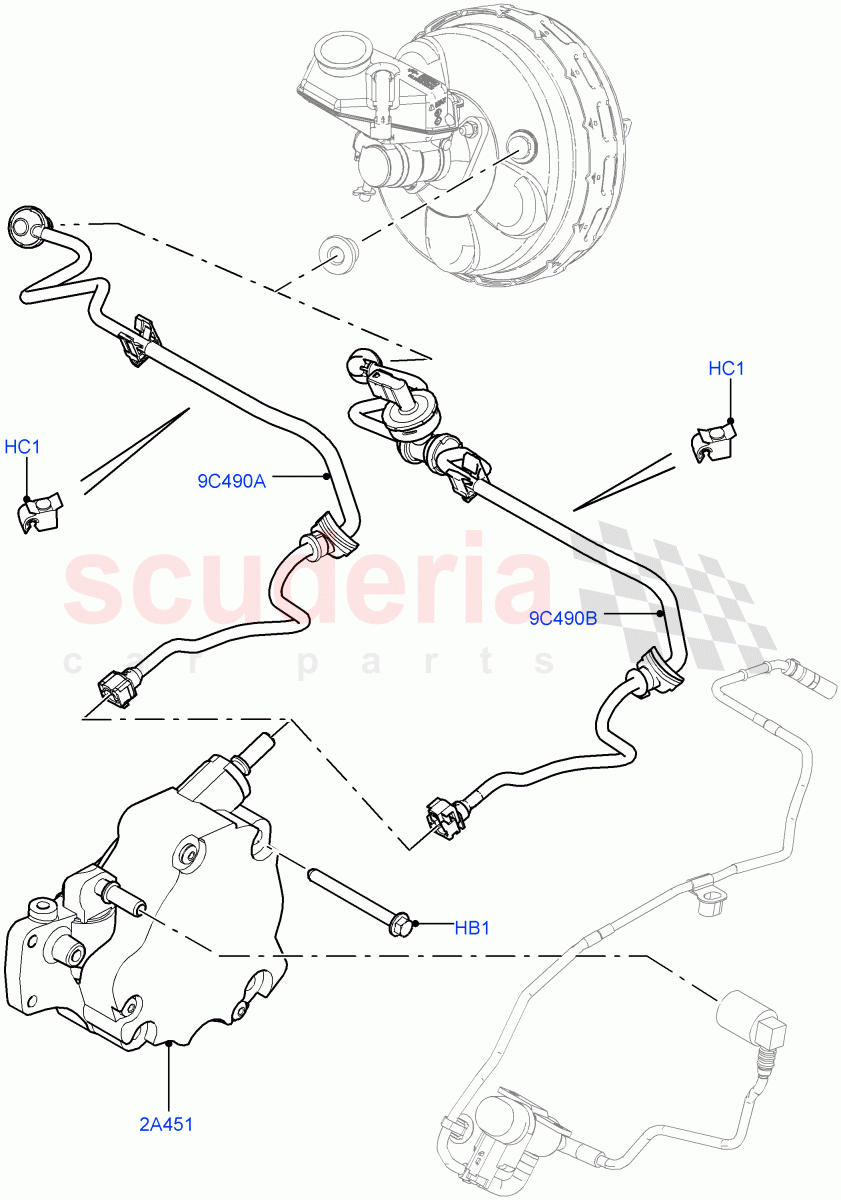

Vacuum Control And Air Injection (2.2L CR DI 16V Diesel) ((V) TOFH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106126
BOLT
M6 x 60MM 		- 3 Enquire
HC1 LR032713
CLIP - BRAKE PIPE
RHD / Vacuum Pump Hose 		- 1 Enquire
2A451 LR025956
PUMP - VACUUM
To: CH641376 		- 1 Enquire
2A451 LR037627
PUMP - VACUUM
From: CH641377 		- 1 Enquire
9C490A LR024503
MANIFOLD - VACUUM SUPPLY
6 Speed Auto AWF21 AWD, LHD / To: CH631458 		- 1 Enquire
9C490A LR024500
MANIFOLD - VACUUM SUPPLY
6 Speed Auto AWF21 AWD, RHD / To: CH631458 		- 1 Enquire
9C490A LR035406
MANIFOLD - VACUUM SUPPLY
6 Speed Auto AWF21 AWD, RHD / From: CH631459 / To: DH728455 		- 1 Enquire
9C490A LR035411
MANIFOLD - VACUUM SUPPLY
6 Speed Auto AWF21 AWD, LHD / From: CH631459 / To: DH728455 		- 1 Enquire
9C490A LR045434
MANIFOLD - VACUUM SUPPLY
6 Speed Auto AWF21 AWD, RHD / From: DH728456 / To: DH999999 		- 1 Enquire
9C490A LR045437
MANIFOLD - VACUUM SUPPLY
6 Speed Auto AWF21 AWD, LHD / From: DH728456 / To: DH999999 		- 1 Enquire
9C490A LR047442
TUBE - VACUUM
RHD, Standard Electric Starter Motor / From: EH000001 		- 1 Enquire
9C490A LR047444
TUBE - VACUUM
LHD, Standard Electric Starter Motor / From: EH000001 		- 1 Enquire
9C490B LR024502
MANIFOLD - VACUUM SUPPLY
6 Speed Manual Trans M66 - AWD, LHD / Includes Vacuum Sensor / To: CH630577 		- 1 Enquire
9C490B LR024499
MANIFOLD - VACUUM SUPPLY
6 Speed Manual Trans M66 - AWD, RHD / Includes Vacuum Sensor / To: CH630577 		- 1 Enquire
9C490B LR035405
MANIFOLD - VACUUM SUPPLY
6 Speed Manual Trans-JLR M66 2WD, RHD / Includes Vacuum Sensor / From: CH630578 / To: DH728455 		- 1 Enquire
9C490B LR035409
MANIFOLD - VACUUM SUPPLY
6 Speed Manual Trans M66 - AWD, LHD / Includes Vacuum Sensor / From: CH630578 / To: DH728455 		- 1 Enquire
9C490B LR045433
MANIFOLD - VACUUM SUPPLY
6 Speed Manual Trans M66 - AWD, RHD / From: DH728456 / To: DH999999 		- 1 Enquire
9C490B LR045436
MANIFOLD - VACUUM SUPPLY
6 Speed Manual Trans M66 - AWD, LHD / From: DH728456 / To: DH999999 		- 1 Enquire
9C490B LR047441
TUBE - VACUUM
RHD, Starter - Stop/Start System / From: EH000001 		- 1 Enquire
9C490B LR047443
TUBE - VACUUM
LHD, Starter - Stop/Start System / From: EH000001 		- 1 Enquire
