Emission Control - Crankcase (2.2L CR DI 16V Diesel) ((V) FROMBH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Emission Control - Crankcase (2.2L CR DI 16V Diesel) ((V) FROMBH000001)

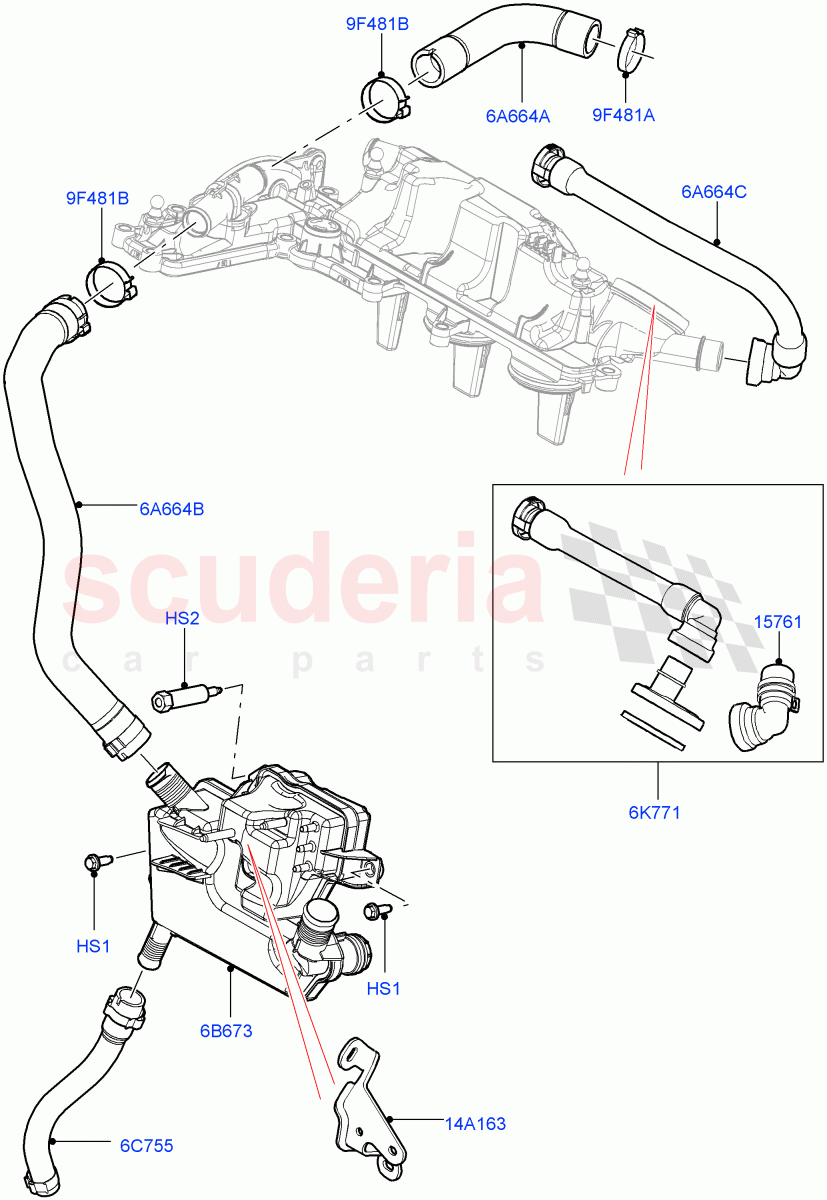

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000640	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003189	BOLT - OIL SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025914	SEPARATOR - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000994	TUBE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036595	KIT - CRANKCASE VENTILATION VALVE	Enquire	To Order
	LR084364	KIT - CRANKCASE VENTILATION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022512	BRACKET - ENGINE WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001263	HOSE - CRANKCASE VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001264	HOSE - CRANKCASE VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065344	TUBE - BREATHER	Enquire	To Order
	LR030364	HOSE - CRANKCASE VENTILATION	Enquire	To Order
	LR065345	HOSE - CRANKCASE VENTILATION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR002990	CLAMP - WORM DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC101900	CLAMP - HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR000640	SCREW	LR000640 SCREW M6 x 18MM	-	3	Enquire
HS2	LR003189	BOLT - OIL SEPARATOR	LR003189 BOLT - OIL SEPARATOR M6	-	1	Enquire
6A664A	LR001263	HOSE - CRANKCASE VENTILATION	LR001263 HOSE - CRANKCASE VENTILATION Connecting Hose - Cylinder Head Cover	-	1	Enquire
6A664B	LR001264	HOSE - CRANKCASE VENTILATION	LR001264 HOSE - CRANKCASE VENTILATION Cylinder Head Cover To Separator	-	1	Enquire
6A664C	LR065344	TUBE - BREATHER	LR065344 TUBE - BREATHER Engine Vent Hose / Cylinder Head Cover To Air Intake Tube, Non-Cold Markets / To: FH958636	-	1	Enquire
6A664C	LR030364	HOSE - CRANKCASE VENTILATION	LR030364 HOSE - CRANKCASE VENTILATION (+)"S", Engine Vent Hose - Insulated / Cylinder Head Cover To Air Intake Tube / To: FH967692	-	1	Enquire
6A664C	LR065345	HOSE - CRANKCASE VENTILATION	LR065345 HOSE - CRANKCASE VENTILATION (+)"CDN", Engine Vent Hose - Insulated / Cylinder Head Cover To Air Intake Tube / From: FH967693	-	1	Enquire
6A664C	LR065344	TUBE - BREATHER	LR065344 TUBE - BREATHER Engine Vent Hose / Cylinder Head Cover To Air Intake Tube, Non-Cold Markets / From: FH958637	-	1	Enquire
6B673	LR025914	SEPARATOR - OIL	LR025914 SEPARATOR - OIL	-	1	Enquire
6C755	LR000994	TUBE - OIL COOLER	LR000994 TUBE - OIL COOLER Cylinder Block To Separator	-	1	Enquire
6K771	LR036595	KIT - CRANKCASE VENTILATION VALVE	LR036595 KIT - CRANKCASE VENTILATION VALVE To: GH098323	-	1	Enquire
6K771	LR084364	KIT - CRANKCASE VENTILATION VALVE	LR084364 KIT - CRANKCASE VENTILATION VALVE From: GH098324	-	1	Enquire
9F481A	LR002990	CLAMP - WORM DRIVE	LR002990 CLAMP - WORM DRIVE	-	1	Enquire
9F481B	PYC101900	CLAMP - HOSE	PYC101900 CLAMP - HOSE	-	2	Enquire
14A163	LR022512	BRACKET - ENGINE WIRING	LR022512 BRACKET - ENGINE WIRING Separator	-	1	Enquire
