Fuel Tank & Related Parts (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Tank & Related Parts (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS...

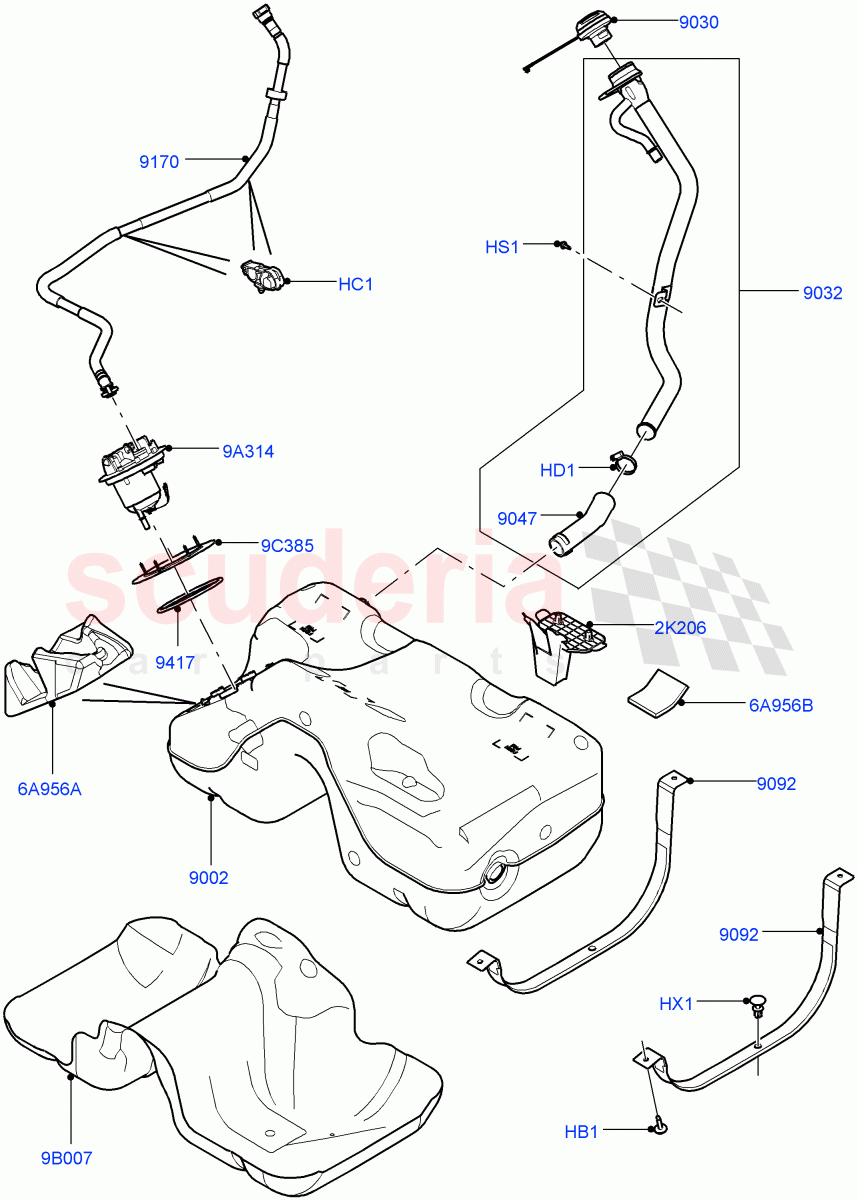

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501020	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001736	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023697	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500170	RETAINER - RIVET	Enquire	To Order
	LR115125	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026182	TANK - FUEL	Enquire	To Order
	LR032540	TANK - FUEL	Enquire	To Order
	LR072227	TANK - FUEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR181511	CAP - FUEL TANK FILLER	Enquire	To Order
	LR049865	CAP - FUEL TANK FILLER	Enquire	To Order
	LR049865	CAP - FUEL TANK FILLER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027081	PIPE - FUEL FILLER	Enquire	To Order
	LR029136	PIPE - FUEL FILLER	Enquire	To Order
	LR036341	PIPE - FUEL FILLER	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR028399	HOSE - FILLER PIPE	Enquire	To Order
	LR027093	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025817	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027873	HOSE - VENT	Enquire	To Order
	LR052183	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049426	BRACKET - WIRE HARNESS MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026195	COVER - FUEL SENDER	Enquire	To Order
	LR026197	COVER - FUEL SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041435	SHIELD - FUEL TANK	Enquire	To Order
	LR041435	SHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003778	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025816	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG501020	BOLT	RYG501020 BOLT M8 X 30MM	-	4	Enquire
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3	-	2	Enquire
HD1	LR001736	CLAMP - FUEL SUPPLY TUBE	LR001736 CLAMP - FUEL SUPPLY TUBE 25 x 40MM	-	1	Enquire
HS1	LR023697	SCREW	LR023697 SCREW M6 X 16MM	-	2	Enquire
HX1	RYQ500170	RETAINER - RIVET	RYQ500170 RETAINER - RIVET Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / To: JH309714	-	2	Enquire
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH309715	-	2	Enquire
2K206	LR049426	BRACKET - WIRE HARNESS MOUNTING	LR049426 BRACKET - WIRE HARNESS MOUNTING Support, Wiring Harness	-	1	Enquire
6A956A	LR025816	FOAM PAD - ENERGY ABSORBING	LR025816 FOAM PAD - ENERGY ABSORBING RH, Side	-	1	Enquire
6A956B	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING Rear	-	3	Enquire
9A314	LR026195	COVER - FUEL SENDER	LR026195 COVER - FUEL SENDER (+)"CDN/MEX/USA"	-	1	Enquire
9A314	LR026197	COVER - FUEL SENDER	LR026197 COVER - FUEL SENDER (-)"CDN/MEX/USA"	-	1	Enquire
9B007	LR041435	SHIELD - FUEL TANK	LR041435 SHIELD - FUEL TANK Bottom, Fuel Tank / To: DH772934	-	1	Enquire
9B007	LR041435	SHIELD - FUEL TANK	LR041435 SHIELD - FUEL TANK Bottom, Fuel Tank / From: DH772935	-	1	Enquire
9C385	LR003778	RING - RETAINING	LR003778 RING - RETAINING	-	1	Enquire
9002	LR026182	TANK - FUEL	LR026182 TANK - FUEL (+)"CDN/MEX/USA" / To: FH043694	-	1	Enquire
9002	LR032540	TANK - FUEL	LR032540 TANK - FUEL (-)"CDN/MEX/USA" / To: FH045307	-	1	Enquire
9002	LR072227	TANK - FUEL	LR072227 TANK - FUEL (-)"CDN/MEX/USA" / From: FH045308	-	1	Enquire
9002	LR095424	TANK - FUEL	LR095424 TANK - FUEL (+)"CDN/MEX/USA" / From: FH043695	-	1	Enquire
9030	LR181511	CAP - FUEL TANK FILLER	LR181511 CAP - FUEL TANK FILLER 2.0L 16V TIVCT T/C 240PS Petrol / To: FH999999	-	1	Enquire
9030	LR049865	CAP - FUEL TANK FILLER	LR049865 CAP - FUEL TANK FILLER 2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001	-	1	Enquire
9030	LR049865	CAP - FUEL TANK FILLER	LR049865 CAP - FUEL TANK FILLER 2.0L 16V TIVCT T/C 240PS Petrol, Fuel Tank Filler Neck - DMTL / From: GH000001	-	1	Enquire
9030	LR181511	CAP - FUEL TANK FILLER	LR181511 CAP - FUEL TANK FILLER 2.0L 16V TIVCT T/C 240PS Petrol, Fuel Tank Filler Neck - Unleaded / From: GH000001 / To: KH333701	-	1	Enquire
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: KH333702	-	1	Enquire
9032	LR027081	PIPE - FUEL FILLER	LR027081 PIPE - FUEL FILLER (+)"CDN/MEX/USA" / To: DH783390	-	1	Enquire
9032	LR029136	PIPE - FUEL FILLER	LR029136 PIPE - FUEL FILLER (-)"CDN/MEX/USA" / To: CH660837	-	1	Enquire
9032	LR036341	PIPE - FUEL FILLER	LR036341 PIPE - FUEL FILLER (-)"CDN/MEX/USA" / From: CH660838 / To: DH783390	-	1	Enquire
9032	LR045112	PIPE - FUEL FILLER	LR045112 PIPE - FUEL FILLER (-)"CDN/MEX/USA" / From: DH783391	-	1	Enquire
9032	LR045110	PIPE - FUEL FILLER	LR045110 PIPE - FUEL FILLER (+)"CDN/MEX/USA" / From: DH783391 / To: DH999999	-	1	Enquire
9032	LR049866	PIPE - FUEL FILLER	LR049866 PIPE - FUEL FILLER (+)"CDN/MEX/USA" / From: EH000001 / To: GH080636	-	1	Enquire
9032	LR079221	PIPE - FUEL FILLER	LR079221 PIPE - FUEL FILLER (+)"CDN/MEX/USA" / From: GH080637	-	1	Enquire
9047	LR028399	HOSE - FILLER PIPE	LR028399 HOSE - FILLER PIPE (-)"CDN/MEX/USA"	-	1	Enquire
9047	LR027093	HOSE - FILLER PIPE	LR027093 HOSE - FILLER PIPE (+)"CDN/MEX/USA"	-	1	Enquire
9092	LR025817	STRAP - FUEL TANK	LR025817 STRAP - FUEL TANK	-	2	Enquire
9170	LR027873	HOSE - VENT	LR027873 HOSE - VENT (-)"CDN/MEX/USA" / To: DH804638	-	1	Enquire
9170	LR052183	HOSE - VENT	LR052183 HOSE - VENT (-)"CDN/MEX/USA" / From: DH804639	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET O-Ring	-	1	Enquire
