Name: Fuel Lines (Rear) (5 Door, 2.0L 16V TIVCT T/C Gen2 Petrol, Stage V European Emissions, Halewood (UK), EU2, Euro Stage 4 Emissions, 3 Door, 2.0L 16V TIVCT T/C 240PS Petrol, EU6 Emissions, Proconve L5 Brazil)
Rating: 5.0 (1 reviews)

Fuel Lines (Rear) (5 Door, 2.0L 16V TIVCT T/C Gen2 Petrol, Stage V European Emissions, Halewood (UK), EU2, Euro Stage 4 Emissions, 3 Door, 2.0L 16V TIVCT T/C 240PS Petrol, EU6 Emissions, Proconve L5 Brazil) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Lines (Rear) (5 Door, 2.0L 16V TIVCT T/C Gen2 Petrol, Stage V European Emissions, Halewood...

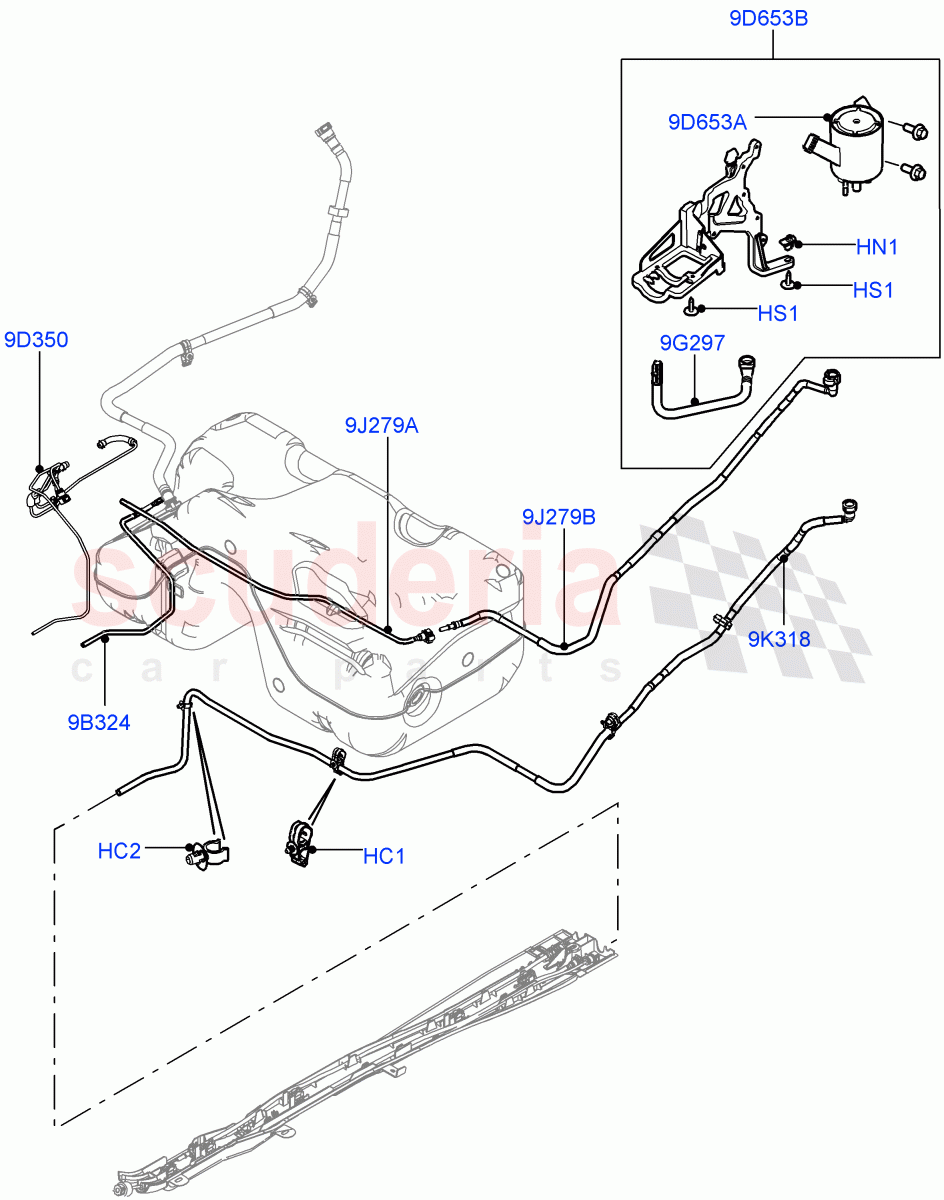

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SDG500030	SCREW	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044456	TUBE - FUEL	$23.56	To Order
	LR044456	TUBE - FUEL	$23.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027886	TUBE - FUEL FEED	$79.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027068	TUBE - FUEL VAPOUR	$39.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027876	TUBE - FUEL VAPOUR	$79.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003486	RESERVOIR - FUEL TANK VENT SYSTEM	$50.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027057	CANNISTER - FUEL VAPOUR STORE	$94.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027880	TUBE - VENTILATION	$15.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027879	TUBE - VENTILATION	$30.44	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3	$1.18	3
HC2	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic	$1.62	1
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 IN STOCK	$1.57	1
HS1	SDG500030	SCREW	SDG500030 SCREW M6 x 27MM, Screw And Washer	$1.11	2
9B324	LR044456	TUBE - FUEL	LR044456 TUBE - FUEL From Fuel Tank To Under Floor Pipes / To: DH710504	$23.56	1
9B324	LR044456	TUBE - FUEL	LR044456 TUBE - FUEL From Fuel Tank To Under Floor Pipes / From: DH710505	$23.56	1
9D350	LR027886	TUBE - FUEL FEED	LR027886 TUBE - FUEL FEED With Fuel Fired Heater	$79.84	1
9D653A	LR003486	RESERVOIR - FUEL TANK VENT SYSTEM	LR003486 RESERVOIR - FUEL TANK VENT SYSTEM Charcoal Cannister	$50.66	1
9D653B	LR027057	CANNISTER - FUEL VAPOUR STORE	LR027057 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket	$94.67	1
9G297	LR027068	TUBE - FUEL VAPOUR	LR027068 TUBE - FUEL VAPOUR Charcoal Cannister	$39.91	1
9J279A	LR027880	TUBE - VENTILATION	LR027880 TUBE - VENTILATION Centre, Purge Line From Fuel Tank To Charcoal Canister	$15.17	1
9J279B	LR027879	TUBE - VENTILATION	LR027879 TUBE - VENTILATION Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister	$30.44	1
9K318	LR027876	TUBE - FUEL VAPOUR	LR027876 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet	$79.84	1
