Heater/Air Cond.Internal Components (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Heater/Air Cond.Internal Components (Halewood (UK))

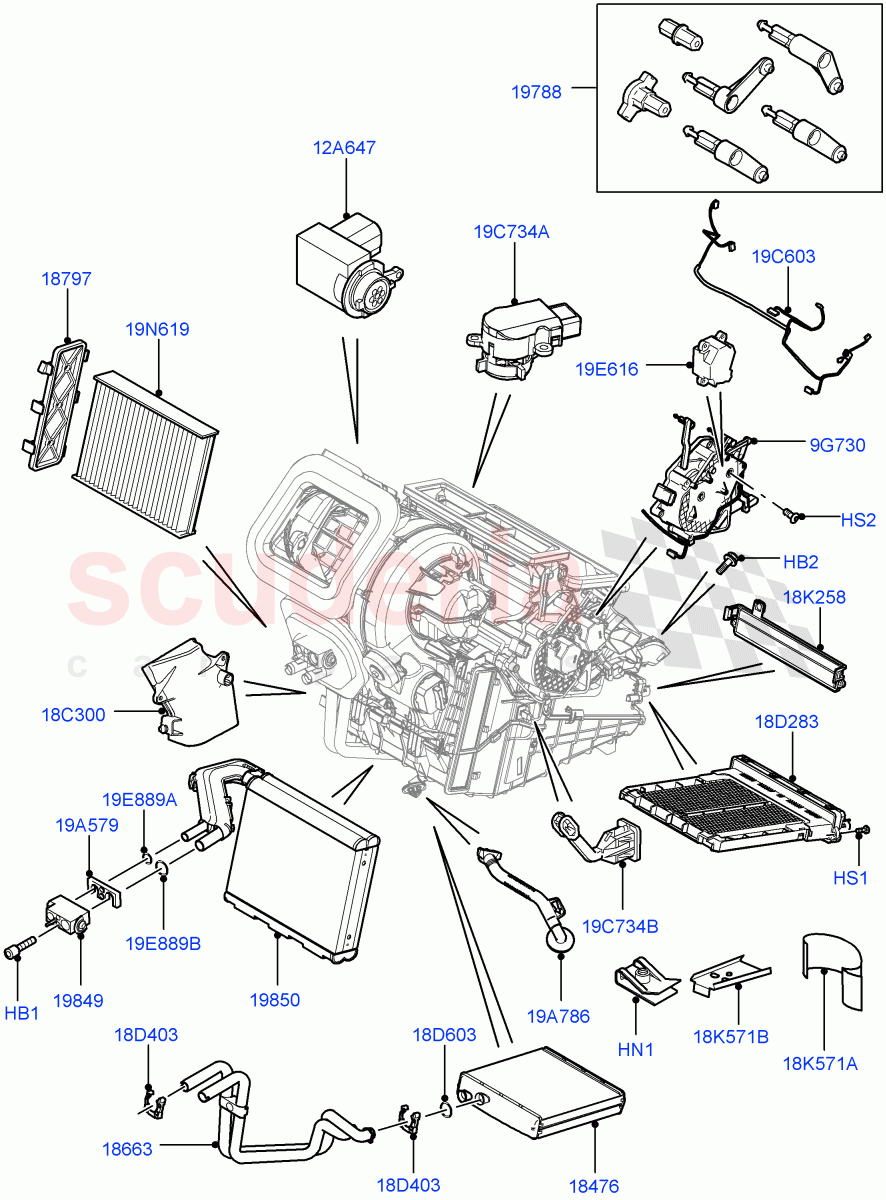

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003562	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005381	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003485	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500770	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117107	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002632	CORE - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002680	TUBE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003205	RETAINER - AIR CLEANER	Enquire	To Order
	LR066492	RETAINER - AIR CLEANER	Enquire	To Order
	LR079185	RETAINER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002673	CAM - HEATER AIR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016631	VALVE - EVAPORATOR EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009797	EVAPORATOR	Enquire	To Order
	LR070870	EVAPORATOR	Enquire	To Order
	LR097253	EVAPORATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001066	ACTUATOR	Enquire	To Order
	LR025073	ACTUATOR - HEATER CONTROL	Enquire	To Order
	LR066924	ACTUATOR - HEATER CONTROL	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR007805	SENSOR - AIR COND. AMBIENT AIR	Enquire	To Order
	LR039615	SENSOR - AIR POLUTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002892	DUCT - FOOT ROOM AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032899	PTC HEATER	Enquire	To Order
	LR115120	PTC HEATER	Enquire	To Order
	LR136597	PTC HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002675	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002683	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002648	COVER - HEATER BLOWER	Enquire	To Order
	LR078981	COVER - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003199	BRACKET - HEATER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017314	TUBE - WATER DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002635	WIRE - AIR CONDITIONER	Enquire	To Order
	LR024223	WIRE - AIR CONDITIONER	Enquire	To Order
	LR002636	WIRE - AIR CONDITIONER	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR022168	MOTOR - A/C ADJUSTING	Enquire	To Order
	LR048448	STEPPER MOTOR - HEATER	Enquire	To Order
	LR115829	STEPPER MOTOR - HEATER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR019192	FILTER - ODOUR AND PARTICLES	Enquire	To Order
	LR019589	FILTER - POLLEN	Enquire	To Order
	LR039612	FILTER - ODOUR AND PARTICLES	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR002633	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003174	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023702	SENSOR - HEATER TEMPERATURE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003200	SENSOR - HEATER TEMPERATURE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003201	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003202	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR003562	BOLT	LR003562 BOLT M5 x 35MM	-	1	Enquire
HB2	LR005381	BOLT AND WASHER - HEX.HEAD	LR005381 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 40MM	-	1	Enquire
HN1	LR003485	NUT	LR003485 NUT M6 X 0.5-4	-	4	Enquire
HS1	RYP500770	SCREW	RYP500770 SCREW 5 X 16MM, Torx	-	2	Enquire
HS2	LR117107	SCREW	LR117107 SCREW 4 X 16 mm, Torx / From: JH322936	-	4	Enquire
9G730	LR001066	ACTUATOR	LR001066 ACTUATOR Rear End Console With Stowage / To: FH518487	-	1	Enquire
9G730	LR025073	ACTUATOR - HEATER CONTROL	LR025073 ACTUATOR - HEATER CONTROL Rear End Console With Vents / To: FH999999	-	1	Enquire
9G730	LR066924	ACTUATOR - HEATER CONTROL	LR066924 ACTUATOR - HEATER CONTROL ATC Air Conditioning, Rear End Console With Stowage / From: GH000001	-	1	Enquire
9G730	LR066925	ACTUATOR - HEATER CONTROL	LR066925 ACTUATOR - HEATER CONTROL Rear End Console With Vents / From: GH000001 / To: HH999999	-	1	Enquire
9G730	LR066923	ACTUATOR - HEATER CONTROL	LR066923 ACTUATOR - HEATER CONTROL Rear End Console With Stowage, With Manual Air Conditioning / For Air Conditioning With Manual Control / From: GH000001	-	1	Enquire
9G730	LR052780	ACTUATOR - HEATER CONTROL	LR052780 ACTUATOR - HEATER CONTROL Rear End Console With Stowage / From: FH518488 / To: FH999999	-	1	Enquire
9G730	LR066925	ACTUATOR - HEATER CONTROL	LR066925 ACTUATOR - HEATER CONTROL With ATC Air Con & Row 2 Vents / From: JH000001	-	1	Enquire
12A647	LR007805	SENSOR - AIR COND. AMBIENT AIR	LR007805 SENSOR - AIR COND. AMBIENT AIR To: CH667375	-	1	Enquire
12A647	LR039615	SENSOR - AIR POLUTION	LR039615 SENSOR - AIR POLUTION From: CH667376	-	1	Enquire
18C300	LR002892	DUCT - FOOT ROOM AIR	LR002892 DUCT - FOOT ROOM AIR	-	1	Enquire
18D283	LR032899	PTC HEATER	LR032899 PTC HEATER With Ptc Heater / To: JH300888	-	1	Enquire
18D283	LR115120	PTC HEATER	LR115120 PTC HEATER With Ptc Heater / From: JH300889 / To: KH336843	-	1	Enquire
18D283	LR136597	PTC HEATER	LR136597 PTC HEATER With Ptc Heater / From: KH336844	-	1	Enquire
18D403	LR002675	CLIP	LR002675 CLIP	-	2	Enquire
18D603	LR002683	SEAL	LR002683 SEAL Heater core, O Ring	-	1	Enquire
18K258	LR002648	COVER - HEATER BLOWER	LR002648 COVER - HEATER BLOWER Heater core / To: FH999999	-	1	Enquire
18K258	LR078981	COVER - HEATER	LR078981 COVER - HEATER Heater core / From: GH000001	-	1	Enquire
18K571A	LR002633	CLIP	LR002633 CLIP Heater	-	1	Enquire
18K571B	LR003174	CLIP	LR003174 CLIP Heater	-	1	Enquire
19A579	LR003199	BRACKET - HEATER MOUNTING	LR003199 BRACKET - HEATER MOUNTING	-	1	Enquire
19A786	LR017314	TUBE - WATER DRAIN	LR017314 TUBE - WATER DRAIN Tube - Water Drain	-	1	Enquire
19C603	LR002635	WIRE - AIR CONDITIONER	LR002635 WIRE - AIR CONDITIONER RHD, With Pollution Sensor / To: EH825637	-	1	Enquire
19C603	LR024223	WIRE - AIR CONDITIONER	LR024223 WIRE - AIR CONDITIONER LHD, With Pollution Sensor / To: EH825637	-	1	Enquire
19C603	LR002636	WIRE - AIR CONDITIONER	LR002636 WIRE - AIR CONDITIONER LHD, Less Pollution Sensor / To: EH825637	-	1	Enquire
19C603	LR002637	WIRE - AIR CONDITIONER	LR002637 WIRE - AIR CONDITIONER Less Pollution Sensor, RHD / To: EH825637	-	1	Enquire
19C603	LR055958	WIRE - AIR CONDITIONER	LR055958 WIRE - AIR CONDITIONER Less Pollution Sensor, RHD / From: EH825638 / To: FH999999	-	1	Enquire
19C603	LR055957	WIRE - AIR CONDITIONER	LR055957 WIRE - AIR CONDITIONER LHD, Less Pollution Sensor / From: EH825638 / To: FH999999	-	1	Enquire
19C603	LR055942	WIRE - AIR CONDITIONER	LR055942 WIRE - AIR CONDITIONER RHD, With Pollution Sensor / From: EH825638 / To: FH999999	-	1	Enquire
19C603	LR055946	WIRE - AIR CONDITIONER	LR055946 WIRE - AIR CONDITIONER LHD, With Pollution Sensor / From: EH825638 / To: FH999999	-	1	Enquire
19C603	LR067263	WIRE - AIR CONDITIONER	LR067263 WIRE - AIR CONDITIONER LHD, Less Pollution Sensor / From: GH000001 / To: HH999999	-	1	Enquire
19C603	LR067264	WIRE - AIR CONDITIONER	LR067264 WIRE - AIR CONDITIONER Less Pollution Sensor, RHD / From: GH000001 / To: HH999999	-	1	Enquire
19C603	LR067265	WIRE - AIR CONDITIONER	LR067265 WIRE - AIR CONDITIONER LHD, With Pollution Sensor / From: GH000001 / To: HH999999	-	1	Enquire
19C603	LR067266	WIRE - AIR CONDITIONER	LR067266 WIRE - AIR CONDITIONER RHD, With Pollution Sensor / From: GH000001 / To: HH999999	-	1	Enquire
19C603	LR067263	WIRE - AIR CONDITIONER	LR067263 WIRE - AIR CONDITIONER LHD, Less Air Purifier Sensor / From: JH000001	-	1	Enquire
19C603	LR067264	WIRE - AIR CONDITIONER	LR067264 WIRE - AIR CONDITIONER Less Air Purifier Sensor, RHD / From: JH000001	-	1	Enquire
19C603	LR067265	WIRE - AIR CONDITIONER	LR067265 WIRE - AIR CONDITIONER LHD, With Air Purifier Sensor / From: JH000001	-	1	Enquire
19C603	LR067266	WIRE - AIR CONDITIONER	LR067266 WIRE - AIR CONDITIONER RHD, With Air Purifier Sensor / From: JH000001	-	1	Enquire
19C734A	LR023702	SENSOR - HEATER TEMPERATURE CONTROL	LR023702 SENSOR - HEATER TEMPERATURE CONTROL	-	1	Enquire
19C734B	LR003200	SENSOR - HEATER TEMPERATURE CONTROL	LR003200 SENSOR - HEATER TEMPERATURE CONTROL Attaches To Evaporator	-	1	Enquire
19E616	LR022168	MOTOR - A/C ADJUSTING	LR022168 MOTOR - A/C ADJUSTING For Air Conditioning / To: DH810029	-	4	Enquire
19E616	LR048448	STEPPER MOTOR - HEATER	LR048448 STEPPER MOTOR - HEATER For Air Conditioning / From: DH810030 / To: FH999999	-	4	Enquire
19E616	LR115829	STEPPER MOTOR - HEATER	LR115829 STEPPER MOTOR - HEATER For Air Conditioning / From: JH320009	-	4	Enquire
19E616	LR066927	STEPPER MOTOR - HEATER	LR066927 STEPPER MOTOR - HEATER For Air Conditioning / From: GH000001 / To: JH320008	-	5	Enquire
19E889A	LR003201	RING - SEALING	LR003201 RING - SEALING 10.82MM X 1.78MM	-	1	Enquire
19E889B	LR003202	O-RING	LR003202 O-RING 14.0 X 1.78MM	-	1	Enquire
19N619	LR019192	FILTER - ODOUR AND PARTICLES	LR019192 FILTER - ODOUR AND PARTICLES Less Pollution Sensor / Filter - Odour And Particles, Standard / To: CH667375	-	1	Enquire
19N619	LR019589	FILTER - POLLEN	LR019589 FILTER - POLLEN With Pollution Sensor / Filter - Odour And Particles, Standard / To: CH667375	-	1	Enquire
19N619	LR039612	FILTER - ODOUR AND PARTICLES	LR039612 FILTER - ODOUR AND PARTICLES Less Pollution Sensor / 280mm x 194.5mm x 32mm, Filter - Odour And Particles, Standard / From: CH667376 / To: EH825637	-	1	Enquire
19N619	LR039621	FILTER - POLLEN	LR039621 FILTER - POLLEN With Pollution Sensor / Filter - Odour And Particles, Standard / From: CH667376 / To: EH825637	-	1	Enquire
19N619	LR056138	FILTER - POLLEN	LR056138 FILTER - POLLEN 280mm x 194.5mm x 32mm, Filter - Odour And Particles, Standard / From: EH825638	-	1	Enquire
19N619	VPLFS0488	FILTER - POLLEN	VPLFS0488 FILTER - POLLEN 280mm x 194.5mm x 32mm, Filter - Odour And Particles, PM 2.5 Upgrade	-	1	Enquire
18476	LR002632	CORE - HEATER	LR002632 CORE - HEATER	-	1	Enquire
18663	LR002680	TUBE - HEATER WATER	LR002680 TUBE - HEATER WATER Heater Core Inlet, Heater Core Outlet	-	1	Enquire
18797	LR003205	RETAINER - AIR CLEANER	LR003205 RETAINER - AIR CLEANER Cover, Filter / To: FH999999	-	1	Enquire
18797	LR066492	RETAINER - AIR CLEANER	LR066492 RETAINER - AIR CLEANER Cover, Filter / From: GH000001 / To: GH113198	-	1	Enquire
18797	LR079185	RETAINER - AIR CLEANER	LR079185 RETAINER - AIR CLEANER Cover, Filter / From: GH113199	-	1	Enquire
19788	LR002673	CAM - HEATER AIR CONTROL	LR002673 CAM - HEATER AIR CONTROL Heater Air Control	-	1	Enquire
19849	LR016631	VALVE - EVAPORATOR EXPANSION	LR016631 VALVE - EVAPORATOR EXPANSION	-	1	Enquire
19850	LR009797	EVAPORATOR	LR009797 EVAPORATOR Service Kit / To: FH039702	-	1	Enquire
19850	LR070870	EVAPORATOR	LR070870 EVAPORATOR Service Kit / From: FH039703 / To: HH223008	-	1	Enquire
19850	LR097253	EVAPORATOR	LR097253 EVAPORATOR Service Kit / From: HH223009	-	1	Enquire
