Name: Air Conditioning Condensr/Compressr (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 4.6 (1 reviews)

Air Conditioning Condensr/Compressr (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Air Conditioning Condensr/Compressr (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V)...

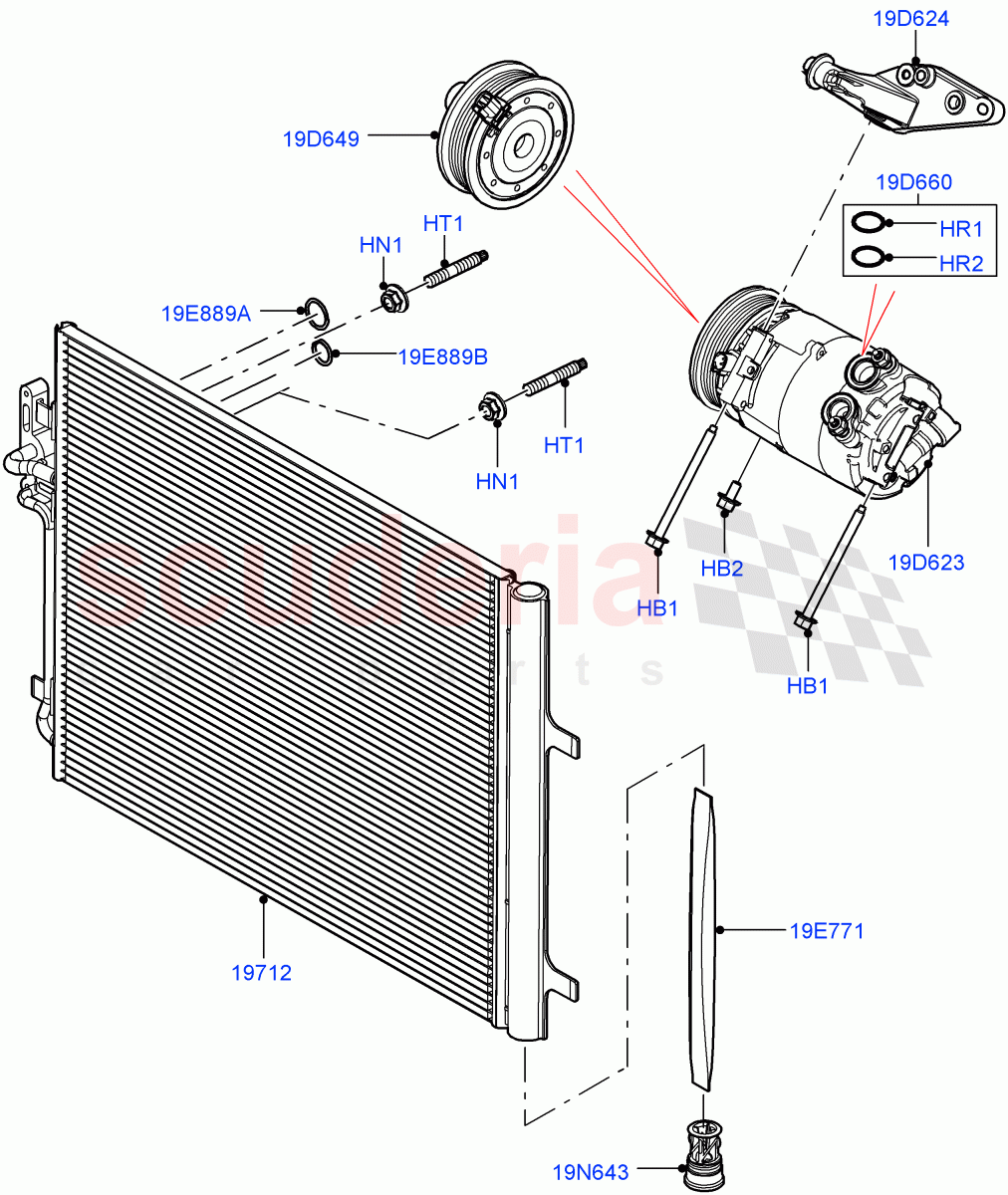

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR027787	SCREW	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003574	BOLT	$2.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001923	RING - SEALING	$4.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001924	O-RING	$7.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015156	STUD	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023921	CONDENSER	$440.97	IN STOCK
	LR034171	CONDENSER	$919.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066915	COMPRESSOR - AIR CONDITIONING	$1,510.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079504	BRACKET - COMPRESSOR	$49.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027782	CLUTCH - A/C COMPRESSOR	$439.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017931	O-RING	$29.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002942	FILTER - AIR CONDITIONER	$31.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR002684	PLUG	$9.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR002658	O-RING	$1.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR002659	O-RING	$1.85	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR027787	SCREW	LR027787 SCREW Hexagonal Head, M8 X 103MM / From: GT000001	$1.81	3
HB2	LR003574	BOLT IN STOCK	LR003574 BOLT Hexagonal Head, M8 x 60MM / From: GT000001 IN STOCK	$2.78	1
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8 / From: GT000001	$2.00	5
HR1	LR001923	RING - SEALING	LR001923 RING - SEALING 24.0 X 3.0MM, Yellow / From: GT000001	$4.94	1
HR2	LR001924	O-RING IN STOCK	LR001924 O-RING 26.3 x 3mm, Inlet, Orange / From: GT000001 IN STOCK	$7.50	1
HT1	LR015156	STUD	LR015156 STUD M8 X 12.5 + M8 X 14.5 / From: GT000001	$1.51	2
19D623	LR066915	COMPRESSOR - AIR CONDITIONING	LR066915 COMPRESSOR - AIR CONDITIONING From: GT000001	$1,510.48	1
19D624	LR079504	BRACKET - COMPRESSOR	LR079504 BRACKET - COMPRESSOR idler, Lower / From: GT000001	$49.23	1
19D649	LR027782	CLUTCH - A/C COMPRESSOR	LR027782 CLUTCH - A/C COMPRESSOR From: GT000001	$439.55	1
19D660	LR017931	O-RING	LR017931 O-RING Air Conditioning Compressor O-Ring Kit / From: GT000001	$29.86	1
19E771	LR002942	FILTER - AIR CONDITIONER IN STOCK	LR002942 FILTER - AIR CONDITIONER From: GT000001 IN STOCK	$31.92	1
19E889A	LR002658	O-RING IN STOCK	LR002658 O-RING IN STOCK	$1.85	1
19E889B	LR002659	O-RING IN STOCK	LR002659 O-RING IN STOCK	$1.85	1
19N643	LR002684	PLUG IN STOCK	LR002684 PLUG Air Conditioning Condenser, Condenser Assy / From: GT000001 IN STOCK	$9.40	1
19712	LR023921	CONDENSER IN STOCK	LR023921 CONDENSER For Standard Markets / From: GT000001 IN STOCK	$440.97	1
19712	LR034171	CONDENSER	LR034171 CONDENSER For Hot Markets / From: GT000001	$919.00	1
