Front Axle Case (Halewood (Uk), Efficient Driveline) ((V) Fromeh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Front Axle Case (Halewood (UK), Efficient Driveline) ((V) FROMEH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001192 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYG500800 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR051077 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR001949 WASHER - DRAIN PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR051083 PIPE - CONNECTING Enquire To Order
LR095326 PIPE - CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR049836 TUBE - BREATHER Enquire To Order
LR049837 TUBE - BREATHER Enquire To Order
LR049838 TUBE - BREATHER Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051289 FLANGE - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR051288 SEAL - POWER TRANSFER UNIT Enquire To Order
Photo Part No Description Price (each) Stock
LR051075 POWER TRANSFER UNIT Enquire To Order
LR066501 POWER TRANSFER UNIT Enquire To Order
Photo Part No Description Price (each) Stock
LR002877 PLUG - FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR051294 PLUG - DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR049847 HEAT SHIELD - TRANSFER CASE Enquire To Order
LR061466 HEAT SHIELD - TRANSFER CASE Enquire To Order
LR068975 HEAT SHIELD - TRANSFER CASE Enquire To Order
Photo Part No Description Price (each) Stock
LR054809 HEAT SHIELD - TRANSFER CASE Enquire To Order
Photo Part No Description Price (each) Stock
LR003153 RING - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR003154 RING - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR001950 RING - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR003155 RING - SEALING Enquire To Order
View All

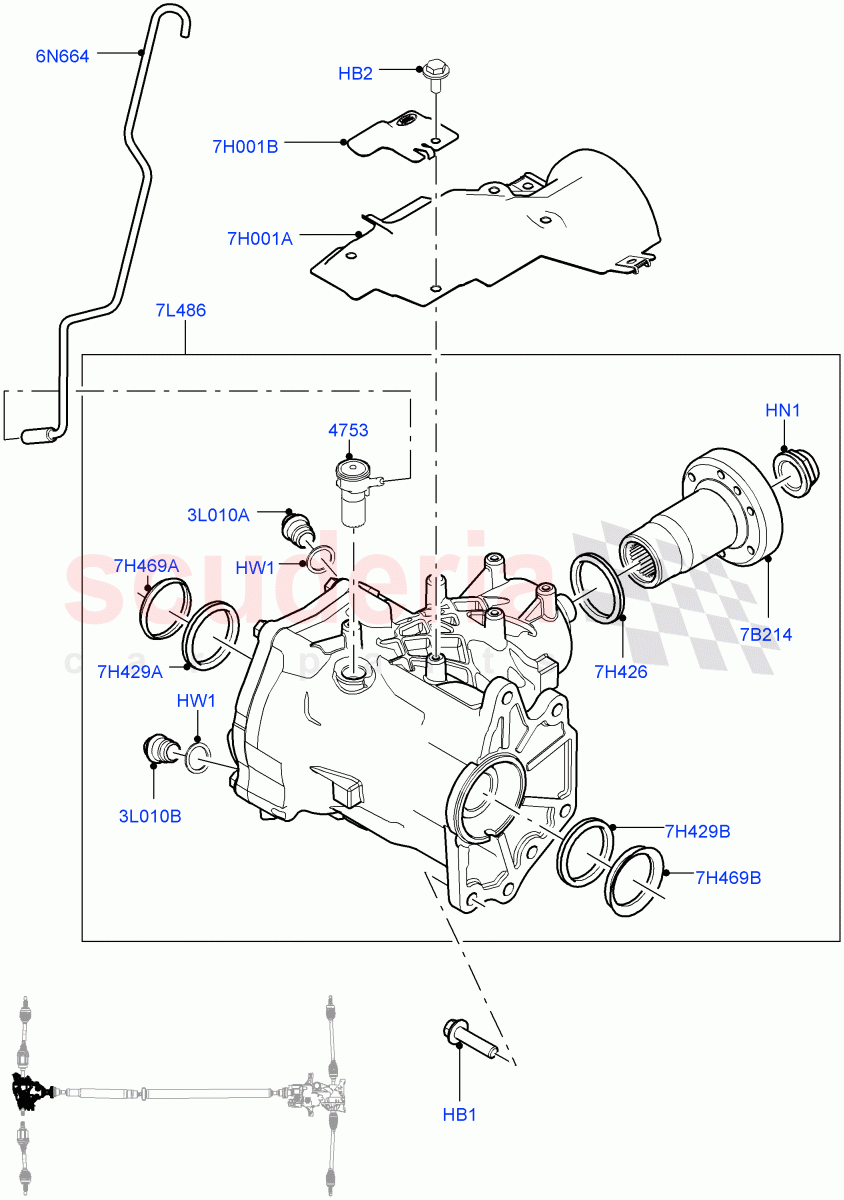

Front Axle Case (Halewood (UK), Efficient Driveline) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001192
BOLT
Hexagonal Head, M10 x 40MM, PTU To Gearbox / From: EH000001 		- 6 Enquire
HB2 RYG500800
BOLT
Heat Shield, Hexagonal Head, M6 X 16MM / From: EH000001 		- 4 Enquire
HN1 LR051077
NUT
PTU Flange / From: EH000001 		- 1 Enquire
HW1 LR001949
WASHER - DRAIN PLUG
18 X 24 X 1.5, Sealing Washer / From: EH000001 		- 2 Enquire
3L010A LR002877
PLUG - FILLER
Filler Plug / From: EH000001 		- 1 Enquire
3L010B LR051294
PLUG - DRAIN
Drain Plug / From: EH000001 		- 1 Enquire
6N664 LR049836
TUBE - BREATHER
2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD / Breather Pipe / From: EH000001 / To: EH961192 		- 1 Enquire
6N664 LR049837
TUBE - BREATHER
2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Breather Pipe / From: EH000001 / To: EH953756 		- 1 Enquire
6N664 LR049838
TUBE - BREATHER
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD / Breather Pipe / From: EH000001 / To: FH984095 		- 1 Enquire
6N664 LR065709
TUBE - BREATHER
2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Breather Pipe / From: EH953757 / To: FH047925 		- 1 Enquire
6N664 LR072630
TUBE - BREATHER
2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Breather Pipe / From: FH047926 		- 1 Enquire
6N664 LR065707
TUBE - BREATHER
2.0L 16V TIVCT T/C Gen2 Petrol, 9 Speed Auto AWD / Breather Pipe / From: EH961193 		- 1 Enquire
6N664 LR065708
TUBE - BREATHER
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD / Breather Pipe / From: FH984096 		- 1 Enquire
6N664 LR072224
TUBE
2.0L I4 DSL MID DOHC AJ200 / Breather Pipe / From: GH000001 		- 1 Enquire
6N664 LR094079
TUBE - BREATHER
2.0L I4 High DOHC AJ200 Petrol / Breather Pipe / From: JH000001 		- 1 Enquire
7B214 LR051289
FLANGE - DIFFERENTIAL
PTU Flange / From: EH000001 		- 1 Enquire
7H001A LR049847
HEAT SHIELD - TRANSFER CASE
Main / From: EH000001 / To: EH872916 		- 1 Enquire
7H001A LR061466
HEAT SHIELD - TRANSFER CASE
Main / From: EH872917 / To: FH035327 		- 1 Enquire
7H001A LR068975
HEAT SHIELD - TRANSFER CASE
Main / From: FH035328 		- 1 Enquire
7H001B LR054809
HEAT SHIELD - TRANSFER CASE
2.0L 16V TIVCT T/C Gen2 Petrol / Additional / From: EH000001 		- 1 Enquire
7H426 LR051288
SEAL - POWER TRANSFER UNIT
For Differential Flange / From: EH000001 		- 1 Enquire
7H429A LR003153
RING - SEALING
RH, Driveshaft, Inner / From: EH000001 		- 1 Enquire
7H429B LR003154
RING - SEALING
LH, Driveshaft, Inner / From: EH000001 		- 1 Enquire
7H469A LR001950
RING - SEALING
RH, Driveshaft, Outer / From: EH000001 		- 1 Enquire
7H469B LR003155
RING - SEALING
LH, Driveshaft, Outer / From: EH000001 		- 1 Enquire
7L486 LR051075
POWER TRANSFER UNIT
New Part-Please Check For Reman Version / From: EH000001 		- 1 Enquire
7L486 LR066501
POWER TRANSFER UNIT
Remanufactured Part / From: EH000001 		- 1 Enquire
4753 LR051083
PIPE - CONNECTING
Breather Pipe, Connection / From: EH000001 / To: HH190580 		- 1 Enquire
4753 LR095326
PIPE - CONNECTING
Breather Pipe, Connection / From: HH190581 		- 1 Enquire
