Drive Shaft - Rear Axle Drive (Propshaft) (Itatiaia (Brazil), Dynamic Driveline) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Drive Shaft - Rear Axle Drive (Propshaft) (Itatiaia (Brazil), Dynamic Driveline) ((V) FROMGT000001)

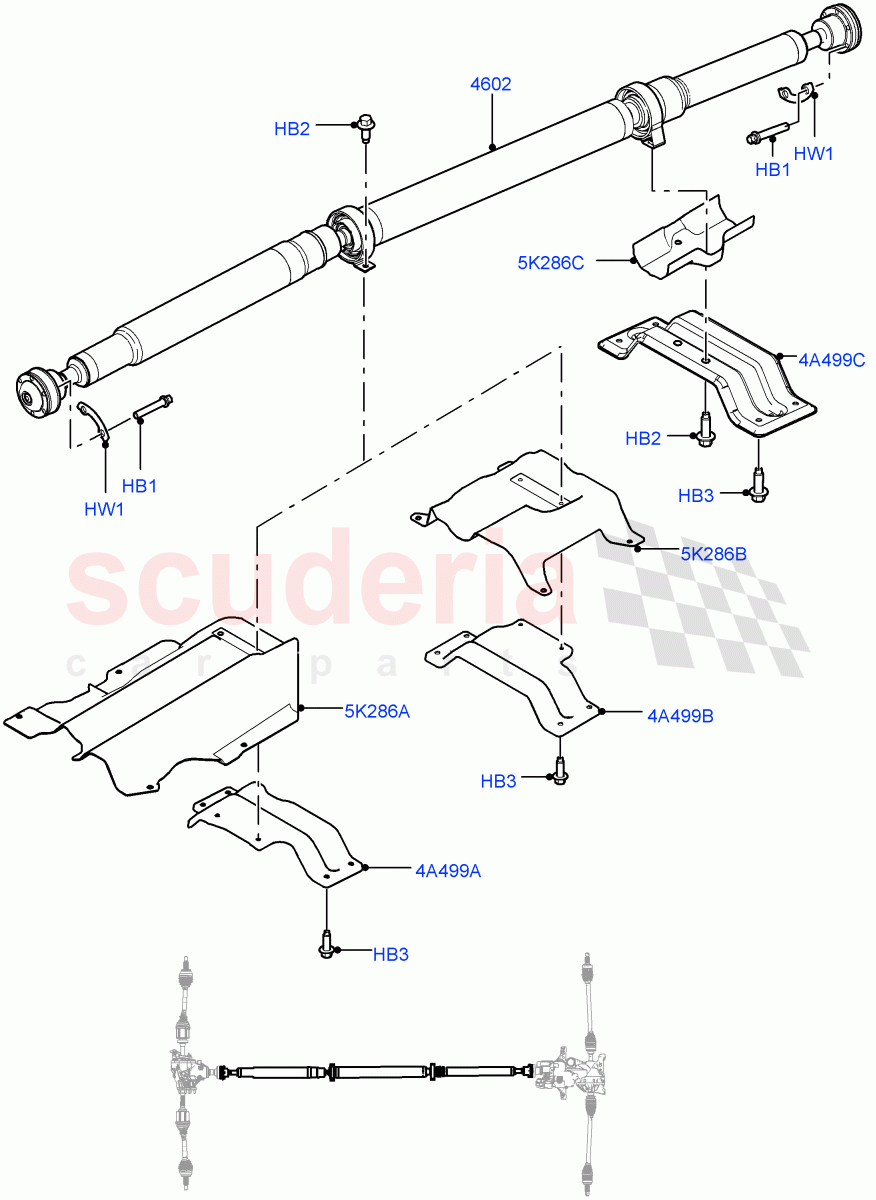

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001193	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500200	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004239	WASHER - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071966	SHAFT - MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072057	BRACKET - PROPSHAFT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072056	BRACKET - PROPSHAFT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108287	BRACKET - PROPSHAFT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066113	SHIELD - DIESEL PARTICULATE FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066114	SHIELD - DIESEL PARTICULAR FILTER	Enquire	To Order
	LR083889	SHIELD - DIESEL PARTICULAR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065718	HEAT SHIELD - PROPSHAFT BEARING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR001193	BOLT	LR001193 BOLT M8 X 45MM, Service Fit - Flange Type Propshaft Connection, Torx / From: GT000001	-	12	Enquire
HB2	RYG500200	BOLT	RYG500200 BOLT Hexagonal Head, M8 X 16MM / From: GT000001	-	4	Enquire
HB3	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: GT000001	-	8	Enquire
HW1	LR004239	WASHER - SPECIAL	LR004239 WASHER - SPECIAL Service Fit - Flange Type Propshaft Connection, Special Washer / From: GT000001	-	6	Enquire
4A499A	LR072057	BRACKET - PROPSHAFT SUPPORT	LR072057 BRACKET - PROPSHAFT SUPPORT 2.0L I4 DSL MID DOHC AJ200 / Front, Propshaft / From: GT000001	-	1	Enquire
4A499B	LR072056	BRACKET - PROPSHAFT SUPPORT	LR072056 BRACKET - PROPSHAFT SUPPORT 2.0L 16V TIVCT T/C 240PS Petrol / Less Heatshield, Propshaft, Rear / From: GT000001	-	1	Enquire
4A499C	LR108287	BRACKET - PROPSHAFT SUPPORT	LR108287 BRACKET - PROPSHAFT SUPPORT Less Heatshield, Propshaft, Rear / From: GT000001	-	1	Enquire
5K286A	LR066113	SHIELD - DIESEL PARTICULATE FILTER	LR066113 SHIELD - DIESEL PARTICULATE FILTER 2.0L I4 DSL MID DOHC AJ200 / From: GT000001	-	1	Enquire
5K286B	LR066114	SHIELD - DIESEL PARTICULAR FILTER	LR066114 SHIELD - DIESEL PARTICULAR FILTER 2.0L 16V TIVCT T/C 240PS Petrol / From: GT000001 / To: HT999999	-	1	Enquire
5K286B	LR083889	SHIELD - DIESEL PARTICULAR FILTER	LR083889 SHIELD - DIESEL PARTICULAR FILTER 2.0L I4 Mid DOHC AJ200 Petrol / From: JT000001	-	1	Enquire
5K286C	LR065718	HEAT SHIELD - PROPSHAFT BEARING	LR065718 HEAT SHIELD - PROPSHAFT BEARING 2.0L I4 Mid DOHC AJ200 Petrol / From: JT000001	-	1	Enquire
4602	LR071966	SHAFT - MAIN	LR071966 SHAFT - MAIN From: GT000001	-	1	Enquire
