Timing Gear Covers (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Timing Gear Covers (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol)

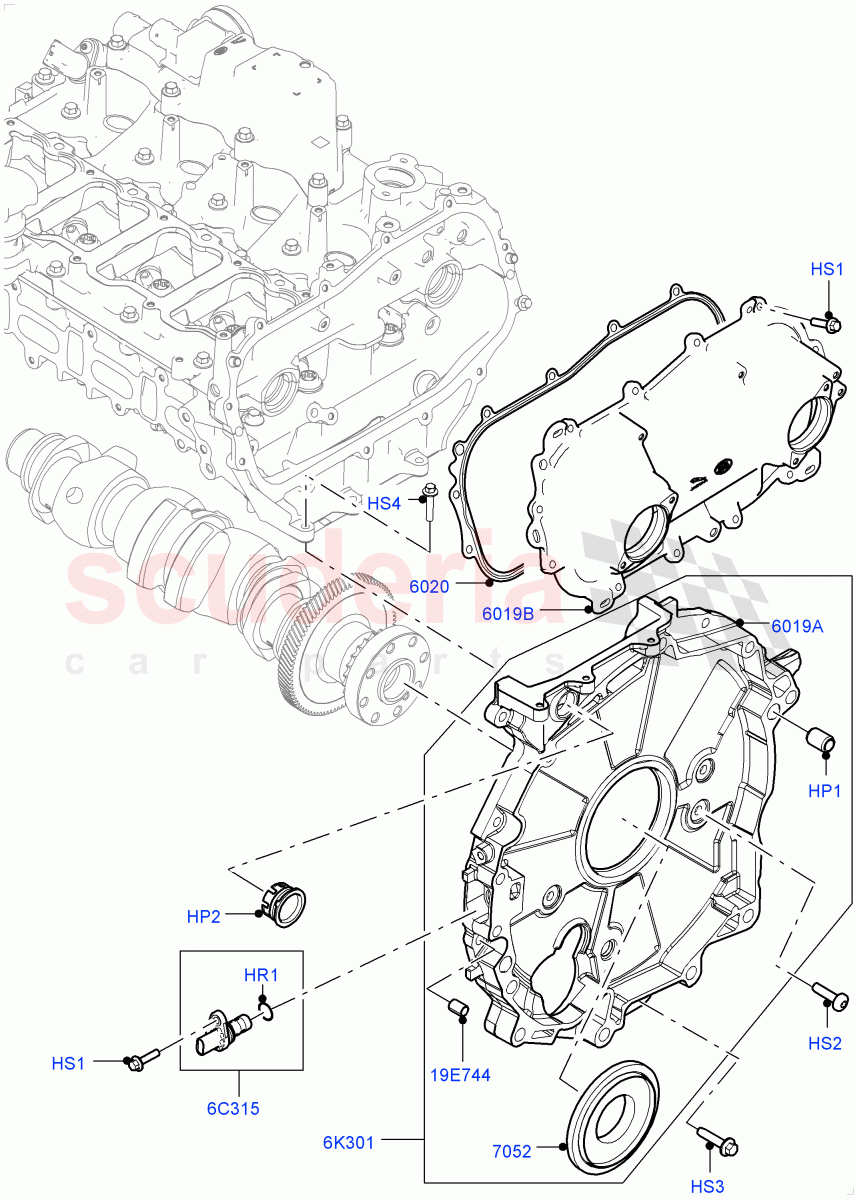

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073787	PIN - CENTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091801	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091809	GASKET - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084639	SEAL - CRANKSHAFT OIL - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094427	COVER - CYLINDER BLOCK REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108934	COVER - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074068	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108581	RETAINER - CRANKSHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052127	Pin - Fastening	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HP1	LR073787	PIN - CENTERING	LR073787 PIN - CENTERING 15.7MM, Pin - Dowell / From: HG161788	-	2	Enquire
HP2	LR091801	PLUG - BLANKING	LR091801 PLUG - BLANKING Blanking, Includes O'Ring / From: HG161788	-	1	Enquire
HR1	LR095782	O-RING	LR095782 O-RING 17.0MM, Crankshaft Position Sensor(CKP) / From: HG161788	-	1	Enquire
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM, Timing Chain Cover / From: HG161788	-	12	Enquire
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM / From: HG161788	-	1	Enquire
HS2	LR073786	SCREW	LR073786 SCREW M8 X 30MM / From: HG161788	-	3	Enquire
HS3	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: HG161788	-	8	Enquire
HS4	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: HG161788	-	3	Enquire
6C315	LR074068	SENSOR - CRANKSHAFT POSITION - CPS	LR074068 SENSOR - CRANKSHAFT POSITION - CPS From: HG161788	-	1	Enquire
6K301	LR108581	RETAINER - CRANKSHAFT OIL SEAL	LR108581 RETAINER - CRANKSHAFT OIL SEAL Includes Seal, Lower, Timing Chain Cover / From: HG161788	-	1	Enquire
19E744	LR052127	Pin - Fastening	LR052127 Pin - Fastening	-	2	Enquire
6019A	LR094427	COVER - CYLINDER BLOCK REAR	LR094427 COVER - CYLINDER BLOCK REAR Lower, Timing Chain Cover / From: HG161788	-	1	Enquire
6019B	LR108934	COVER - CYLINDER HEAD	LR108934 COVER - CYLINDER HEAD Aluminium, Timing Chain Cover, Upper / From: HG161788	-	1	Enquire
6020	LR091809	GASKET - COVER	LR091809 GASKET - COVER Timing Chain Cover / From: HG161788	-	1	Enquire
7052	LR084639	SEAL - CRANKSHAFT OIL - REAR	LR084639 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal, Rear / From: HG161788	-	1	Enquire
