Name: Cylinder Head Cover (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol)
Rating: 5.0 (1 reviews)

Cylinder Head Cover (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Cylinder Head Cover (2.0L I4 High DOHC AJ200 Petrol, Changsu (China), 2.0L I4 Mid DOHC AJ200 Petrol)

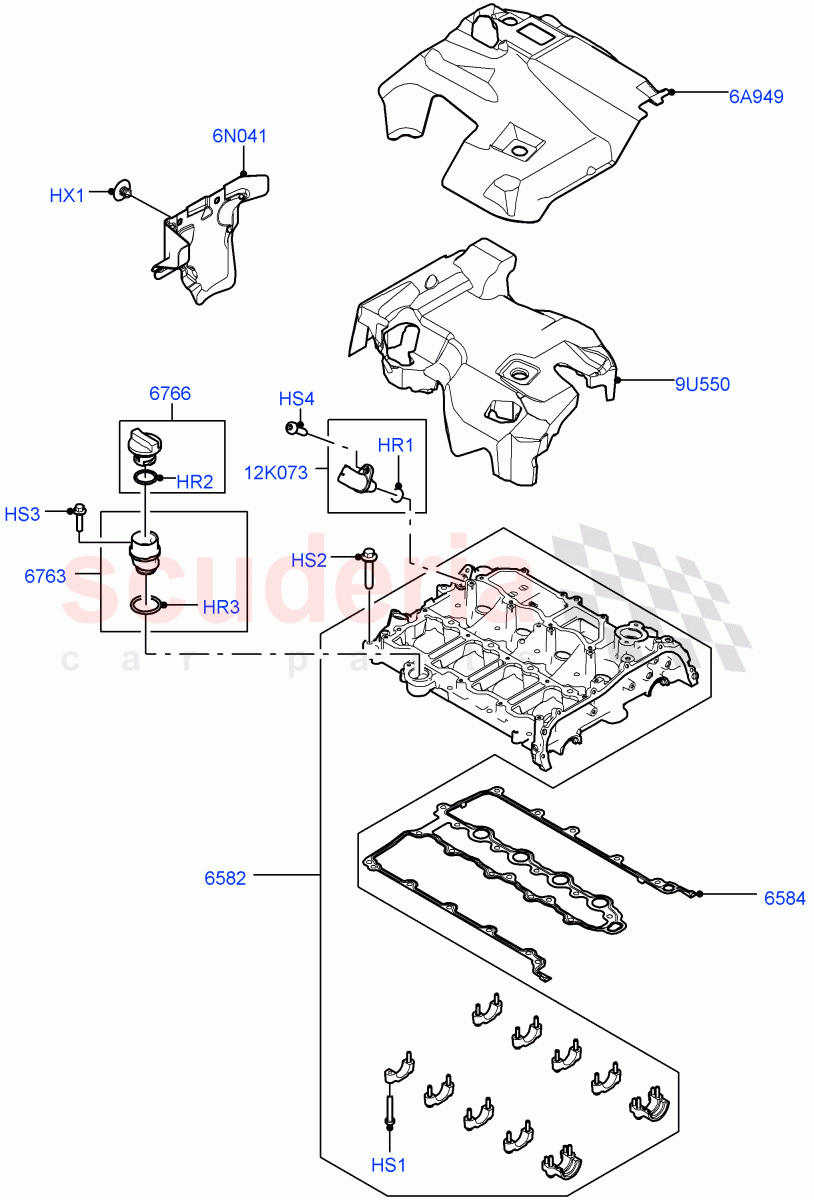

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095781	O-RING	$9.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073781	O-RING	$4.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121391	O-RING	$14.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092072	SCREW	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094062	PIN - TRIM	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091531	COVER - CYLINDER HEAD	$213.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091765	GASKET - CAMSHAFT COVER	$40.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094414	PIPE - OIL INLET	$32.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094641	CAP - OIL FILLER	$34.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106463	COVER - ENGINE TOP	$216.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106461	INSULATOR - CYLINDER HEAD	$43.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093826	INSULATOR - FOAM PAD	$91.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074065	SENSOR - CAMSHAFT POSITION	$196.51	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095781	O-RING IN STOCK	LR095781 O-RING 17.0MM, Camshaft Position Sensor / From: HG161788 IN STOCK	$9.39	2
HR2	LR073781	O-RING IN STOCK	LR073781 O-RING Filler Cap, IN STOCK	$4.88	1
HR3	LR121391	O-RING	LR121391 O-RING FILLER,	$14.24	1
HS1	LR092072	SCREW	LR092072 SCREW M6 x 35MM / From: HG161788	$1.20	20
HS2	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: HG161788	$2.40	19
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: HG161788	$1.28	1
HS4	LR073720	SCREW	LR073720 SCREW Camshaft Position Sensor, M6 X 20MM / From: HG161788	$1.53	2
HX1	LR094062	PIN - TRIM	LR094062 PIN - TRIM Pin / From: HG161788	$0.58	2
6A949	LR106463	COVER - ENGINE TOP	LR106463 COVER - ENGINE TOP Top / From: HG161788	$216.30	1
6N041	LR106461	INSULATOR - CYLINDER HEAD	LR106461 INSULATOR - CYLINDER HEAD Engine Front / From: HG161788	$43.92	1
9U550	LR093826	INSULATOR - FOAM PAD	LR093826 INSULATOR - FOAM PAD Camshaft Cover, Top / From: HG161788	$91.76	1
12K073	LR074065	SENSOR - CAMSHAFT POSITION	LR074065 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: HG161788	$196.51	2
6582	LR091531	COVER - CYLINDER HEAD	LR091531 COVER - CYLINDER HEAD From: HG161788	$213.45	1
6584	LR091765	GASKET - CAMSHAFT COVER	LR091765 GASKET - CAMSHAFT COVER Camshaft Cover / From: HG161788	$40.32	1
6763	LR094414	PIPE - OIL INLET	LR094414 PIPE - OIL INLET From: HG161788	$32.15	1
6766	LR094641	CAP - OIL FILLER	LR094641 CAP - OIL FILLER From: HG161788	$34.08	1
