Transmission External Components (2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Transmission External Components (2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Itatiaia...

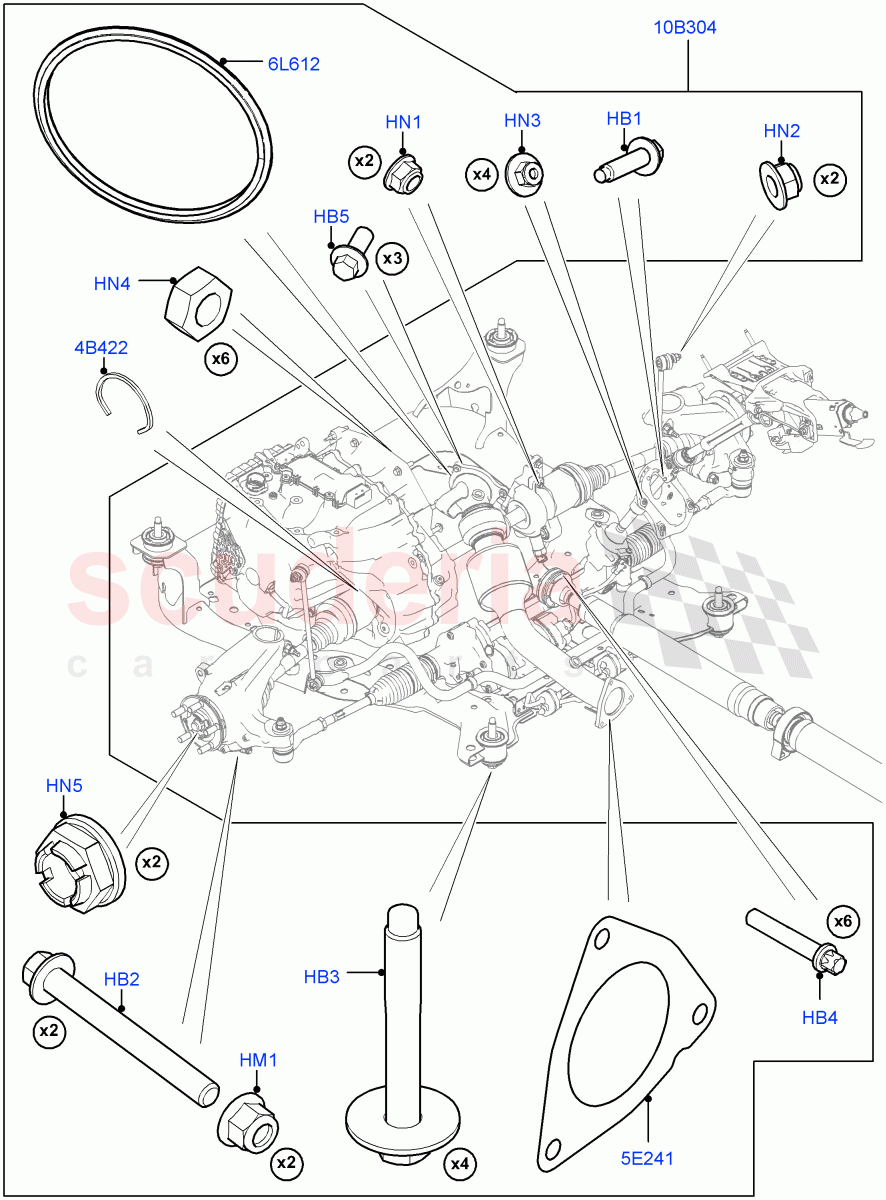

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	QYG500090	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024506	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000466	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001193	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005738	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX110056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049435	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024151	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003158	RETAINER - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025110	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070757	KIT - FIXING PARTS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	QYG500090	BOLT - HEX.HEAD	QYG500090 BOLT - HEX.HEAD Hexagonal Head, M8 X 30 / From: GT000001	-	1	Enquire
HB2	LR024506	BOLT	LR024506 BOLT M12 x 130MM / From: GT000001	-	2	Enquire
HB3	LR000466	BOLT AND WASHER - HEX.HEAD	LR000466 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M16 / From: GT000001	-	4	Enquire
HB4	LR001193	BOLT	LR001193 BOLT M8 X 45MM, Service Fit - Flange Type Propshaft Connection, Torx / From: GT000001	-	6	Enquire
HB5	LR005738	BOLT	LR005738 BOLT M8 x 31MM / From: GT000001	-	3	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 / From: GT000001	-	2	Enquire
HN1	FX108046	NUT - LOCKING	FX108046 NUT - LOCKING M8 / From: GT000001	-	2	Enquire
HN2	FX110056	NUT - HEX.	FX110056 NUT - HEX. Hex Nut Type, M10 / From: GT000001	-	2	Enquire
HN3	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: GT000001	-	4	Enquire
HN4	LR049435	NUT	LR049435 NUT M10X1.5X21.8 / From: GT000001	-	6	Enquire
HN5	LR024151	NUT AND WASHER - HEX.	LR024151 NUT AND WASHER - HEX. M24X2.0 / From: GT000001	-	2	Enquire
4B422	LR003158	RETAINER - SPECIAL	LR003158 RETAINER - SPECIAL From: GT000001	-	1	Enquire
5E241	WCM500120	GASKET - EXHAUST PIPE	WCM500120 GASKET - EXHAUST PIPE From: GT000001	-	1	Enquire
6L612	LR025110	GASKET - EXHAUST PIPE	LR025110 GASKET - EXHAUST PIPE From: GT000001	-	1	Enquire
10B304	LR070757	KIT - FIXING PARTS	LR070757 KIT - FIXING PARTS From: GT000001	-	1	Enquire
