Name: Transmission External Components (2.2L CR DI 16V Diesel, 9 Speed Auto AWD, Halewood (UK))
Rating: 5.0 (1 reviews)

View All

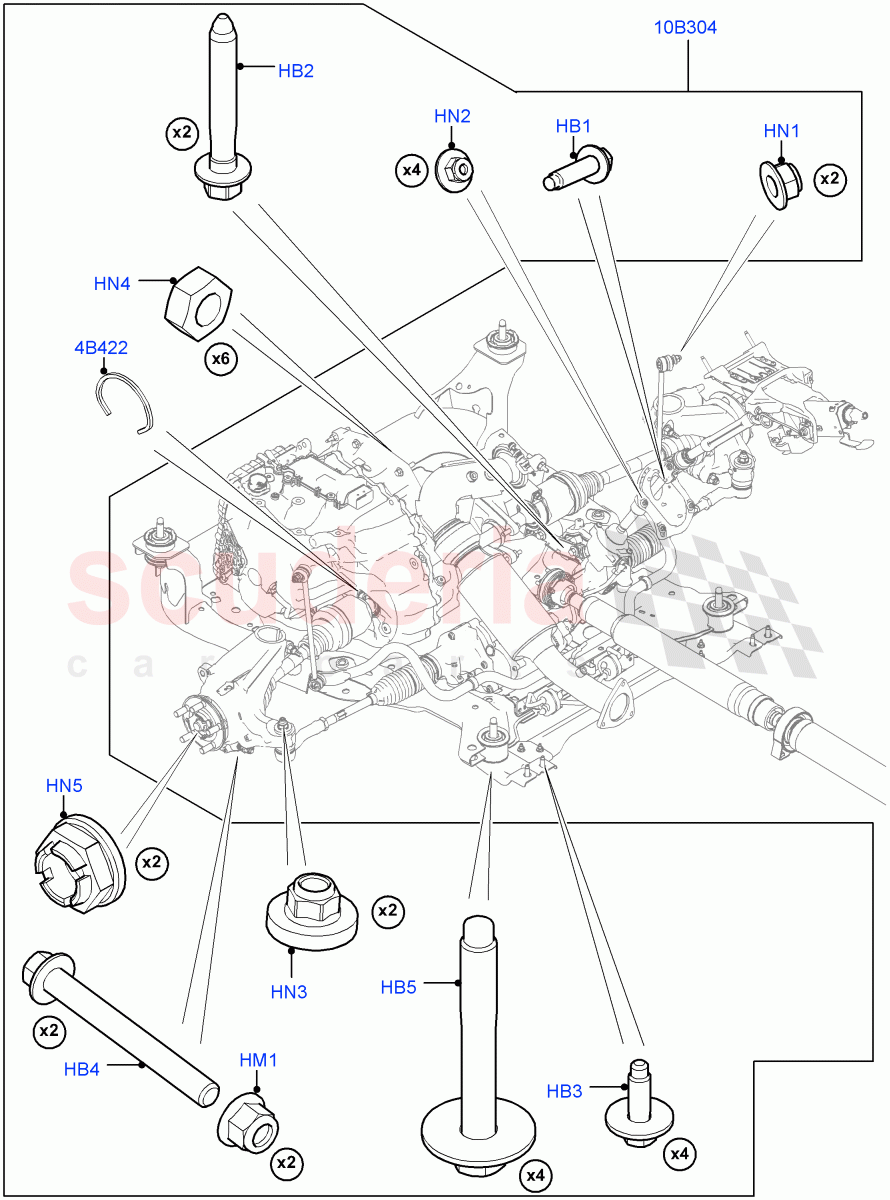

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	QYG500090	BOLT - HEX.HEAD	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000094	BOLT - HEX.HEAD	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR001920	BOLT	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024506	BOLT	$5.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000466	BOLT AND WASHER - HEX.HEAD	$4.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	$1.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX110056	NUT - HEX.	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR026275	NUT - FLANGED	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049435	NUT	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024151	NUT AND WASHER - HEX.	$9.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003158	RETAINER - SPECIAL	$2.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR070758	KIT - FIXING PARTS	$68.99	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	QYG500090	BOLT - HEX.HEAD	QYG500090 BOLT - HEX.HEAD Hexagonal Head, M8 X 30	$0.55	1
HB2	LR000094	BOLT - HEX.HEAD IN STOCK	LR000094 BOLT - HEX.HEAD M12 x 75MM IN STOCK	$1.11	2
HB3	LR001920	BOLT	LR001920 BOLT M10 X 25MM	$2.01	4
HB4	LR024506	BOLT	LR024506 BOLT M12 x 130MM	$5.23	2
HB5	LR000466	BOLT AND WASHER - HEX.HEAD IN STOCK	LR000466 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M16 IN STOCK	$4.42	4
HM1	FY112056	NUT - HEX. IN STOCK	FY112056 NUT - HEX. Hex Nut Type, M12 IN STOCK	$1.86	2
HN1	FX110056	NUT - HEX. IN STOCK	FX110056 NUT - HEX. Hex Nut Type, M10 IN STOCK	$0.43	2
HN2	RYH500420	NUT AND WASHER - HEX. IN STOCK	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer IN STOCK	$0.43	4
HN3	LR026275	NUT - FLANGED	LR026275 NUT - FLANGED M14	$2.23	2
HN4	LR049435	NUT	LR049435 NUT M10X1.5X21.8	$1.76	6
HN5	LR024151	NUT AND WASHER - HEX. IN STOCK	LR024151 NUT AND WASHER - HEX. M24X2.0 IN STOCK	$9.59	2
4B422	LR003158	RETAINER - SPECIAL IN STOCK	LR003158 RETAINER - SPECIAL IN STOCK	$2.59	1
10B304	LR070758	KIT - FIXING PARTS	LR070758 KIT - FIXING PARTS	$68.99	1

Transmission External Components (2.2L Cr Di 16V Diesel, 9 Speed Auto Awd, Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]
