Name: Front Exhaust System (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHH000001)
Rating: 4.8 (1 reviews)

Front Exhaust System (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Exhaust System (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions, 2.0L I4 DSL HIGH DOHC...

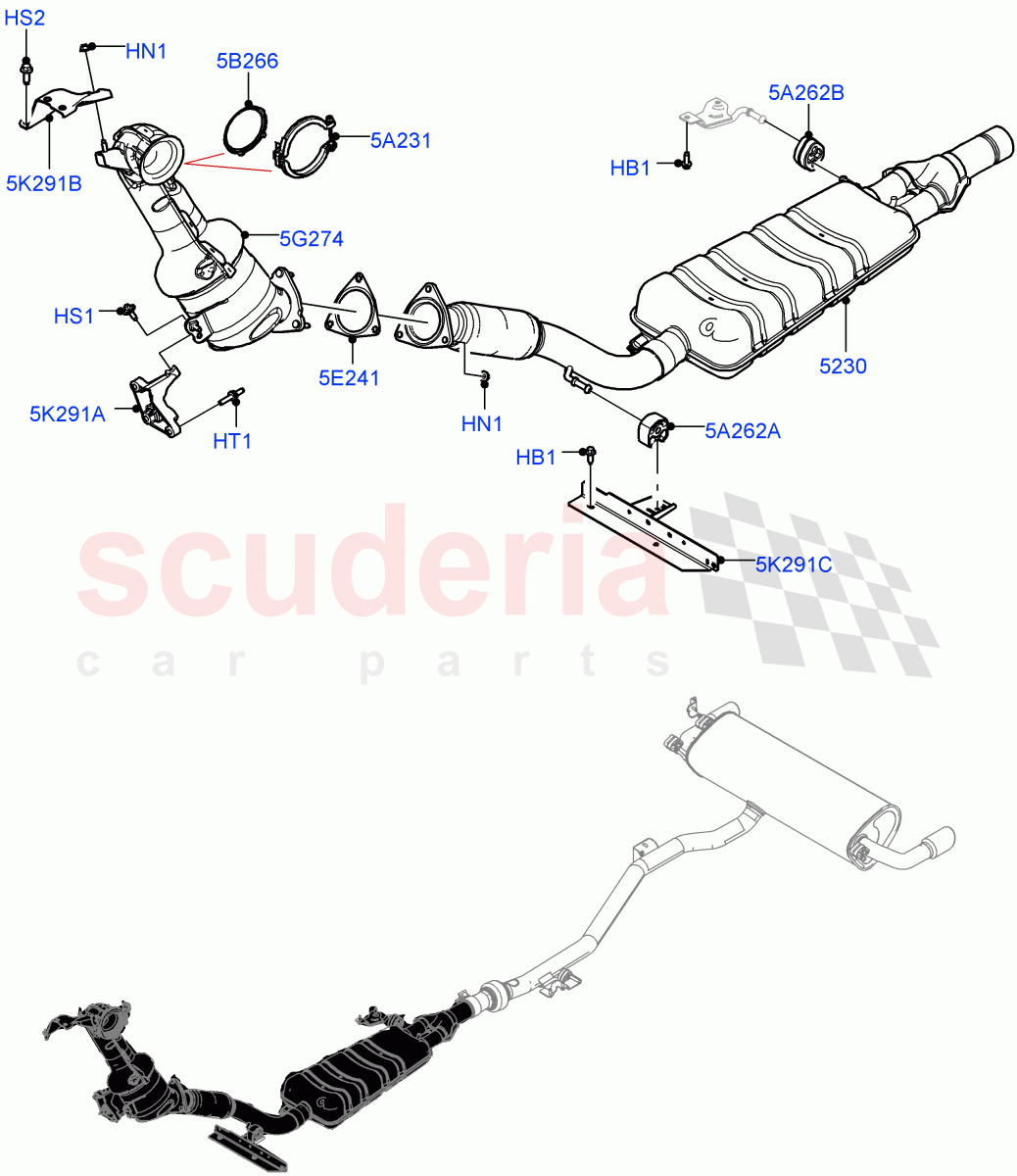

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYG500050	SCREW	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023448	STUD	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084320	MUFFLER - CENTRE	$616.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111338	CLAMP - EXHAUST	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	$15.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081471	GASKET - EXHAUST PIPE	$12.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084321	PIPE - EXHAUST	$1,129.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093418	INSULATOR - RUBBER	$35.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072210	BRACKET - EXHAUST PIPE MOUNTING	$47.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079603	BRACKET - EXHAUST PIPE MOUNTING	$28.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096062	BRACKET - EXHAUST PIPE MOUNTING	$53.81	To Order
	LR110457	BRACKET - EXHAUST PIPE MOUNTING	$54.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Bracket, Hexagonal Head, M8 X 20MM, Muffler / From: HH000001	$0.99	4
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 / From: HH000001 IN STOCK	$0.41	4
HS1	PYG500050	SCREW	PYG500050 SCREW Bracket, Lower, M8 X 20MM / From: HH000001	$1.01	2
HS2	RYG500470	SCREW	RYG500470 SCREW Bracket, Hexagonal Head, M10 X 25MM, Upper / From: HH000001	$0.58	1
HT1	LR023448	STUD	LR023448 STUD M8 X 30 + M8 X 16MM, To Engine / From: HH000001	$4.82	3
5A231	LR111338	CLAMP - EXHAUST	LR111338 CLAMP - EXHAUST 101 mm / From: HH000001	$22.92	1
5A262A	LR093418	INSULATOR - RUBBER	LR093418 INSULATOR - RUBBER Front / From: HH000001	$35.00	1
5A262B	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Rear / From: HH000001	$11.29	1
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm, Turbocharger / From: HH000001	$15.91	1
5E241	LR081471	GASKET - EXHAUST PIPE	LR081471 GASKET - EXHAUST PIPE Outlet / From: HH000001	$12.45	1
5G274	LR084321	PIPE - EXHAUST	LR084321 PIPE - EXHAUST From: HH000001	$1,129.99	1
5K291A	LR072210	BRACKET - EXHAUST PIPE MOUNTING	LR072210 BRACKET - EXHAUST PIPE MOUNTING Lower, To Engine / From: HH000001	$47.95	1
5K291B	LR079603	BRACKET - EXHAUST PIPE MOUNTING	LR079603 BRACKET - EXHAUST PIPE MOUNTING Upper / From: HH000001	$28.13	1
5K291C	LR096062	BRACKET - EXHAUST PIPE MOUNTING	LR096062 BRACKET - EXHAUST PIPE MOUNTING Rear / From: HH000001 / To: JH297767	$53.81	1
5K291C	LR110457	BRACKET - EXHAUST PIPE MOUNTING	LR110457 BRACKET - EXHAUST PIPE MOUNTING Rear / From: JH297768	$54.20	1
5230	LR084320	MUFFLER - CENTRE	LR084320 MUFFLER - CENTRE From: HH000001	$616.72	1
