Exhaust System (Front Section) (2.0L I4 DSL MID DOHC AJ200, Proconve L6 Emissions, Stage V Plus DPF, 2.0L I4 DSL HIGH DOHC AJ200, DPF + DE-SOX) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exhaust System (Front Section) (2.0L I4 DSL MID DOHC AJ200, Proconve L6 Emissions, Stage V Plus...

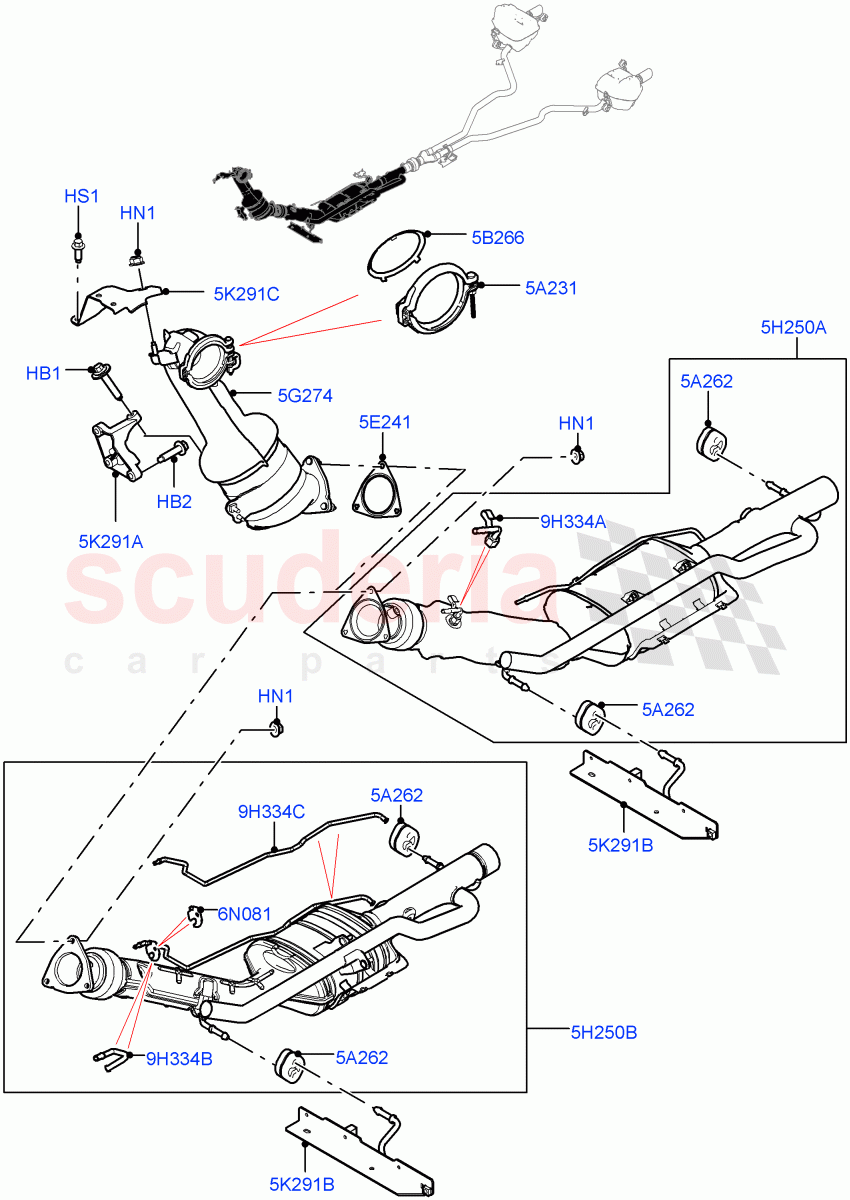

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR057202	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500290	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082692	CLAMP - EXHAUST	Enquire	To Order
	LR111338	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072729	GASKET - EXHAUST PIPE	Enquire	To Order
	LR081471	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072207	PIPE - EXHAUST	Enquire	To Order
	LR086932	PIPE - EXHAUST	Enquire	To Order
	LR094191	PIPE - EXHAUST	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR136723	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072209	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR086933	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR116036	FILTER - DIESEL PARTICLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR134914	FILTER - DIESEL PARTICLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072210	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072222	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR107787	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072211	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR079603	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092773	PIPE - EXHAUST PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136720	PIPE - EXHAUST PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136722	PIPE - EXHAUST PRESSURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR057202	BOLT AND WASHER - HEX.HEAD	LR057202 BOLT AND WASHER - HEX.HEAD M8 x 40MM / From: GH000001	-	1	Enquire
HB2	RYG500290	BOLT - HEX.HEAD	RYG500290 BOLT - HEX.HEAD Hexagonal Head, M8 x 30MM / From: GH000001	-	3	Enquire
HN1	FX108046	NUT - LOCKING	FX108046 NUT - LOCKING M8 / From: GH000001	-	3	Enquire
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM / From: GH000001	-	1	Enquire
5A231	LR082692	CLAMP - EXHAUST	LR082692 CLAMP - EXHAUST 101 mm / From: GH000001 / To: GH999999	-	1	Enquire
5A231	LR111338	CLAMP - EXHAUST	LR111338 CLAMP - EXHAUST 101 mm / From: HH000001	-	1	Enquire
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER From: GH000001	-	2	Enquire
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm / From: GH000001	-	1	Enquire
5E241	LR072729	GASKET - EXHAUST PIPE	LR072729 GASKET - EXHAUST PIPE From: GH000001 / To: GH099660	-	1	Enquire
5E241	LR081471	GASKET - EXHAUST PIPE	LR081471 GASKET - EXHAUST PIPE From: GH099661	-	1	Enquire
5G274	LR072207	PIPE - EXHAUST	LR072207 PIPE - EXHAUST From: GH000001 / To: GH166801	-	1	Enquire
5G274	LR086932	PIPE - EXHAUST	LR086932 PIPE - EXHAUST From: GH166802 / To: HH999999	-	1	Enquire
5G274	LR094191	PIPE - EXHAUST	LR094191 PIPE - EXHAUST 2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001	-	1	Enquire
5G274	LR086932	PIPE - EXHAUST	LR086932 PIPE - EXHAUST 2.0L I4 DSL MID DOHC AJ200 / From: JH000001	-	1	Enquire
5H250A	LR072209	FILTER - DIESEL PARTICLE	LR072209 FILTER - DIESEL PARTICLE From: GH000001 / To: GH166801	-	1	Enquire
5H250A	LR086933	FILTER - DIESEL PARTICLE	LR086933 FILTER - DIESEL PARTICLE From: GH166802 / To: HH999999	-	1	Enquire
5H250A	LR116036	FILTER - DIESEL PARTICLE	LR116036 FILTER - DIESEL PARTICLE From: JH000001 / To: JH322288	-	1	Enquire
5H250A	LR117081	FILTER - DIESEL PARTICLE	LR117081 FILTER - DIESEL PARTICLE From: JH322289 / To: JH326288	-	1	Enquire
5H250B	LR134914	FILTER - DIESEL PARTICLE	LR134914 FILTER - DIESEL PARTICLE From: JH326289	-	1	Enquire
5K291A	LR072210	BRACKET - EXHAUST PIPE MOUNTING	LR072210 BRACKET - EXHAUST PIPE MOUNTING From: GH000001	-	1	Enquire
5K291B	LR072222	BRACKET - EXHAUST PIPE MOUNTING	LR072222 BRACKET - EXHAUST PIPE MOUNTING From: GH000001 / To: JH271734	-	1	Enquire
5K291B	LR107787	BRACKET - EXHAUST PIPE MOUNTING	LR107787 BRACKET - EXHAUST PIPE MOUNTING From: JH271735	-	1	Enquire
5K291C	LR072211	BRACKET - EXHAUST PIPE MOUNTING	LR072211 BRACKET - EXHAUST PIPE MOUNTING From: GH000001 / To: GH139739	-	1	Enquire
5K291C	LR079603	BRACKET - EXHAUST PIPE MOUNTING	LR079603 BRACKET - EXHAUST PIPE MOUNTING From: GH139740	-	1	Enquire
6N081	LR136723	BRACKET - EXHAUST PIPE MOUNTING	LR136723 BRACKET - EXHAUST PIPE MOUNTING Exhaust pipe / From: JH326289	-	1	Enquire
9H334A	LR092773	PIPE - EXHAUST PRESSURE	LR092773 PIPE - EXHAUST PRESSURE Exhaust Gas Pressure / From: GH000001 / To: JH326288	-	1	Enquire
9H334B	LR136720	PIPE - EXHAUST PRESSURE	LR136720 PIPE - EXHAUST PRESSURE Exhaust Gas Pressure, Inlet / From: JH326289	-	1	Enquire
9H334C	LR136722	PIPE - EXHAUST PRESSURE	LR136722 PIPE - EXHAUST PRESSURE Exhaust Gas Pressure, Outlet / From: JH326289	-	1	Enquire
