Rear Seat Frame (With 65/35 Split Fold Rear Seat) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Rear Seat Frame (With 65/35 Split Fold Rear Seat) ((V) FROMAA000001)

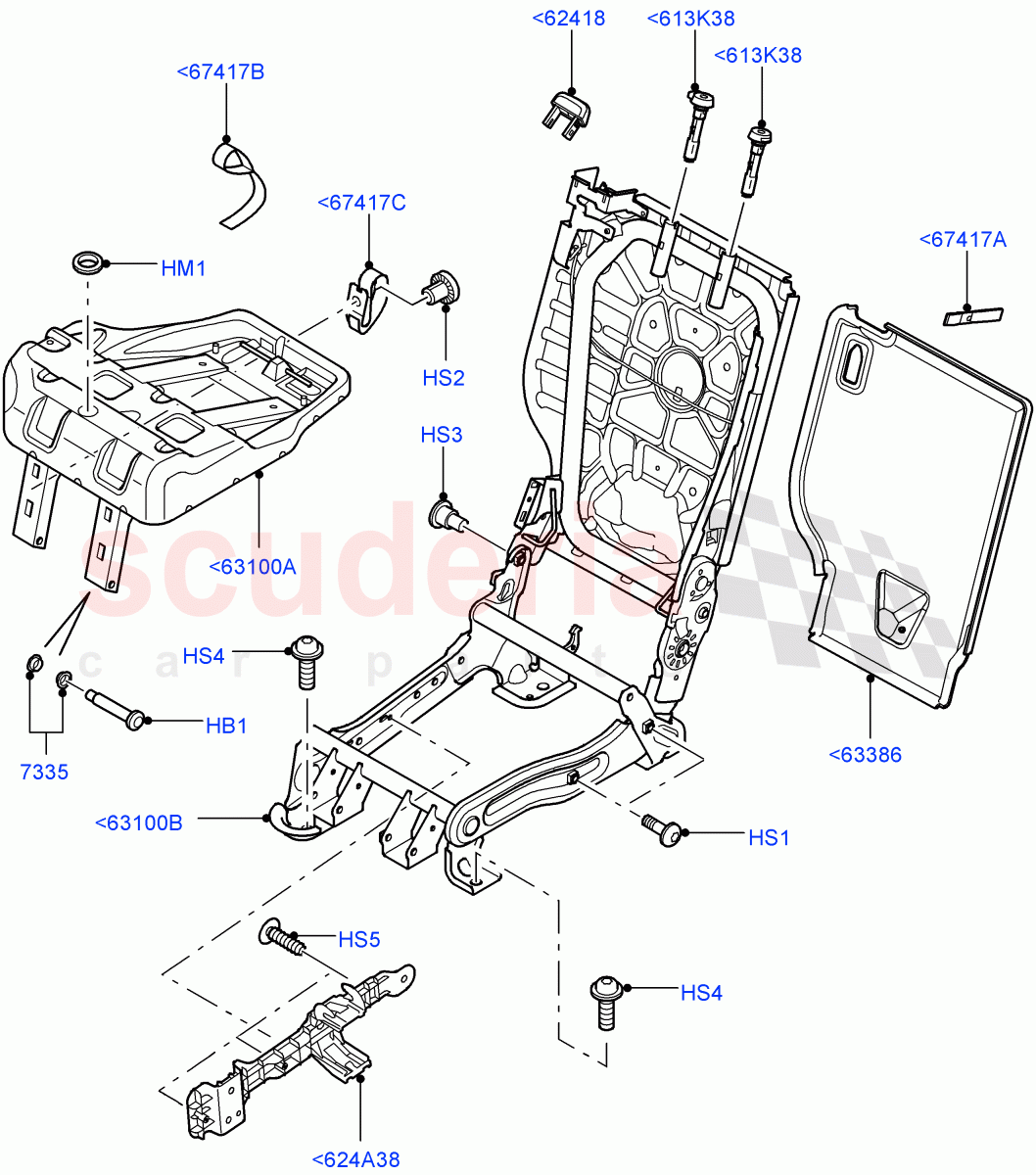

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYA000020	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500270	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500280	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500150	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HZT500030	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXG500290PVJ	HANDLE - SEAT BACK ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ERG500021PVJ	COVER - REAR SEAT BRACKET	Enquire	To Order
	LR008665	COVER - REAR SEAT BRACKET	Enquire	To Order
	LR021535	COVER - REAR SEAT BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HJQ500180PVJ	SLEEVE - HEADREST GUIDE	Enquire	To Order
	HJQ500190PVJ	SLEEVE - HEADREST GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YWU500090	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HTG500280	FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HTA500220	FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500180PVJ	STRAP - RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500110PVJ	STRAP - RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500240PVJ	STRAP - SECURING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<613K38	HJQ500180PVJ	SLEEVE - HEADREST GUIDE	HJQ500180PVJ SLEEVE - HEADREST GUIDE Non Locking / From: AA000001	-	1	Enquire
<613K38	HJQ500190PVJ	SLEEVE - HEADREST GUIDE	HJQ500190PVJ SLEEVE - HEADREST GUIDE Locking Type / From: AA000001	-	1	Enquire
<624A38	YWU500090	BRACKET	YWU500090 BRACKET ECU / From: AA000001	-	1	Enquire
<62418	HXG500290PVJ	HANDLE - SEAT BACK ADJUSTING	HXG500290PVJ HANDLE - SEAT BACK ADJUSTING From: AA000001	-	1	Enquire
<63100A	HTG500280	FRAME	HTG500280 FRAME Small / From: AA000001	-	1	Enquire
<63100B	HTA500220	FRAME	HTA500220 FRAME Small / From: AA000001	-	1	Enquire
<63386	ERG500021PVJ	COVER - REAR SEAT BRACKET	ERG500021PVJ COVER - REAR SEAT BRACKET Int Ebony Carpet / For Seat Back, Small / From: AA000001 / To: AA547164	-	1	Enquire
<63386	LR008665	COVER - REAR SEAT BRACKET	LR008665 COVER - REAR SEAT BRACKET Interior Nutmeg Carpet - LR / For Seat Back, Small / From: AA000001 / To: AA547164	-	1	Enquire
<63386	LR021535	COVER - REAR SEAT BRACKET	LR021535 COVER - REAR SEAT BRACKET Int Ebony Carpet / For Seat Back, Small / From: AA547165	-	1	Enquire
<63386	LR021536	COVER - REAR SEAT BRACKET	LR021536 COVER - REAR SEAT BRACKET Interior Nutmeg Carpet - LR / For Seat Back, Small / From: AA547165	-	1	Enquire
<67417A	HPH500180PVJ	STRAP - RELEASE	HPH500180PVJ STRAP - RELEASE From: AA000001	-	1	Enquire
<67417B	HPH500110PVJ	STRAP - RELEASE	HPH500110PVJ STRAP - RELEASE From: AA000001	-	1	Enquire
<67417C	HPH500240PVJ	STRAP - SECURING	HPH500240PVJ STRAP - SECURING From: AA000001	-	1	Enquire
HB1	HYG500160	BOLT	HYG500160 BOLT M10, Torx / From: AA000001	-	2	Enquire
HM1	HYA000020	GROMMET	HYA000020 GROMMET Grommet / From: AA000001	-	1	Enquire
HS1	HYG500270	BOLT	HYG500270 BOLT M10 X 25MM, Torx / From: AA000001	-	2	Enquire
HS2	HYG500280	SCREW	HYG500280 SCREW M8, Torx / From: AA000001	-	1	Enquire
HS3	HYG500380	SCREW	HYG500380 SCREW M10 / From: AA000001	-	1	Enquire
HS4	HYP500370	SCREW	HYP500370 SCREW M10 X 1.5, Torx / From: AA000001	-	4	Enquire
HS5	HYP500150	SCREW	HYP500150 SCREW 16MM, Torx / From: AA000001	-	3	Enquire
7335	HZT500030	BUSH	HZT500030 BUSH From: AA000001	-	4	Enquire
