Front Seat Back ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Front Seat Back ((V) FROMAA000001)

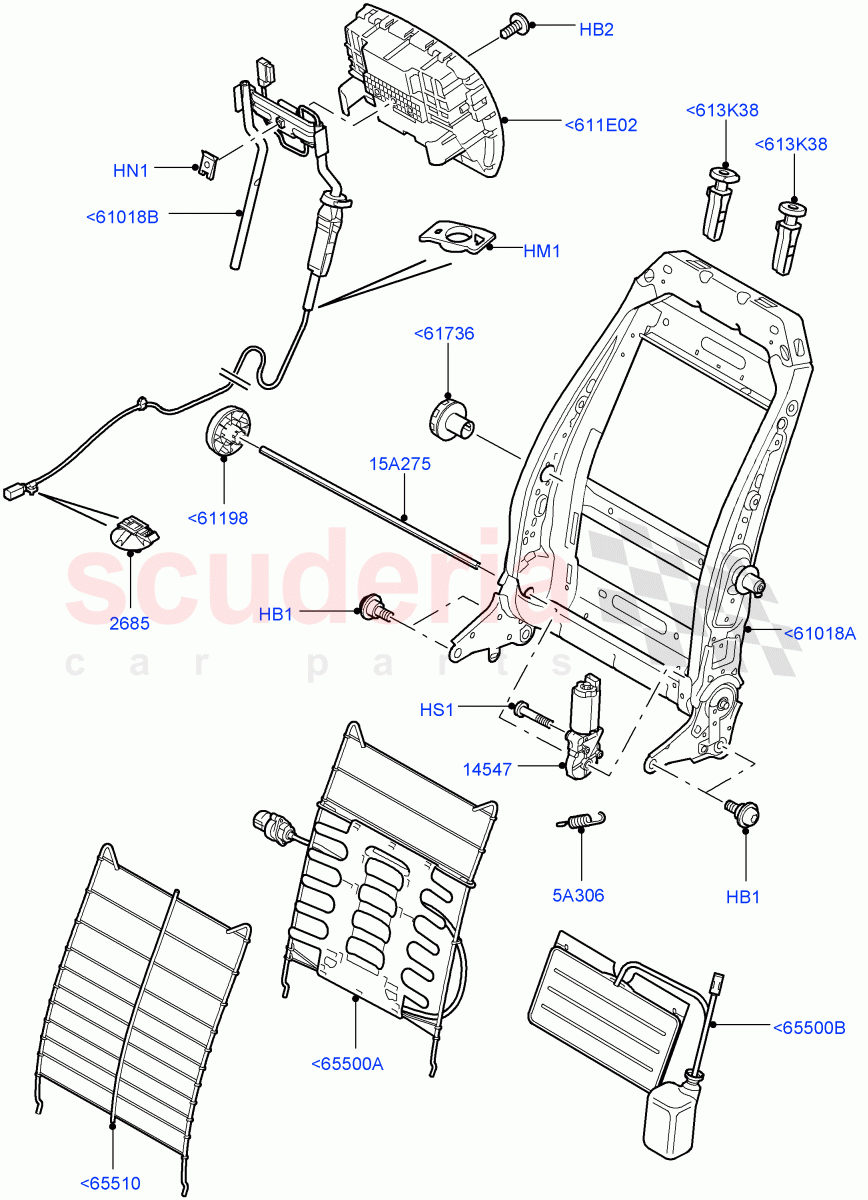

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYG500050	BOLT - SHOULDERED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500260	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027984	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYH500130	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500120	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019989	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HHL500100	MOTOR - SEAT ADJUSTER	Enquire	To Order
	HHL500010	MOTOR - SEAT ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021429	RETAINER - SPRING	Enquire	To Order
	HGF500030	RETAINER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HJN500021PVJ	HANDLE - SEAT BACK ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HJN500012PVJ	HANDLE - SEAT ADJUST	Enquire	To Order
	HJN500012NUG	HANDLE - SEAT ADJUST	Enquire	To Order
	LR016508	HANDLE - SEAT ADJUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017005	SUPPORT - FRONT SEAT SQUAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HFA500400	FRAME AND SPRING ASSY - SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013702	FRAME AND SPRING - SEAT BACK	Enquire	To Order
	HFA500660	FRAME	Enquire	To Order
	HFA500670	FRAME	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR020057	FRAME - HEADREST	Enquire	To Order
	LR020056	FRAME - HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HKK500020	HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HJQ500110PVJ	SLEEVE - HEADREST GUIDE	Enquire	To Order
	HJQ500120PVJ	SLEEVE - HEADREST GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HHC500022	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	HHC500032	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR032258	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013703	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR013704	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR031684	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<611E02	HKK500020	HOUSING	HKK500020 HOUSING With Provision For DVD Screen / From: AA000001	-	2	Enquire
<613K38	HJQ500110PVJ	SLEEVE - HEADREST GUIDE	HJQ500110PVJ SLEEVE - HEADREST GUIDE Non Locking / From: AA000001	-	2	Enquire
<613K38	HJQ500120PVJ	SLEEVE - HEADREST GUIDE	HJQ500120PVJ SLEEVE - HEADREST GUIDE Locking Type / From: AA000001	-	2	Enquire
<61018A	LR013702	FRAME AND SPRING - SEAT BACK	LR013702 FRAME AND SPRING - SEAT BACK (+)"CDN/MEX/USA", Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory / LH / From: AA000001	-	1	Enquire
<61018A	HFA500660	FRAME	HFA500660 FRAME (-)"CDN/MEX/USA", Electric Front Seat Adj Non-Memory, Less Drvs Articulated Seat Bolster / RH / From: AA000001 / To: BA999999	-	1	Enquire
<61018A	HFA500670	FRAME	HFA500670 FRAME (-)"CDN/MEX/USA", Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory / LH / From: AA000001 / To: BA999999	-	1	Enquire
<61018A	HFA501350	FRAME	HFA501350 FRAME Manual Front Seat Adj Driver & Pass / LH / From: AA000001	-	1	Enquire
<61018A	HFA501340	FRAME	HFA501340 FRAME Manual Front Seat Adj Driver & Pass / RH / From: AA000001	-	1	Enquire
<61018A	LR013358	FRAME - SEAT	LR013358 FRAME - SEAT (-)"CDN/MEX/USA", Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory, RHD / RH / From: AA000001	-	1	Enquire
<61018A	LR013701	FRAME AND SPRING - SEAT BACK	LR013701 FRAME AND SPRING - SEAT BACK (-)"CDN/MEX/USA", Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory, LHD / LH / From: AA000001	-	1	Enquire
<61018A	LR032261	FRAME - SEAT	LR032261 FRAME - SEAT (-)"CDN/MEX/USA", Electric Front Seat Adj Drv Memory, Less Drvs Articulated Seat Bolster / RH / From: CA000001	-	1	Enquire
<61018A	LR032263	FRAME - SEAT	LR032263 FRAME - SEAT (-)"CDN/MEX/USA", Electric Front Seat Adj Drv Memory, Less Drvs Articulated Seat Bolster / LH / From: CA000001	-	1	Enquire
<61018B	LR020057	FRAME - HEADREST	LR020057 FRAME - HEADREST Almond, With Provision For DVD Screen / From: AA000001 / To: BA596846	-	2	Enquire
<61018B	LR020056	FRAME - HEADREST	LR020056 FRAME - HEADREST Ivory, With Provision For DVD Screen / From: BA000001 / To: BA596872	-	2	Enquire
<61198	HJN500021PVJ	HANDLE - SEAT BACK ADJUSTING	HJN500021PVJ HANDLE - SEAT BACK ADJUSTING Manual Front Seat Adj Driver & Pass / From: AA000001	-	1	Enquire
<61736	HJN500012PVJ	HANDLE - SEAT ADJUST	HJN500012PVJ HANDLE - SEAT ADJUST Ebony Black/Ebony Black Interior / Lumbar Adjustment, Manual / From: AA000001	-	2	Enquire
<61736	HJN500012NUG	HANDLE - SEAT ADJUST	HJN500012NUG HANDLE - SEAT ADJUST Ivory / Lumbar Adjustment, Manual / From: BA577539	-	1	Enquire
<61736	LR016508	HANDLE - SEAT ADJUST	LR016508 HANDLE - SEAT ADJUST Arabica, Luxury Limited Edition / Lumbar Adjustment, Manual / From: CA000001	-	2	Enquire
<65500A	HHC500022	SUPPORT - SEAT BACK - LUMBAR	HHC500022 SUPPORT - SEAT BACK - LUMBAR RH, Manual Lumbar / From: AA000001 / To: CA629718	-	1	Enquire
<65500A	HHC500032	SUPPORT - SEAT BACK - LUMBAR	HHC500032 SUPPORT - SEAT BACK - LUMBAR LH, Manual Lumbar / From: AA000001 / To: CA629718	-	1	Enquire
<65500A	LR032258	SUPPORT - SEAT BACK - LUMBAR	LR032258 SUPPORT - SEAT BACK - LUMBAR RH, Manual Lumbar / From: CA629719	-	1	Enquire
<65500A	LR032259	SUPPORT - SEAT BACK - LUMBAR	LR032259 SUPPORT - SEAT BACK - LUMBAR LH, Manual Lumbar / From: CA629719	-	1	Enquire
<65500B	LR013703	SUPPORT - SEAT BACK - LUMBAR	LR013703 SUPPORT - SEAT BACK - LUMBAR Less Drvs Articulated Seat Bolster / With Electrically Operated Lumbar Support / From: AA000001	-	1	Enquire
<65500B	LR013704	SUPPORT - SEAT BACK - LUMBAR	LR013704 SUPPORT - SEAT BACK - LUMBAR Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory / With Electrically Operated Lumbar Support / From: AA000001 / To: BA582115	-	1	Enquire
<65500B	LR031684	SUPPORT - SEAT BACK - LUMBAR	LR031684 SUPPORT - SEAT BACK - LUMBAR Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory / With Electrically Operated Lumbar Support / From: BA582116 / To: DA673908	-	1	Enquire
<65500B	LR053787	SUPPORT - SEAT BACK - LUMBAR	LR053787 SUPPORT - SEAT BACK - LUMBAR Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory / With Electrically Operated Lumbar Support / From: DA673909	-	1	Enquire
<65510	LR017005	SUPPORT - FRONT SEAT SQUAB	LR017005 SUPPORT - FRONT SEAT SQUAB From: AA000001	-	1	Enquire
HB1	HYG500050	BOLT - SHOULDERED	HYG500050 BOLT - SHOULDERED M8 x 12MM / From: AA000001	-	8	Enquire
HB2	HYG500260	BOLT	HYG500260 BOLT M6 x 19MM, Shouldered / From: AA000001	-	2	Enquire
HM1	LR027984	GROMMET	LR027984 GROMMET With Provision For DVD Screen / Seat Back / From: BA000001	-	2	Enquire
HN1	HYH500130	NUT	HYH500130 NUT Clamp, M6 / From: AA000001	-	2	Enquire
HS1	HYG500120	SCREW	HYG500120 SCREW M6, Motor - Seat Recline / From: AA000001	-	2	Enquire
5A306	LR021429	RETAINER - SPRING	LR021429 RETAINER - SPRING Upper / From: AA000001	-	4	Enquire
5A306	HGF500030	RETAINER - SPRING	HGF500030 RETAINER - SPRING Middle / From: AA000001	-	4	Enquire
15A275	HFA500400	FRAME AND SPRING ASSY - SEAT BACK	HFA500400 FRAME AND SPRING ASSY - SEAT BACK From: AA000001	-	1	Enquire
2685	LR019989	CLIP	LR019989 CLIP With Provision For DVD Screen / From: AA000001	-	2	Enquire
14547	HHL500100	MOTOR - SEAT ADJUSTER	HHL500100 MOTOR - SEAT ADJUSTER Electric Front Seat Adj Drv Memory / With Memory / From: AA000001	-	1	Enquire
14547	HHL500010	MOTOR - SEAT ADJUSTER	HHL500010 MOTOR - SEAT ADJUSTER Electric Front Seat Adj Non-Memory / Less Memory / From: AA000001	-	1	Enquire
