Parking Distance Control (With Rear Parking Aid) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Parking Distance Control (With Rear Parking Aid) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000385 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR050919 BRACKET - ELECTRICAL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
LR011193 CAP - PARKING SENSOR Enquire To Order
LR015497 CAP - PARKING SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR038084 SENSOR - PARKING AID SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR038533 SENSOR - PARKING AID SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR024299 SENSOR - PARKING AID SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR050920 MODULE - PARKING AID SYSTEM Enquire To Order
LR071362 MODULE - PARKING AID SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR050921 MODULE - PARKING AID SYSTEM Enquire To Order
LR064695 MODULE - PARKING AID SYSTEM Enquire To Order
View All

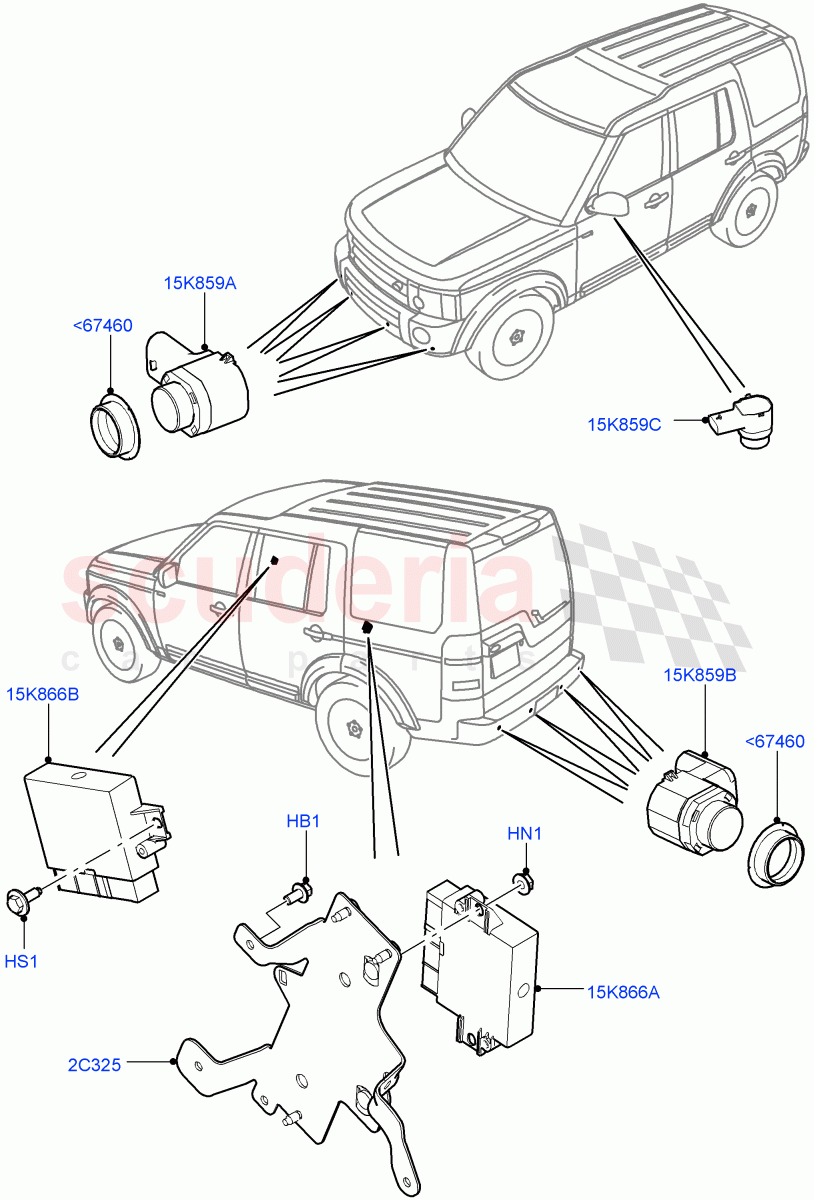

Parking Distance Control (With Rear Parking Aid) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<67460 LR011193
CAP - PARKING SENSOR
Black Cap / From: EA000001 		- 8 Enquire
<67460 LR015497
CAP - PARKING SENSOR
Transparent / From: EA000001 		- 8 Enquire
HB1 LR000385
BOLT
Hexagonal Head, M6 x 12MM / From: EA000001 		- 2 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001 		- 2 Enquire
HS1 FYP500550
SCREW
Water Wading Equipment - Standard / Hexagonal Head, M6 X 20MM / From: EA000001 		- 2 Enquire
2C325 LR050919
BRACKET - ELECTRICAL UNIT
From: EA000001 		- 1 Enquire
15K859A LR038084
SENSOR - PARKING AID SYSTEM
With Front Parking Aid / From: EA000001 		- 4 Enquire
15K859B LR038533
SENSOR - PARKING AID SYSTEM
With Rear Parking Aid / From: EA000001 		- 4 Enquire
15K859C LR024299
SENSOR - PARKING AID SYSTEM
Water Wading Equipment - Standard / RH And LH, Side View Mirror, With Cap / From: EA000001 		- 2 Enquire
15K866A LR050920
MODULE - PARKING AID SYSTEM
From: EA000001 / To: FA746950 		- 1 Enquire
15K866A LR071362
MODULE - PARKING AID SYSTEM
From: FA746951 		- 1 Enquire
15K866B LR050921
MODULE - PARKING AID SYSTEM
Water Wading Equipment - Standard / From: EA000001 / To: EA709728 		- 1 Enquire
15K866B LR064695
MODULE - PARKING AID SYSTEM
Water Wading Equipment - Standard / From: EA709729 		- 1 Enquire
