Family Entertainment System (Rear Seat) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Family Entertainment System (Rear Seat) ((V) FROMEA000001)

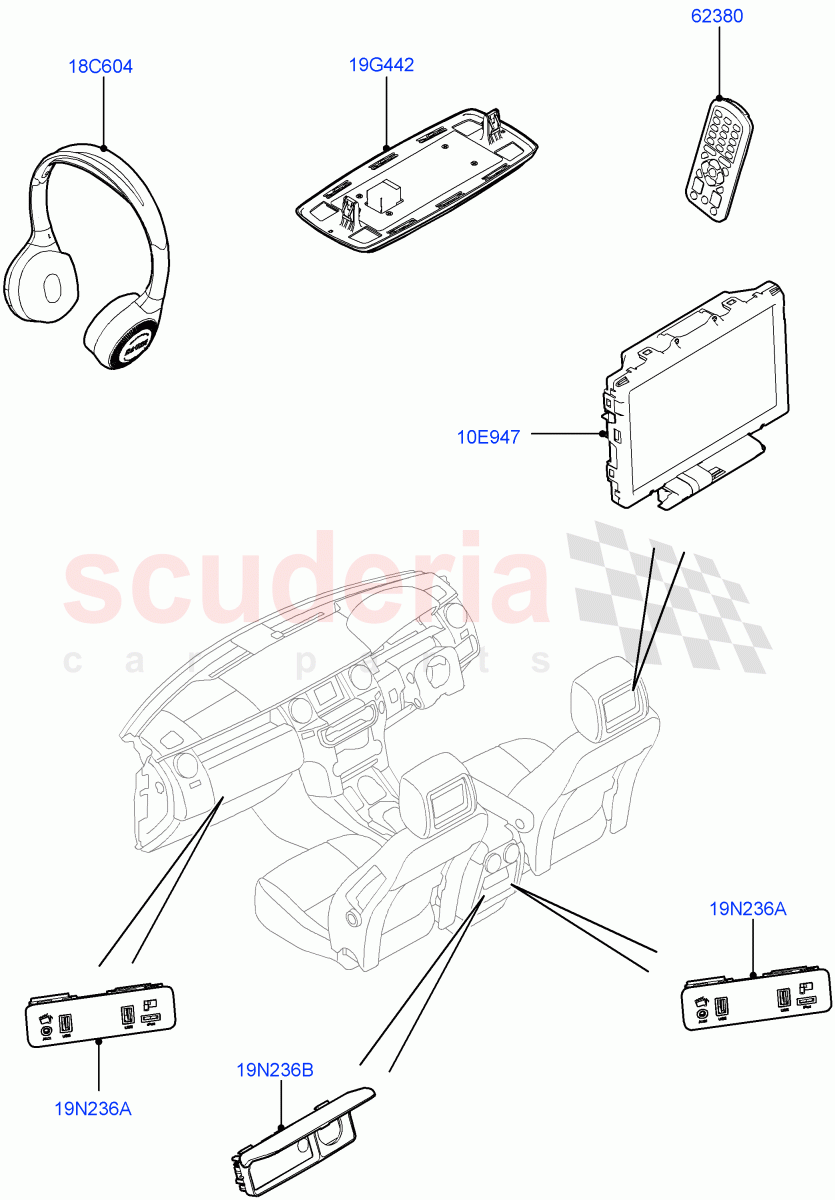

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR048033	REMOTE CONTROL - DVD	Enquire	To Order
	LR048034	REMOTE CONTROL - DVD	Enquire	To Order
	LR066435	REMOTE CONTROL - DVD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR046029	SCREEN - DVD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057982	HEADPHONE - WIRELESS	Enquire	To Order
	LR048036	HEADPHONE	Enquire	To Order
	LR068896	HEADPHONE - WIRELESS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR054873	TRANSMITTER - WIRELESS HEADPHONES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051020	SOCKET - INTERFACE AUDIO SYSTEM	Enquire	To Order
	LR051021	SOCKET - INTERFACE AUDIO SYSTEM	Enquire	To Order
	LR062813	UNIT - DISPLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051022	SOCKET - INTERFACE AUDIO SYSTEM	Enquire	To Order
	LR051023	SOCKET - INTERFACE AUDIO SYSTEM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10E947	LR046029	SCREEN - DVD	LR046029 SCREEN - DVD With Provision For DVD Screen / 8" / From: DA664622	-	2	Enquire
18C604	LR057982	HEADPHONE - WIRELESS	LR057982 HEADPHONE - WIRELESS With Wireless Headphones / From: EA702698 / To: EA731037	-	2	Enquire
18C604	LR048036	HEADPHONE	LR048036 HEADPHONE With Wireless Headphones / From: EA000001 / To: EA702697	-	2	Enquire
18C604	LR068896	HEADPHONE - WIRELESS	LR068896 HEADPHONE - WIRELESS With Wireless Headphones / From: EA731038 / To: FA999999	-	2	Enquire
18C604	LR096499	HEADPHONE - WIRELESS	LR096499 HEADPHONE - WIRELESS From: GA000001	-	2	Enquire
19G442	LR054873	TRANSMITTER - WIRELESS HEADPHONES	LR054873 TRANSMITTER - WIRELESS HEADPHONES With Provision For DVD Screen / From: DA000001	-	1	Enquire
19N236A	LR051020	SOCKET - INTERFACE AUDIO SYSTEM	LR051020 SOCKET - INTERFACE AUDIO SYSTEM Hi Line Audio System - 600 W, Less Cell Phone Interface System, With A/V Jack And USB / From: EA000001	-	1	Enquire
19N236A	LR051021	SOCKET - INTERFACE AUDIO SYSTEM	LR051021 SOCKET - INTERFACE AUDIO SYSTEM Less A/V Jack, Standard Audio (Base) / From: EA000001	-	1	Enquire
19N236A	LR062813	UNIT - DISPLAY	LR062813 UNIT - DISPLAY Phone Connector View, With A/V Jack And USB / From: FA000001	-	1	Enquire
19N236B	LR051022	SOCKET - INTERFACE AUDIO SYSTEM	LR051022 SOCKET - INTERFACE AUDIO SYSTEM With Provision For DVD Screen / From: EA000001	-	1	Enquire
19N236B	LR051023	SOCKET - INTERFACE AUDIO SYSTEM	LR051023 SOCKET - INTERFACE AUDIO SYSTEM Less DVD Screen / From: EA000001	-	1	Enquire
62380	LR048033	REMOTE CONTROL - DVD	LR048033 REMOTE CONTROL - DVD RSE Remote Control - ROW / From: EA000001 / To: EA731010	-	1	Enquire
62380	LR048034	REMOTE CONTROL - DVD	LR048034 REMOTE CONTROL - DVD RSE Remote Control - Japan/Brazil / From: EA000001 / To: FA746959	-	1	Enquire
62380	LR066435	REMOTE CONTROL - DVD	LR066435 REMOTE CONTROL - DVD RSE Remote Control - ROW / From: EA731011	-	1	Enquire
62380	LR066437	REMOTE CONTROL - DVD	LR066437 REMOTE CONTROL - DVD RSE Remote Control - Japan/Brazil / From: FA746960	-	1	Enquire
