Supply & Return Hoses - Power Strg (3.0L Dohc Gdi Sc V6 Petrol, 5.0L Ohc Sgdi Na V8 Petrol - Aj133)...

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Supply & Return Hoses - Power Strg (3.0L DOHC GDI SC V6 PETROL, 5.0L OHC SGDI NA V8 Petrol - AJ133)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126M BOLT Enquire To Order
Photo Part No Description Price (each) Stock
QFM100041 BOLT - BANJO Enquire To Order
Photo Part No Description Price (each) Stock
QGM000030 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
QGM000020 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
QGM000010 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
LR009346 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
FS108166M SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR020213 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR013796 HOSE - RESERVOIR TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR020210 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR013828 HOSE Enquire To Order
LR013833 HOSE Enquire To Order
LR057233 HOSE - POWER STEERING PRESSURE Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
QEP500019 HOSE Enquire To Order
QEP500333 HOSE Enquire To Order
LR057263 HOSE - POWER STEERING PRESSURE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013804 COIL - COOLING Enquire To Order
LR016198 HOSE - COOLER TO RESERVOIR Enquire To Order
View All

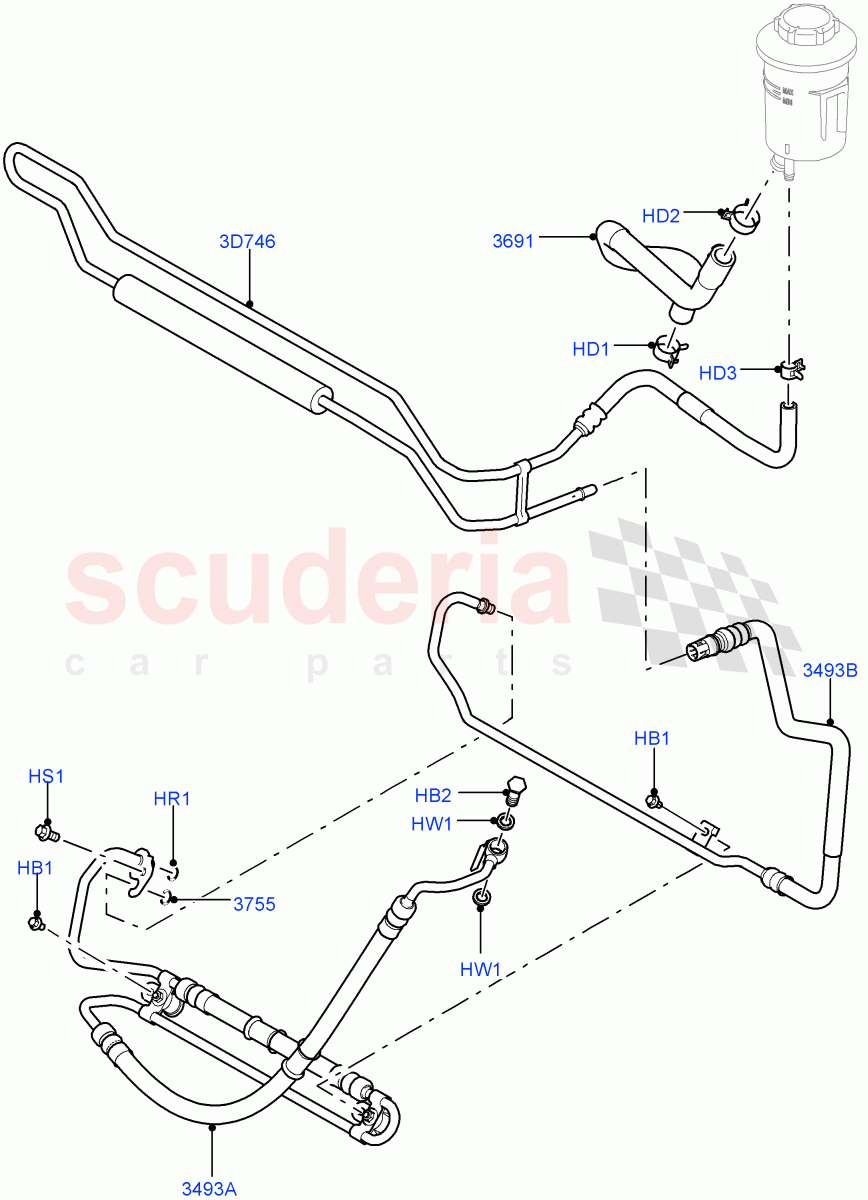

Supply & Return Hoses - Power Strg (3.0L DOHC GDI SC V6 PETROL, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126M
BOLT
RHD / Hexagonal Head, M6 x 12MM / From: AA000001 		- 2 Enquire
HB2 QFM100041
BOLT - BANJO
Banjo Bolt / From: AA000001 		- 1 Enquire
HD1 QGM000030
CLIP
Hose / From: AA000001 		- 1 Enquire
HD2 QGM000020
CLIP
Hose / From: AA000001 		- 1 Enquire
HD3 QGM000010
CLAMP
Hose / From: AA000001 		- 1 Enquire
HR1 LR009346
O-RING 		- 1 Enquire
HS1 FS108166M
SCREW
M8 X 16MM / From: AA000001 		- 1 Enquire
HW1 LR020213
WASHER
16MM / From: AA000001 		- 2 Enquire
3D746 LR013804
COIL - COOLING
5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001 		- 1 Enquire
3D746 LR016198
HOSE - COOLER TO RESERVOIR
3.0L DOHC GDI SC V6 PETROL / From: EA000001 		- 1 Enquire
3493A LR013828
HOSE
RHD / From: AA000001 / To: DA699649 		- 1 Enquire
3493A LR013833
HOSE
LHD / From: AA000001 / To: DA699649 		- 1 Enquire
3493A LR057233
HOSE - POWER STEERING PRESSURE
RHD / From: DA699650 / To: EA721348 		- 1 Enquire
3493A LR057238
HOSE - POWER STEERING PRESSURE
LHD / From: DA699650 / To: EA721348 		- 1 Enquire
3493A LR060992
HOSE - POWER STEERING PRESSURE
RHD / From: EA721349 		- 1 Enquire
3493A LR060993
HOSE - POWER STEERING PRESSURE
LHD / From: EA721349 		- 1 Enquire
3493B QEP500019
HOSE
RHD / From: AA000001 / To: DA699649 		- 1 Enquire
3493B QEP500333
HOSE
LHD / From: AA000001 / To: DA699649 		- 1 Enquire
3493B LR057263
HOSE - POWER STEERING PRESSURE
RHD / From: DA699650 		- 1 Enquire
3493B LR057262
HOSE - POWER STEERING PRESSURE
LHD / From: DA699650 		- 1 Enquire
3691 LR013796
HOSE - RESERVOIR TO PUMP
From: AA000001 		- 1 Enquire
3755 LR020210
O-RING
6MM / From: AA000001 		- 1 Enquire
