Steering Gear (LHD) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Steering Gear (LHD) ((V) FROMAA000001)

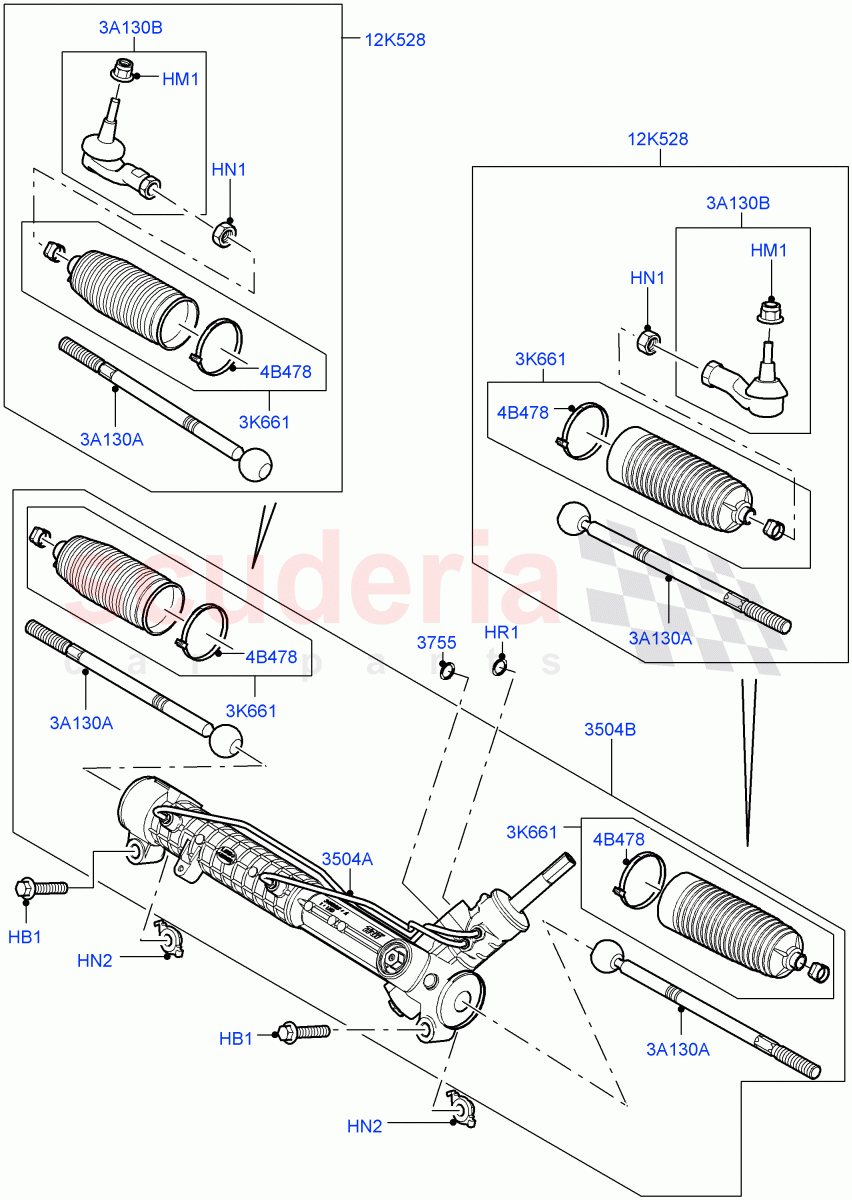

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FC114136	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QYH500160	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010520	NUT - ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017002	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009346	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020210	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080151	GEAR - STEERING	Enquire	To Order
	LR080153	GEAR - STEERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013786	RACK - STEERING GEAR	Enquire	To Order
	LR025794	RACK - STEERING GEAR	Enquire	To Order
	LR054839	RACK - STEERING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QFW500010	BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032371	CLAMP - BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010667	KIT - STEERING GEAR TIE ROD REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QFK500010	ROD - TIE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010672	JOINT - BALL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FC114136	BOLT	FC114136 BOLT M14 X 1.5 X 65MM / From: AA000001	-	2	Enquire
HM1	QYH500160	NUT - FLANGED	QYH500160 NUT - FLANGED M14, Vehicle With M14 Outer Ball Joint / From: AA000001	-	2	Enquire
HN1	LR010520	NUT - ADJUSTING	LR010520 NUT - ADJUSTING Locking / From: AA000001	-	2	Enquire
HN2	LR017002	NUT	LR017002 NUT M14 / From: AA000001	-	2	Enquire
HR1	LR009346	O-RING	LR009346 O-RING	-	1	Enquire
3A130A	QFK500010	ROD - TIE	QFK500010 ROD - TIE Inner, M16 / From: AA000001	-	2	Enquire
3A130B	LR010672	JOINT - BALL	LR010672 JOINT - BALL Includes attaching nut, Outer, Vehicle With M14 Outer Ball Joint / From: AA000001	-	2	Enquire
3K661	QFW500010	BOOT	QFW500010 BOOT From: AA000001	-	1	Enquire
4B478	LR032371	CLAMP - BOOT	LR032371 CLAMP - BOOT BIG / From: AA000001	-	2	Enquire
12K528	LR010667	KIT - STEERING GEAR TIE ROD REPAIR	LR010667 KIT - STEERING GEAR TIE ROD REPAIR M16, Vehicle With M14 Outer Ball Joint / From: AA000001	-	1	Enquire
3504A	LR080151	GEAR - STEERING	LR080151 GEAR - STEERING New Part-Please Check For Reman Version / From: GA820314	-	1	Enquire
3504A	LR080153	GEAR - STEERING	LR080153 GEAR - STEERING Remanufactured Part / From: AA000001	-	1	Enquire
3504B	LR013786	RACK - STEERING GEAR	LR013786 RACK - STEERING GEAR LHD / New Part-Please Check For Reman Version / From: AA000001 / To: AA999999	-	1	Enquire
3504B	LR025794	RACK - STEERING GEAR	LR025794 RACK - STEERING GEAR LHD / New Part-Please Check For Reman Version / From: BA000001 / To: EA702246	-	1	Enquire
3504B	LR054839	RACK - STEERING GEAR	LR054839 RACK - STEERING GEAR LHD / New Part-Please Check For Reman Version / From: EA702247 / To: GA820313	-	1	Enquire
3755	LR020210	O-RING	LR020210 O-RING 6MM / From: AA000001	-	1	Enquire
