Heater Hoses (Front) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Heater Hoses (Front) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
AB608068 Screw Enquire To Order
LR020269 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR052195 BRACKET - HEATER HOSE Enquire To Order
LR018781 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR013837 HOSE - HEATER WATER Enquire To Order
LR021558 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR013677 HOSE - VENT Enquire To Order
LR075323 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR013676 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR013675 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR013667 HOSE - HEATER WATER Enquire To Order
LR021657 HOSE - HEATER WATER Enquire To Order
LR050883 TUBE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR013669 HOSE Enquire To Order
LR048425 HOSE - HEATER WATER Enquire To Order
LR050881 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR013668 HOSE Enquire To Order
LR048424 HOSE - HEATER WATER Enquire To Order
LR050882 HOSE - WATER Enquire To Order
View All

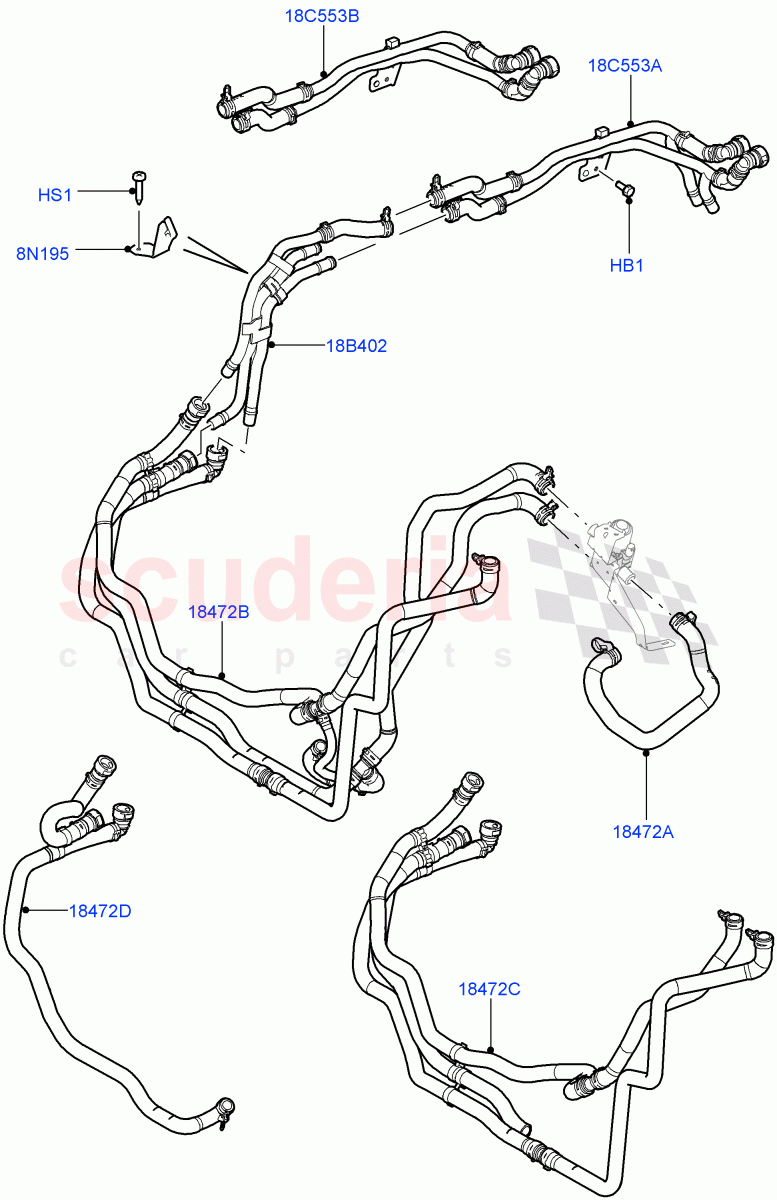

Heater Hoses (Front) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001 		- 1 Enquire
HS1 AB608068
Screw
4.2 X 19MM / From: AA000001 / To: AA523459 		- 1 Enquire
HS1 LR020269
SCREW
4.2 X 19MM / From: AA523460 		- 1 Enquire
8N195 LR052195
BRACKET - HEATER HOSE
To Heater Hoses / From: EA000001 		- 1 Enquire
8N195 LR018781
BRACKET
To Heater Hoses / From: AA000001 / To: DA999999 		- 1 Enquire
18B402 LR013667
HOSE - HEATER WATER
From EGR Cooler To Heater Inlet, To Heater Hoses / From: AA000001 / To: AA529153 		- 1 Enquire
18B402 LR021657
HOSE - HEATER WATER
From EGR Cooler To Heater Inlet, To Heater Hoses / From: AA529154 / To: DA999999 		- 1 Enquire
18B402 LR050883
TUBE - HEATER WATER
From EGR Cooler To Heater Inlet, To Heater Hoses / From: EA000001 		- 1 Enquire
18C553A LR013669
HOSE
With Rear Seat Climate Control / To Heater Hoses, To Heater Matrix / From: AA000001 / To: DA684664 		- 1 Enquire
18C553A LR048425
HOSE - HEATER WATER
With Rear Seat Climate Control / To Heater Hoses, To Heater Matrix / From: DA684665 / To: DA999999 		- 1 Enquire
18C553A LR050881
HOSE - WATER
With Rear Seat Climate Control / To Heater Hoses, To Heater Matrix / From: EA000001 		- 1 Enquire
18C553B LR013668
HOSE
Less Rear Seat Climate Control / To Heater Hoses, To Heater Matrix / From: AA000001 / To: DA681194 		- 1 Enquire
18C553B LR048424
HOSE - HEATER WATER
Less Rear Seat Climate Control / To Heater Hoses, To Heater Matrix / From: DA681195 / To: DA999999 		- 1 Enquire
18C553B LR050882
HOSE - WATER
Less Rear Seat Climate Control / To Heater Hoses, To Heater Matrix / From: EA000001 		- 1 Enquire
18472A LR013837
HOSE - HEATER WATER
Park Heating With Remote Control / Attaches To Heater Water Control Valve / From: AA000001 / To: AA531769 		- 1 Enquire
18472A LR021558
HOSE - HEATER WATER
Park Heating With Remote Control / Attaches To Heater Water Control Valve / From: AA531770 		- 1 Enquire
18472B LR013677
HOSE - VENT
Park Heating With Remote Control, With Fuel Fired Heater / Attaches To Heater Water Control Valve, To Heater Hoses / From: AA000001 / To: FA777399 		- 1 Enquire
18472B LR075323
HOSE - VENT
Park Heating With Remote Control, With Fuel Fired Heater / Attaches To Heater Water Control Valve, To Heater Hoses / From: FA777400 		- 1 Enquire
18472C LR013676
HOSE - VENT
Less Park Heating, With Fuel Fired Heater / To Fuel Fired Heater, To Heater Hoses / From: AA000001 		- 1 Enquire
18472D LR013675
HOSE - VENT
With Fresh Air Heater / To Heater Hoses / From: AA000001 		- 1 Enquire
