Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Air Conditioning System (Front) (3.0 V6 Diesel) ((V) FROMEA000001)

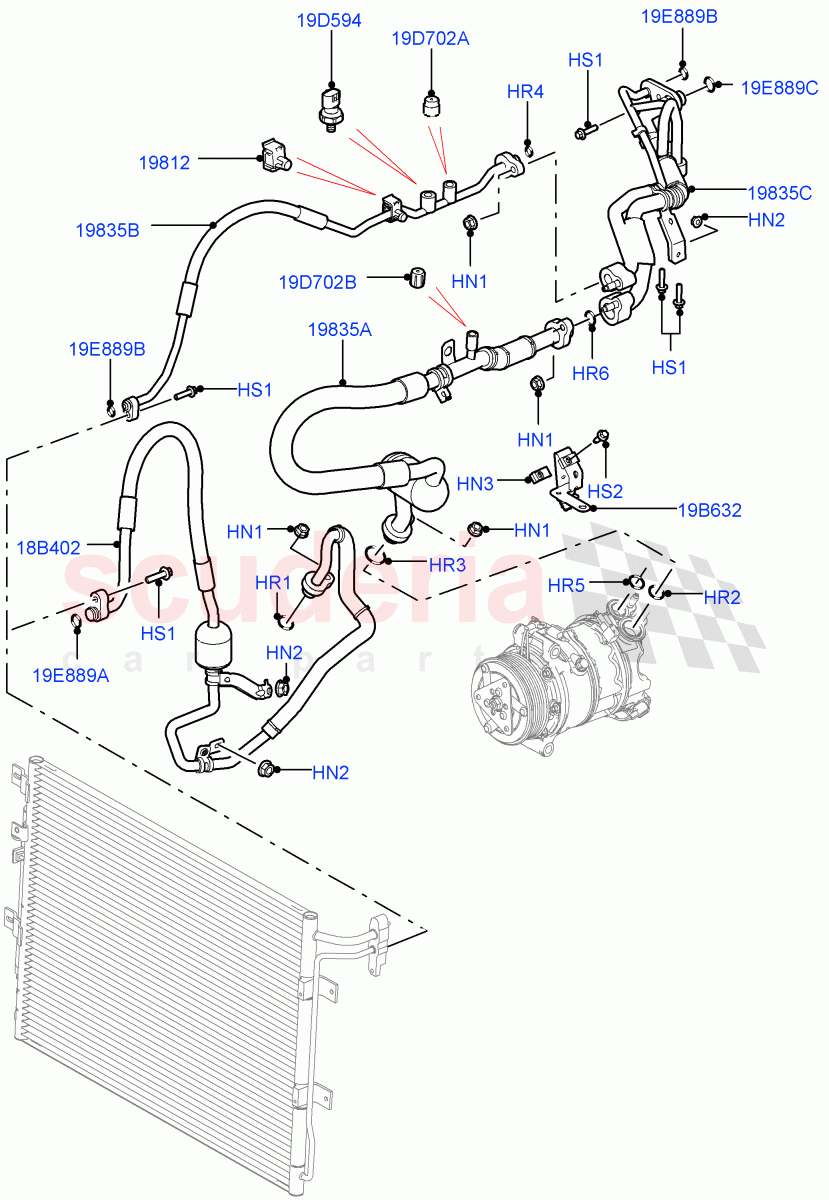

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $2.00 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
RYH500690 Nut Enquire To Order
Photo Part No Description Price (each) Stock
LR023116 O-RING $5.28 To Order
Photo Part No Description Price (each) Stock
LR001924 O-RING $7.50 IN STOCK
Photo Part No Description Price (each) Stock
LR002720 O-RING $4.69 To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING $3.17 To Order
Photo Part No Description Price (each) Stock
LR011180 O-RING $2.90 To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING $3.39 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
LR010849 BRACKET $7.67 To Order
Photo Part No Description Price (each) Stock
LR013861 HOSE - AIR CONDITIONING $253.40 To Order
Photo Part No Description Price (each) Stock
LR052191 TUBE - COMPRESSOR DELIVERY $188.36 To Order
Photo Part No Description Price (each) Stock
LR052194 HOSE - AIR CONDITIONING $174.67 To Order
Photo Part No Description Price (each) Stock
LR050912 TUBE- A/C EVAPORATOR INLET & OUTLET $256.09 IN STOCK
LR050913 TUBE- A/C EVAPORATOR INLET & OUTLET $129.11 To Order
Photo Part No Description Price (each) Stock
LR013851 CLIP $84.24 To Order
Photo Part No Description Price (each) Stock
JTE000010 SWITCH $97.68 To Order
Photo Part No Description Price (each) Stock
LR023245 CAP $22.50 To Order
Photo Part No Description Price (each) Stock
LR023246 CAP $22.50 To Order
Photo Part No Description Price (each) Stock
LR031797 O-RING $8.14 To Order
Photo Part No Description Price (each) Stock
LR092607 RING - SEALING $3.43 To Order
Photo Part No Description Price (each) Stock
LR092609 RING - SEALING $18.92 To Order
View All
Air Conditioning System (Front) (3.0 V6 Diesel) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: EA000001 		$2.00 4
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001
IN STOCK 		$1.45 3
HN3 RYH500690
Nut
U-Nut M6 X 0.8 - 4.0 / From: EA000001 		- 1 Enquire
HR1 LR023116
O-RING
11 x 2.5MM / From: EA000001 		$5.28 1
HR2 LR001924
O-RING
26.3 x 3mm, Compressor Inlet, Orange / From: EA000001
IN STOCK 		$7.50 1
HR3 LR002720
O-RING
16.25 X 2.5MM, Compressor Inlet / From: EA000001 		$4.69 1
HR4 LR054871
O-RING
10.82MM X 1.78MM / From: EA000001 		$3.17 2
HR5 LR011180
O-RING
21 X 3MM / From: EA000001 		$2.90 1
HR6 LR054870
O-RING
16.5 X 1.78MM, For Air Conditioning Hose / From: EA000001 		$3.39 2
HS1 FS106256
SCREW
M6 x 25MM / From: EA000001 		$0.42 3
HS2 RYG500190
SCREW
Hexagonal Head, M6 X 16MM / From: EA000001
IN STOCK 		$0.70 1
18B402 LR013861
HOSE - AIR CONDITIONING
Compressor To Condenser, Includes O-Rings / From: EA000001 		$253.40 1
19B632 LR013851
CLIP
From: EA000001 		$84.24 1
19D594 JTE000010
SWITCH
Pressure / From: EA000001 		$97.68 1
19D702A LR023245
CAP
From: EA000001 		$22.50 1
19D702B LR023246
CAP
From: EA000001 		$22.50 1
19E889A LR031797
O-RING
10.6 x 2.4MM / From: EA000001 		$8.14 2
19E889B LR092607
RING - SEALING
6.75 x 1.78MM / From: EA000001 		$3.43 3
19E889C LR092609
RING - SEALING
13.6 x 2.4mm / From: EA000001 		$18.92 1
19812 LR010849
BRACKET
From: EA000001 		$7.67 1
19835A LR052191
TUBE - COMPRESSOR DELIVERY
Air Conditioning Evaporator To Compressor, Includes O-Rings / From: EA000001 		$188.36 1
19835B LR052194
HOSE - AIR CONDITIONING
Condenser To Evaporator, Includes O-Rings, With Sensor / From: EA000001 		$174.67 1
19835C LR050912
TUBE- A/C EVAPORATOR INLET & OUTLET
With Rear Seat Climate Control / Includes O-Rings, To Evaporator / From: EA000001
IN STOCK 		$256.09 1
19835C LR050913
TUBE- A/C EVAPORATOR INLET & OUTLET
Less Rear Seat Climate Control / Includes O-Rings, To Evaporator / From: EA000001 		$129.11 1
